Teltonika BAT120 Uninterruptible Power Supply (UPS) ^^ 24W Power Supply with 2300mAh Capacity & Reverse Polarity Protection ^^ 930V DC Backup Module for Industrial Routers, Gateways & IoT Devices
- Reliable Power Backup Keeps compatible Teltonika network devices running for up to 6 hours during power outages, ensuring continuous connectivity for critical applications.
- Wide Input Voltage Range Supports 930 VDC input, making it suitable for a variety of industrial environments and DC-powered systems.
- Built-in Protection Features Includes reverse polarity and overvoltage protection, plus 3 A overcurrent protection, to safeguard connected equipment
- Compact & Durable Design Rugged aluminum housing with flexible mounting options (DIN rail, wall, or flat surface) ensures lasting performance in demanding settings.
- Wide Compatibility Works seamlessly with a range of Teltonika routers, gateways, and switches, providing dependable uninterrupted power for industrial IoT deployments.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

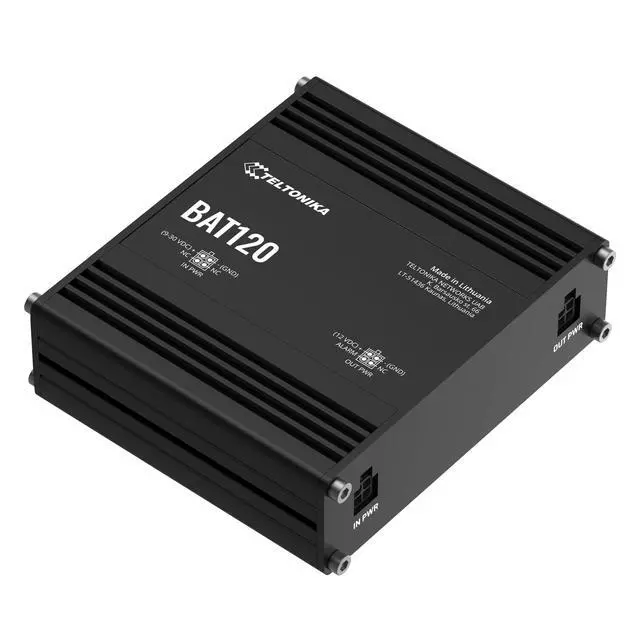

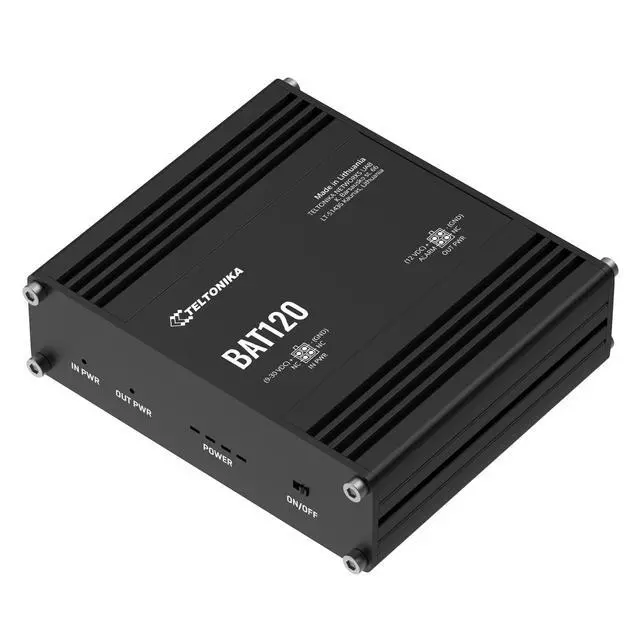

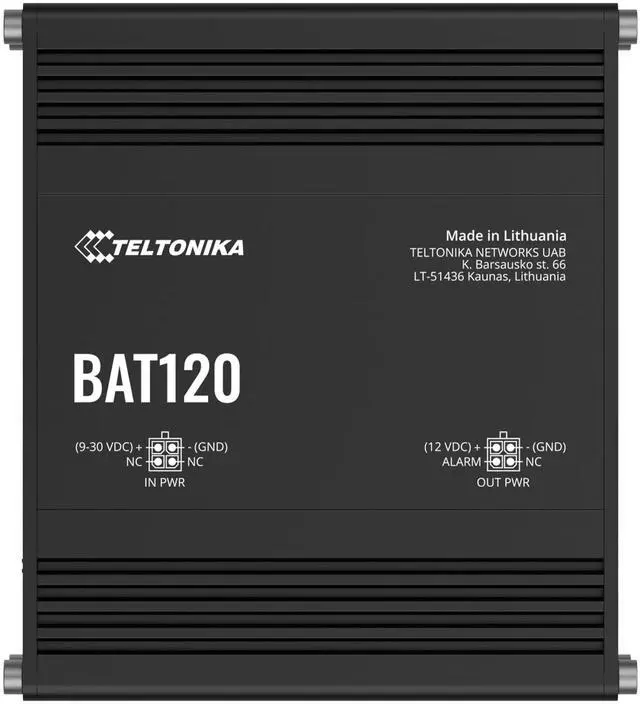

Teltonika BAT120000100 Model BAT120 Uninterrupted Power Supply; 24W US PSU 4-pin Connector; Overvoltage and Reverse Polarity Protection; Aluminum Housing; 2300 mAh Battery Capacity; For up to 6 hoursBAT120 is the rst uninterrupted power supply from Teltonika Networks. BAT120 is equipped with two 4-pin DC ports for power input and output. The input voltage ranges from 9V to 30V and output of 12VDC when operated from the battery. Acting as an uninterrupted power source, BAT120 provides enough power from two 18650 Li-Io cells to keep a compatible Teltonika Networks device working for up to 6 hours.
BAT120 has reverse and overvoltage protection for input and 3A overcurrent protection for output as safety featuresKey
Features: - 4-pin industrial DC power socket- Reverse polarity protection, Overvoltage protection- 2300 mAh/17 Wh battery capacity- Compatible with RUT2xx, RUT95x, RUT3xx, RUT
Xxx, TRB14x, TRB2xx, TSW110, TCR100 devices-
Package contains: BAT120, 24W US PSU with 4-pin connector, and QSG (Quick Start Guide)
Connector: 4-pin industrial DC power socket-
Input power/max charging current:
Charger: max 4 W/300 mA (max battery charging current) -
Input voltage range: 9 - 30 VDC-
Input protection: Reverse polarity protection, Overvoltage protection-
Output voltage in passthrough mode: 9 - 30 VDC -
Output voltage in battery mode: 12VDC-
Output voltage in battery mode: 3A overcurrent protection- Max output power/current in battery mode: 22 W/ 1.8
A- Lithium cells: 2 x 18650 Li-Ion cells-
Battery capacity: 2300 mAh 17 Wh-

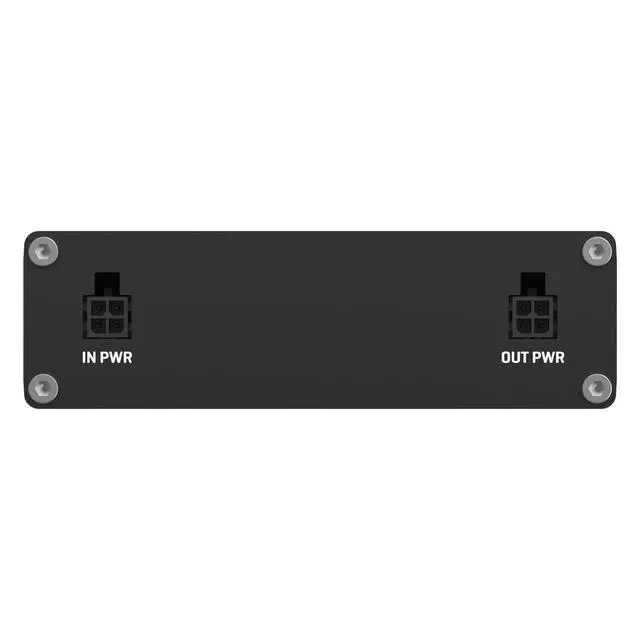

Power IN: 1 x 4 pin DC connector-
Power OUT: 1 x 4 pin DC connector-

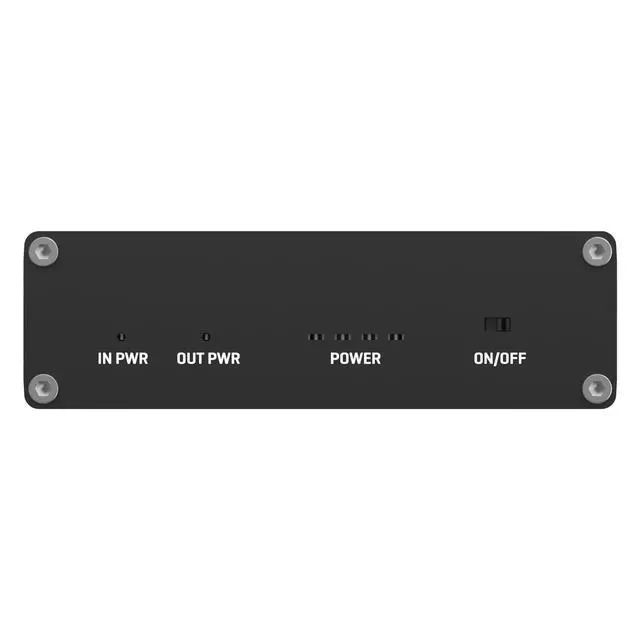

Status LEDs: 1 x IN PWR LED, 1 x OUT PWR LED, 4 x Power status
LEDs- Switch: On/Off slider switch- Dimensions (W x H x
D): 3.93 x 1.18 x 3.34
Inches- Weight: 0.69 Pounds
BAT120 has reverse and overvoltage protection for input and 3A overcurrent protection for output as safety featuresKey
Features: - 4-pin industrial DC power socket- Reverse polarity protection, Overvoltage protection- 2300 mAh/17 Wh battery capacity- Compatible with RUT2xx, RUT95x, RUT3xx, RUT
Xxx, TRB14x, TRB2xx, TSW110, TCR100 devices-
Package contains: BAT120, 24W US PSU with 4-pin connector, and QSG (Quick Start Guide)
Specifications
: -Connector: 4-pin industrial DC power socket-
Input power/max charging current:
Charger: max 4 W/300 mA (max battery charging current) -
Input voltage range: 9 - 30 VDC-
Input protection: Reverse polarity protection, Overvoltage protection-
Output voltage in passthrough mode: 9 - 30 VDC -
Output voltage in battery mode: 12VDC-
Output voltage in battery mode: 3A overcurrent protection- Max output power/current in battery mode: 22 W/ 1.8
A- Lithium cells: 2 x 18650 Li-Ion cells-
Battery capacity: 2300 mAh 17 Wh-
Power IN: 1 x 4 pin DC connector-
Power OUT: 1 x 4 pin DC connector-
Status LEDs: 1 x IN PWR LED, 1 x OUT PWR LED, 4 x Power status
LEDs- Switch: On/Off slider switch- Dimensions (W x H x
D): 3.93 x 1.18 x 3.34
Inches- Weight: 0.69 Pounds
