4.9-5.9GHZ AIRMAX BASE STATION 19DBI 120 DEG W/ ROCKET KIT

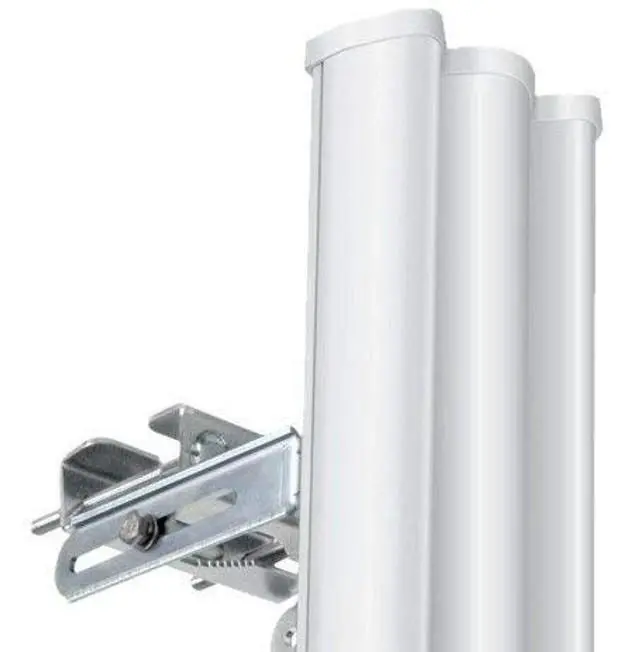

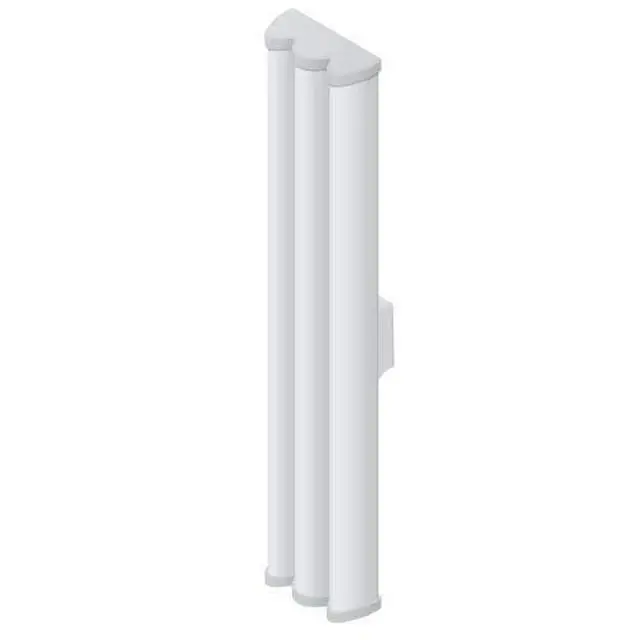

Ubiquiti AM-5G19-120 UISP airMAX 2x2 BaseStation 5 GHz, 19 dBi, 120 Sector Antenna with Rocket M BaseStation for Sector Coverage in Point-to-MultiPoint (PtMP) NetworksThe airMAX Sector Antenna is a carrier-class 2x2 dual-polarity MIMO sector antenna that was designed to seamlessly integrate with Rocket radios (Rocket sold separately). On the right is one example of how the airMAX Sector Antenna can be deployed in a Point-to-MultiPoint (PtMP) network. Key Features- High Performance, Long Range- Seamlessly Integrates with Rocket Radio- Excellent Cross-Polarization Isolation- Designed with robust mechanical for outdoor application use- Plug and Play IntegrationSpecifications-
Frequency Range: 5.15 - 5.85
GHz- Gain: 18.6 - 19.1 dBi-
HPOL Beamwidth: 123 (6 dB) -
VPOL Beamwidth: 123 (6 dB) -
Electrical Beamwidth: 4-
Electrical Downtilt: 2- Max.
VSWR:
1.5: 1-
Wind Survivability: 125 mph-
Wind Loading: 20 lbf @ 100 mph-
Polarization: Dual-Linear-
Cross-pol Isolation: 28 dB Min.
- ETSI Specification: EN 302 326

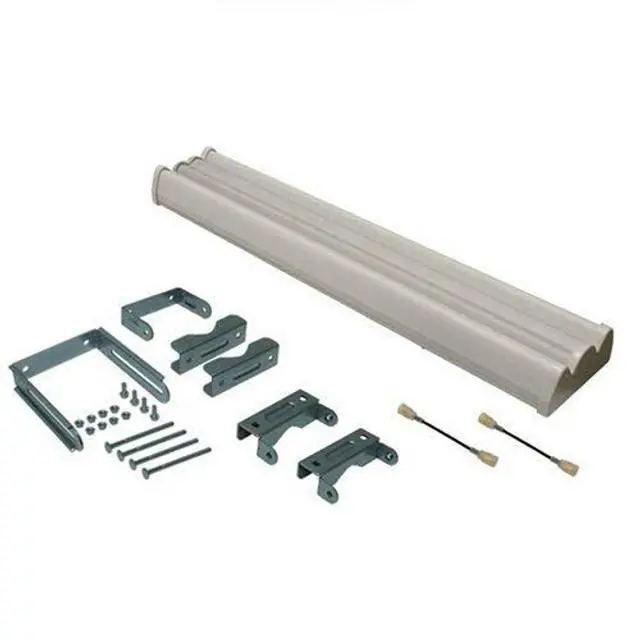

DN2- Mounting: Universal Pole Mount, RocketM Bracket, and
Weatherproof RF Jumpers Included- Dimensions: 700 x 135 x 73mm ( 27.56" x 5.32" x 2.87" )-
Weight: 5.9 kg (13 lbs)
