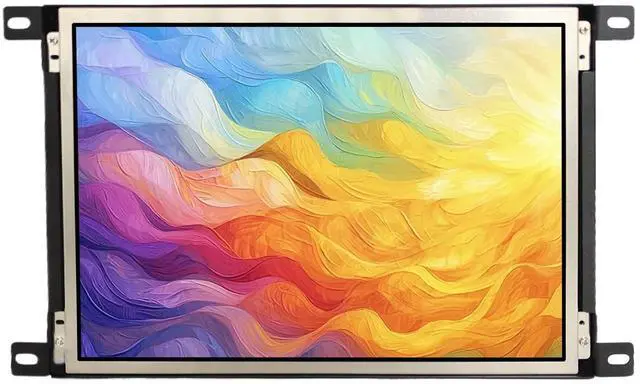

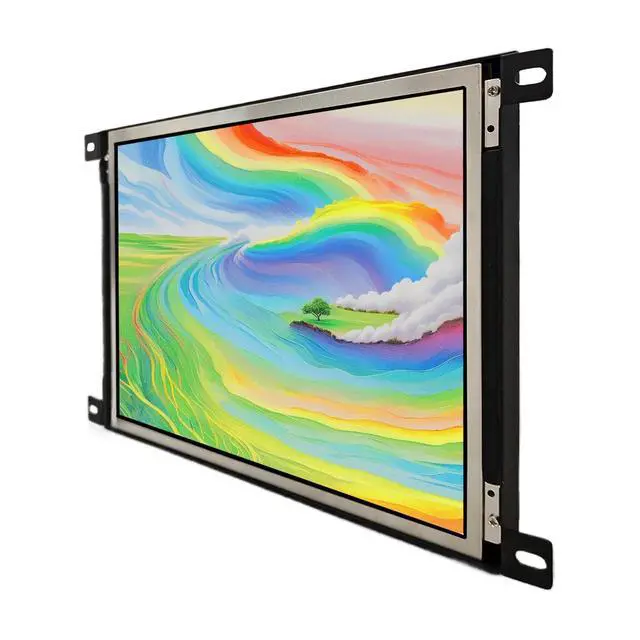

VSDISPLAY 10.4 Inch 1000 Nits High Brightness Outdoor LCD Monitor 1024x768 XGA 4:3 IPS Display Screen with H/D USB Video Input, Metal Mounting Frame for DIY PC/Laptop/Secondary Display
- 1000 Nits High Brightness Outdoor Visibility Designed with ultra-high 1000 nits brightness, this LCD monitor ensures clear and vivid display even under direct sunlight, making it ideal for outdoor digital signage, kiosks, and industrial applications
- Plug & Play Equipped with a versatile controller board that supports H/D USB video input, this monitor easily connects to PCs, laptops,and gaming systems as a secondary display without requiring additional drivers
- IPS Panel & 4:3 Aspect RatioWidely viewing angle bring you better visual experiment Features 1024x768 XGA resolution and a classic 4:3 aspect ratio, delivering sharp and accurate image quality

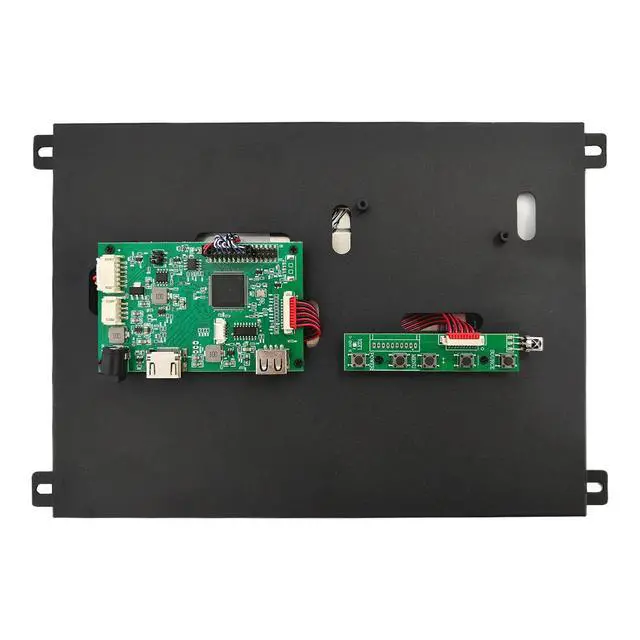

- Durable Metal Frame Comes with metal casing and mounting holes,it's convenient to install and use
- Widely Application For a wide range of uses including DIY projects, extended desktop setups, embedded displays, and control panelscomes fully assembled with controller board included
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

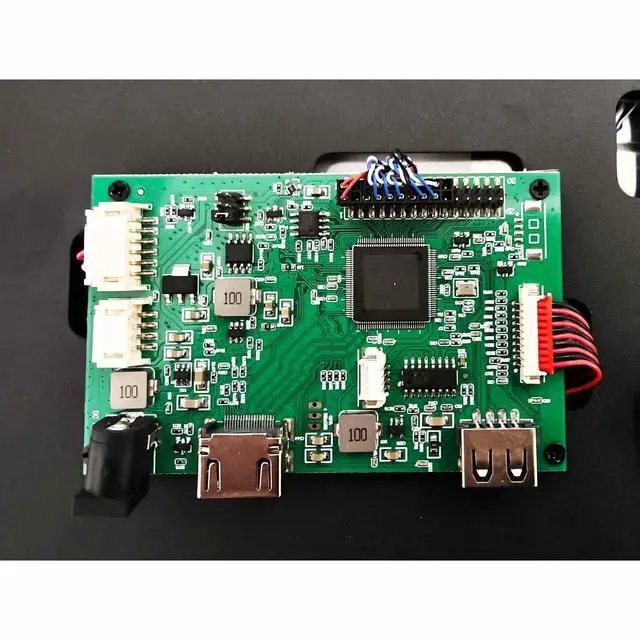

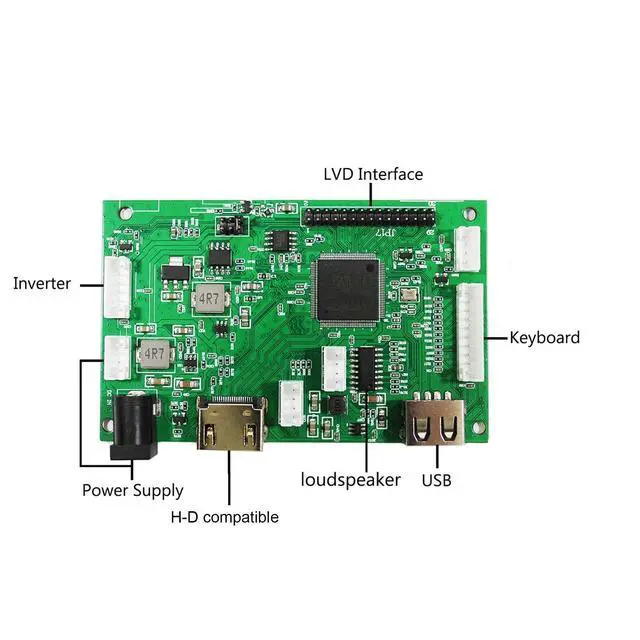

LCD Controller Board: USB LCD Controller Board Work for LVDS Interface
LCD ScreenInput Power Adapter: 12Vdc More than 2A. Come In Standby Model When Not Input signalStandby Model <1WRotate
Image0180Video Input:
USBUSB: Support Video Playback, Picture Playback, Text PlaybackUpgrade Firmware (The upgrade file is placed in the first-level directory of the U disk, andplugged into the USB of the driver board, the power can be upgraded, and it will automaticallyrestart after completed)Audio: Speaker Support 8ohm 2W/ 4ohm 2WOSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 90mm x 51mm x 14mm 10.4" VS104T-005A 1024X768
LCD Screen: Display Mode IPS, Normally Black, TransmissiveResolution 1024 (RGB) 768Outline Size 225.8 174.35. 6 (HVD) mmDisplay Area 211.2 158.48 (HV) mmBrightness 1000 cd/m (Typ. )Contrast Ratio 700:1 (Typ. ) (TM) Viewing Angle 85/85/85/85 (Typ. ) (CR10) [Left / Right / Up / Down]Signal Interface LVDS (1 ch, 6/8-bit), Connector, 30 pinsBacklight WLED
Input Voltage 3.3V (Typ.
)Packing list: 1 10.4 inch 1024X768 1000nit Outdoor LCD Monitor With USB Controller Board
LCD ScreenInput Power Adapter: 12Vdc More than 2A. Come In Standby Model When Not Input signalStandby Model <1WRotate
Image0180Video Input:
USBUSB: Support Video Playback, Picture Playback, Text PlaybackUpgrade Firmware (The upgrade file is placed in the first-level directory of the U disk, andplugged into the USB of the driver board, the power can be upgraded, and it will automaticallyrestart after completed)Audio: Speaker Support 8ohm 2W/ 4ohm 2WOSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 90mm x 51mm x 14mm 10.4" VS104T-005A 1024X768
LCD Screen: Display Mode IPS, Normally Black, TransmissiveResolution 1024 (RGB) 768Outline Size 225.8 174.35. 6 (HVD) mmDisplay Area 211.2 158.48 (HV) mmBrightness 1000 cd/m (Typ. )Contrast Ratio 700:1 (Typ. ) (TM) Viewing Angle 85/85/85/85 (Typ. ) (CR10) [Left / Right / Up / Down]Signal Interface LVDS (1 ch, 6/8-bit), Connector, 30 pinsBacklight WLED
Input Voltage 3.3V (Typ.
)Packing list: 1 10.4 inch 1024X768 1000nit Outdoor LCD Monitor With USB Controller Board
