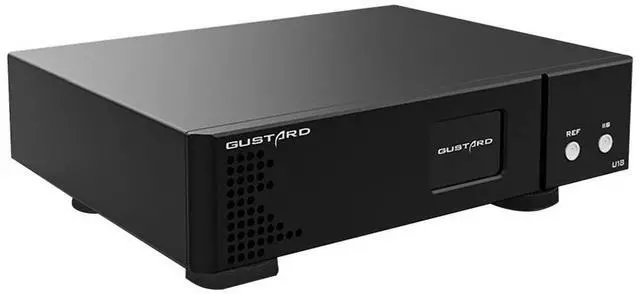

Gustard U18 DDC Digital Interface USB Interface DSD512 PCM768Khz XU216 K2 Fully Isolation AS338 Hi-End Crystol IIS USB Audio Interface (Black)

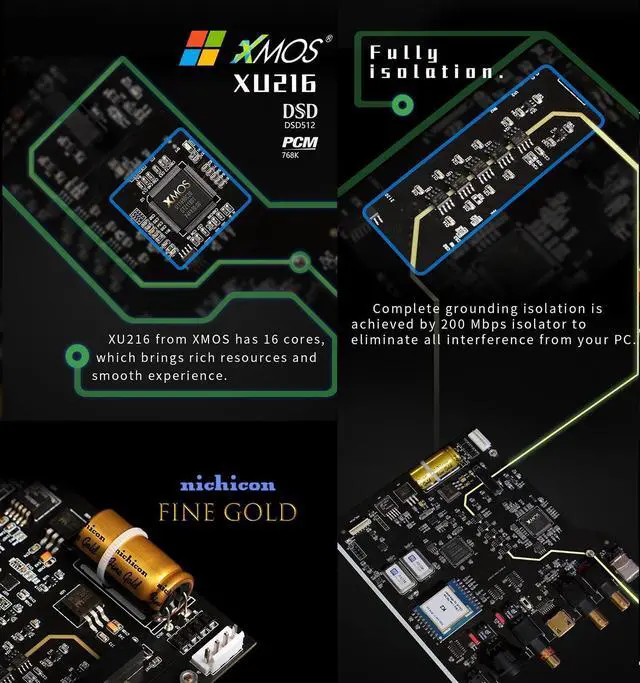

- GUSTARD U18 USB interface uses the XMOS XU216 solution, which supports DSD512 PCM768K. The chip has 16 cores for more abundant resources to run more easily.
- U18 DDC uses fully isolated technology for ground isolation. The PCB physical isolation design and 200Mbps fully isolated chip are used to isolate the interference from PC.
- U18 uses LPLD digital shaping technology to reshape the IIS signal after isolation to eliminate the additive jitter caused by the isolated chip.
- U18 USB DDC uses second-generation ultra-low noise clock synthesis technology and can be externally connected to a 10M frequency thermostatic clock. the K2 clock module can synthesize the 10M frequency with its extremely low loss into the master clock required for audio.The clock power supply of U18 adopts ultra-low noise regulator LT3045 ultra-low noise LDO with excellent performance. 10Hz~100KHz broadband noise 0.8 uVrms.
- USB DDC U18 uses two of Accusilicon's new AS338 series Hi-End level audio crystal, in
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

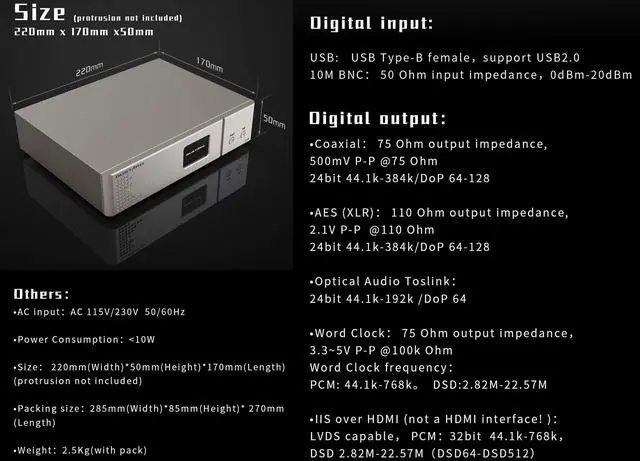

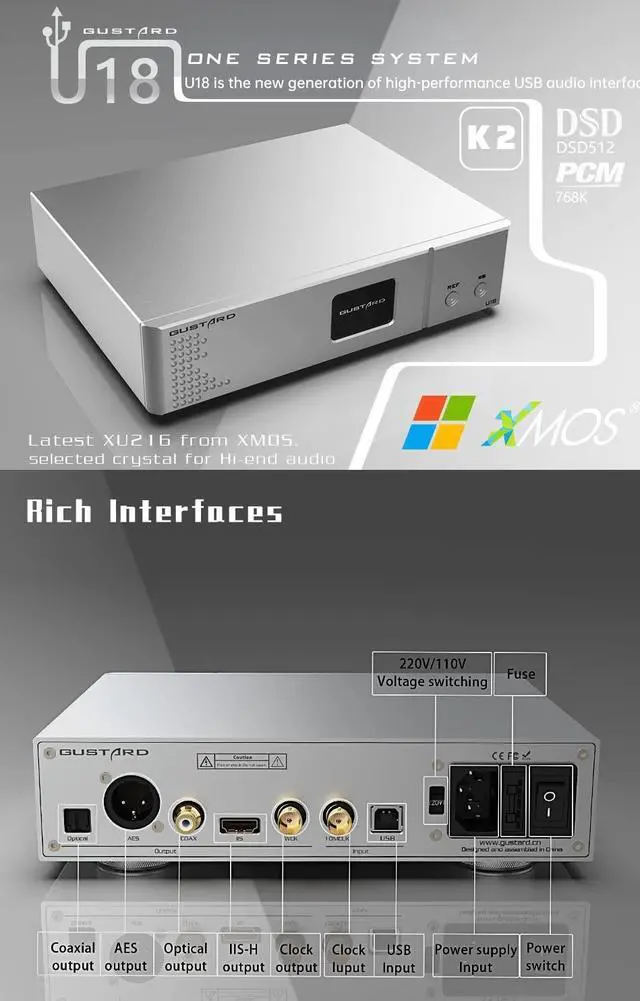

SpecificationsInputs:
USB: USB Type-B female, support
USB 2.010M BNC: 50 Ohm input impedance, 0dBm-20dBm, CMOS Square wave 0.2V - 3.3V, Sine wave 0.5 - 3.3V.
Outputs:
Coaxial: 75 Ohm output impedance, 500mV P-P @75 Ohm 24bit 44.1 k-384k/DoP 64-128AES (XLR): 110 Ohm output impedance, 2.1V P-P @110 Ohm 24bit 44.1 k-384k/DoP 64-128Optical
Audio Toslink: 24bit 44.1 k-192k /DoP 64Word
Clock output: Word
Clock Frequency:
PCM: 44.1 k-768k
I DSD: 2.82M - 22.57MW ord
Clock Voltage: 3.3V pp MAX 100k loadIIS over HDMI (not a standard
HDMI): LVDS
voltage capablePCM: 32bit 44.1 k-768kDSD 2.82M - 22.57M (DSD64-DSD512)Others: AC
input: AC 115V/230V 50/60HzPower
Consumption:
<15WSize: 220mm (Width) *50mm (Height) *170mm (Length) (protrusion not included)
Packing size: 285mm (Width) *85mm (Height) *270mm (Length)
Weight: 2.5K g (with pack)
Package list: 1 GUATARD DDC-U181 AC Cable1 USB Cable1 Remote Control1x Warranty Card
USB: USB Type-B female, support
USB 2.010M BNC: 50 Ohm input impedance, 0dBm-20dBm, CMOS Square wave 0.2V - 3.3V, Sine wave 0.5 - 3.3V.
Outputs:
Coaxial: 75 Ohm output impedance, 500mV P-P @75 Ohm 24bit 44.1 k-384k/DoP 64-128AES (XLR): 110 Ohm output impedance, 2.1V P-P @110 Ohm 24bit 44.1 k-384k/DoP 64-128Optical
Audio Toslink: 24bit 44.1 k-192k /DoP 64Word
Clock output: Word
Clock Frequency:
PCM: 44.1 k-768k
I DSD: 2.82M - 22.57MW ord
Clock Voltage: 3.3V pp MAX 100k loadIIS over HDMI (not a standard
HDMI): LVDS
voltage capablePCM: 32bit 44.1 k-768kDSD 2.82M - 22.57M (DSD64-DSD512)Others: AC
input: AC 115V/230V 50/60HzPower
Consumption:
<15WSize: 220mm (Width) *50mm (Height) *170mm (Length) (protrusion not included)
Packing size: 285mm (Width) *85mm (Height) *270mm (Length)
Weight: 2.5K g (with pack)
Package list: 1 GUATARD DDC-U181 AC Cable1 USB Cable1 Remote Control1x Warranty Card
