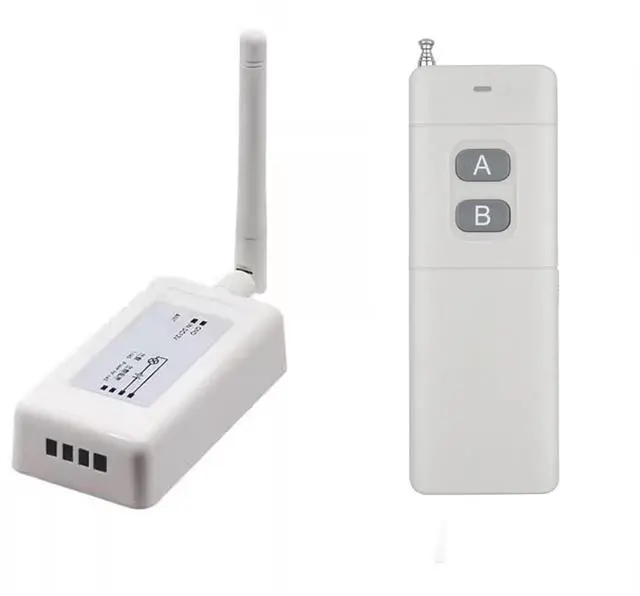

Feedback Switch DC 12V 24v Home Appliances Switch Controller Lora 5000m Remote Gates Controller 434Mhz RF Wireless 1-Channel Motor Control with Feedback Function

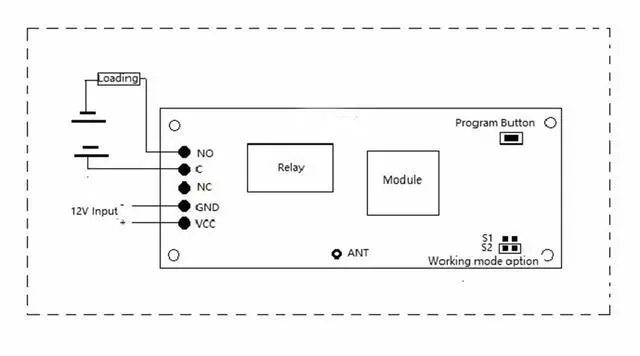

- Relay Output: This receiver is dry relay output; it can be used to operate both DC and AC equipment. The output terminals are NO / NC (normally open / normally closed), serving as a switch.

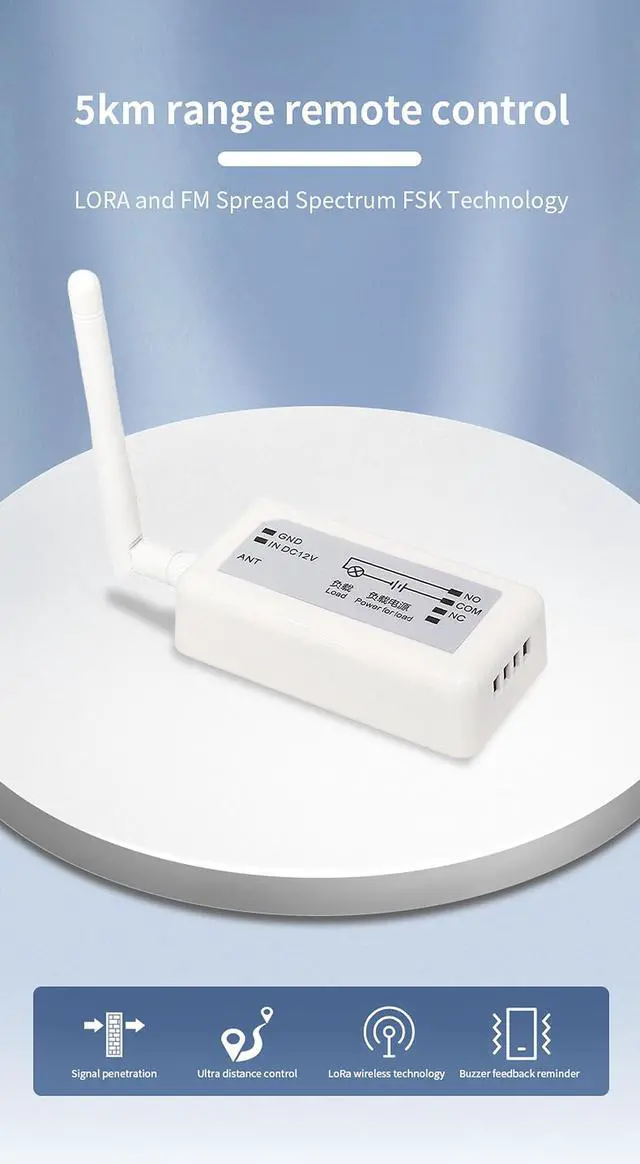

- This receiver is a super long range remote switch. It is developed by LORA (Long Range) wireless communication technology, so it has ultra-long working distance, ultra-high receiving sensitivity, superior anti-interference ability, and smaller power consumption. It uses a transceiver chip to implement bidirectional communication. Its ideal working distance is up to 5 kilometers, which is an excellent device for remote control and long-distance communication.
- The transmitter / remote can control the receiver from any place within a reliable working distance.
- Feedback Function: The receiver and the transmitter have a Two-way working mode, so the user can know the working status of the receiver by the transmitter. Two-way working mode: When the receiver is successfully triggered by the signal
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Package Include1 x Receiver1 x Transmitter1 x User manual1 x one year warrantyOverviewUse: UniversalAmblent
tempquen: -10 C -- +70
CContact Load: High
PowerCurrent: 16mAEncoding
type: Custom
Match CodeVoltage: DC12V-24vRecevier
sensitivity:
-148dBmFrequency: 433MHzReceive
IC: U. S.
imports of chipsAdvantage: greatly
enhancing the anti-jammingperformanceSpecial function: Feedback indication ( Beep sound )
Output: relay signalProgrammable remoteWorking
Voltage: 9V
BatteryReceive Current:
65mADimension: 127*41*20
mmWeight: 100gOperating
temperature: -10~+70Feedback
Indication: buzzerOperation
Method: 1.
Match Code: Press learning button K1 for 3seconds, LED indicator lights, and press any button on the remote control. When LED flashes twice, matching is done. 2. If need to add more remote controls, please repeat step 1 and max 20pcs can be matched. 3.
Delete Code: Press K1 and hold on, do not release until LED flashes 3 times, and then delete code successfully. 4.
Select output mode: (By adjusting DIP switch) (1) DIP switch No. 1 ON, Toggle Mod
tempquen: -10 C -- +70
CContact Load: High
PowerCurrent: 16mAEncoding
type: Custom
Match CodeVoltage: DC12V-24vRecevier
sensitivity:
-148dBmFrequency: 433MHzReceive
IC: U. S.
imports of chipsAdvantage: greatly
enhancing the anti-jammingperformanceSpecial function: Feedback indication ( Beep sound )
Output: relay signalProgrammable remoteWorking
Voltage: 9V
BatteryReceive Current:
65mADimension: 127*41*20
mmWeight: 100gOperating
temperature: -10~+70Feedback
Indication: buzzerOperation
Method: 1.
Match Code: Press learning button K1 for 3seconds, LED indicator lights, and press any button on the remote control. When LED flashes twice, matching is done. 2. If need to add more remote controls, please repeat step 1 and max 20pcs can be matched. 3.
Delete Code: Press K1 and hold on, do not release until LED flashes 3 times, and then delete code successfully. 4.
Select output mode: (By adjusting DIP switch) (1) DIP switch No. 1 ON, Toggle Mod
