$49.99
Meet Your Seller

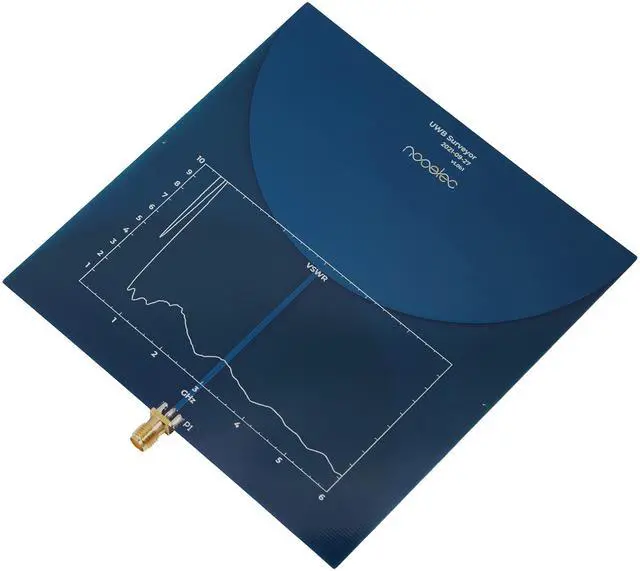

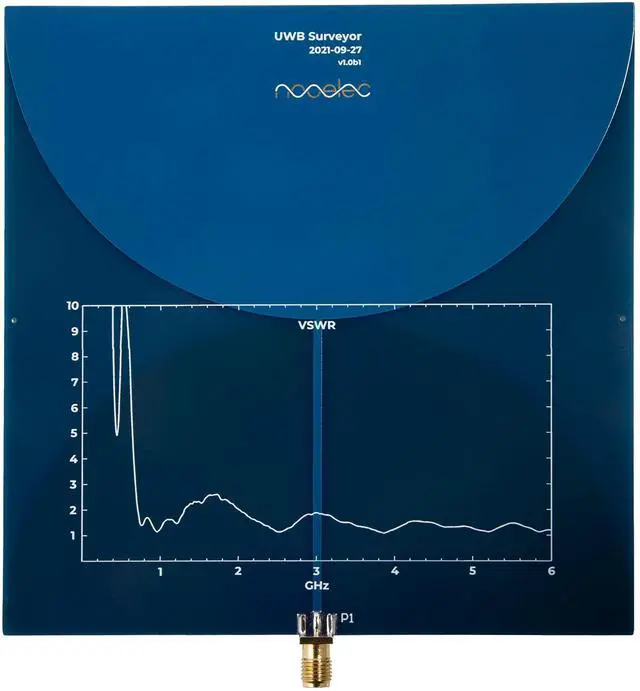

Nooelec UWB Surveyor Antenna - Extremely Wide Bandwidth Biconical Low-Profile PCB Antenna. Frequency Range of 700MHz to 10GHz, Average Gain of 3dBi. Very Small and Portable with SMA Female Connector
- Extremely wideband response (700MHz to more than 10GHz)
- Can be utilized in transmission (TX), reception (RX), and TRX systems
- SMA input/output connector
- We recommend using it in conjunction with NESDR Smart SDR, LaNA, and VGA (available on , product IDs: B01HA642SW, B07XNLJ9X2, and B08LNYKHSM, respectively)
- Small size of 120mm (4.7") by 120mm (4.7")
- Full 2-year warranty and support direct through Nooelec!
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
For full product details, please visit the product page at nooelec. com or download the datasheet:
https: //www. nooelec. com/datasheets/100840UWB Surveyor is an extremely wide bandwidth antenna designed using PCB technology for use in TX, RX, and TRX applications. It provides a low profile, lightweight (only 26 grams), and cost-effective solution for use in software-defined radio applications as well as for quick EMC testing, wideband signal analysis, large bandwidth spectrum surveying, and UWB technology-related applications such as sensors, indoor localization, and IoT. The antenna provides a symmetrical omnidirectional linear polarization radiation pattern across a wide range of frequencies and a variable gain throughout the operating range, with an average of 3dBi. It can be deployed for indoor and outdoor use and matched for 50 systems. The size is only 12cm x 12cm with a maximum thickness equal to that of the SMA connector!
https: //www. nooelec. com/datasheets/100840UWB Surveyor is an extremely wide bandwidth antenna designed using PCB technology for use in TX, RX, and TRX applications. It provides a low profile, lightweight (only 26 grams), and cost-effective solution for use in software-defined radio applications as well as for quick EMC testing, wideband signal analysis, large bandwidth spectrum surveying, and UWB technology-related applications such as sensors, indoor localization, and IoT. The antenna provides a symmetrical omnidirectional linear polarization radiation pattern across a wide range of frequencies and a variable gain throughout the operating range, with an average of 3dBi. It can be deployed for indoor and outdoor use and matched for 50 systems. The size is only 12cm x 12cm with a maximum thickness equal to that of the SMA connector!
