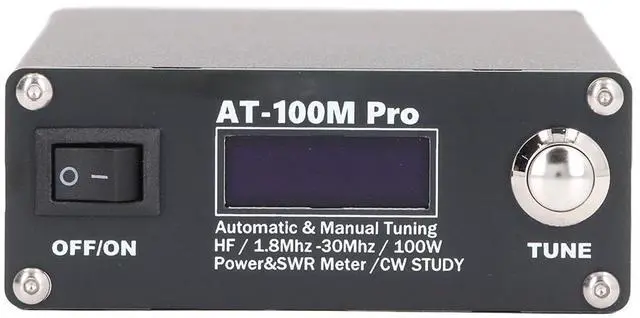

Pyhodi Antenna Tuner Power Standing Wavemeter, at 100M Pro Power SWR Meter for Radio Station Antenna, 1.8mhz to 30mhz Frequency, 2 Adjustment Modes, Support 6 Status Interfaces, Pyhodi0pxusw7efg

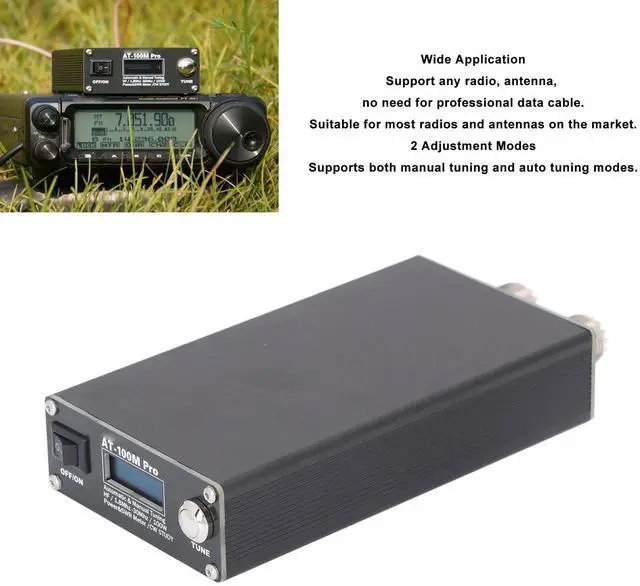

- Wide Range Of ApplicationThis antenna tuner and power standing meter supports any radio station and antenna, no need for professional data lines, suitable for most radio stations and antennas on the market, such as , USDX, QRP and other radio stations, supports end-feed, vertical, horizontal and other antennas
- Antenna Tuner + Standing Wavemeter 2 and 1This antenna tuner and SWR power meter is an antenna tuner, as well as a power and standing meter, supporting the display of standing values, forward power, and reverse power. Power meter mode supports maximum display of 150W SSB/CW in untuned state.
- Powerful Tuning CapabilityThe built-in combination of large capacitor and inductance values greatly improves the tuning success rate and reduces the trouble of repeatedly adjusting the antenna system. The maximum combined values for capacitors are up to 3869pF and for inductors up to 17.21uH.
- Morse Code PractitionerThis antenna tuner and standing wavemeter has a 3.5mm headphone jack
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification: Item
Type: Antenna Tuner
Power Standing WavemeterMaterial: Aluminum
AlloyModel: AT 100M
Pro Supported Radio: Any Radio
Support Antenna: Any
Antenna Frequency: 1.8 -30MhzPower
Range: 1-18Mhz, SSB, CW 0.1W -100W, Peak 150W 18-30Mhz, SSB, CW 0.1W -50W1-30Mhz, FM, AM, FT8
0.1W -50WCapacitance: Maximum
3869pFInductance: 17.21 uH

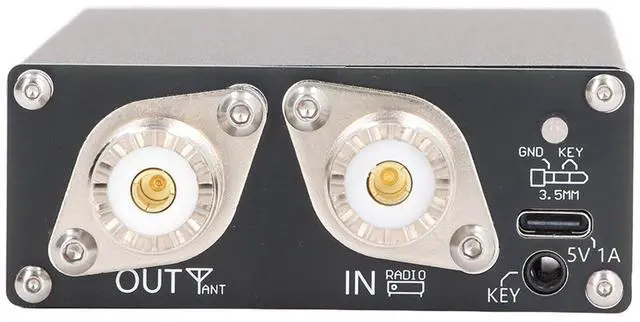

MaximumCW Key: 3.5 mm
JackCharging: Type C USB 5V 1A ( Support Overcharge and Overdischarge Guard )

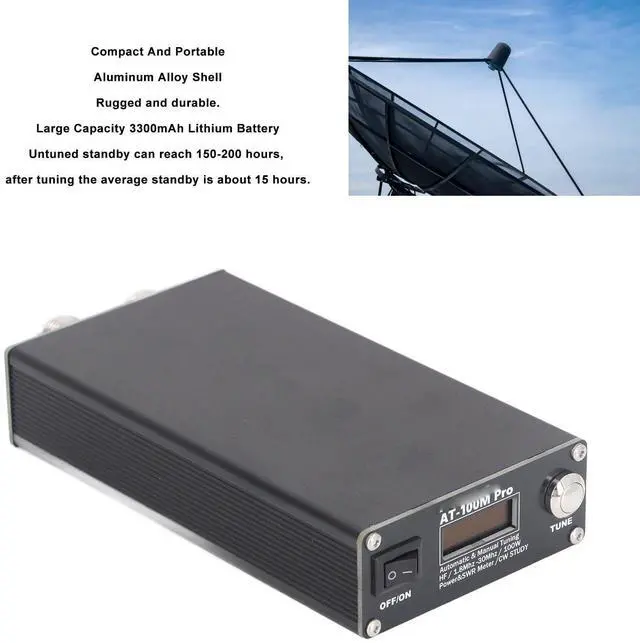

Battery: Rechargeable Lithium Battery 3300mAh x 1 ( Shipped With Built In Battery )
Shutdown Current: Approx.
15uAStandby Current: Approx. 13mA, Approx. 150-200 Hours Standby ( No Tuning Status )
Tuning Standby: Starting 1-3 relays requires a current of 130-330mA, about 10-25 hours of standby.
Charging Time: Fully charged for about 4 hours. LEDs are red when charging and green when fully charged.
Package List: 1 x Antenna Tuner Power Standing Wavemeter1 x L Wrench1 x USB Cable1 x Foot Pad1 x
ManualNotice: 1. Please calibrate the VSWP value of the device when you use it for the first time or change the radio, please refer to the instruction manual for details. 2. This power standing wavemeter can withstand different power at different frequencies or in different modes, please refer to the instruction manual for details. 3. The number of relays operating at different tuning levels will affect battery life.
Type: Antenna Tuner
Power Standing WavemeterMaterial: Aluminum
AlloyModel: AT 100M
Pro Supported Radio: Any Radio
Support Antenna: Any
Antenna Frequency: 1.8 -30MhzPower
Range: 1-18Mhz, SSB, CW 0.1W -100W, Peak 150W 18-30Mhz, SSB, CW 0.1W -50W1-30Mhz, FM, AM, FT8
0.1W -50WCapacitance: Maximum
3869pFInductance: 17.21 uH
MaximumCW Key: 3.5 mm
JackCharging: Type C USB 5V 1A ( Support Overcharge and Overdischarge Guard )
Battery: Rechargeable Lithium Battery 3300mAh x 1 ( Shipped With Built In Battery )
Shutdown Current: Approx.
15uAStandby Current: Approx. 13mA, Approx. 150-200 Hours Standby ( No Tuning Status )
Tuning Standby: Starting 1-3 relays requires a current of 130-330mA, about 10-25 hours of standby.
Charging Time: Fully charged for about 4 hours. LEDs are red when charging and green when fully charged.
Package List: 1 x Antenna Tuner Power Standing Wavemeter1 x L Wrench1 x USB Cable1 x Foot Pad1 x
ManualNotice: 1. Please calibrate the VSWP value of the device when you use it for the first time or change the radio, please refer to the instruction manual for details. 2. This power standing wavemeter can withstand different power at different frequencies or in different modes, please refer to the instruction manual for details. 3. The number of relays operating at different tuning levels will affect battery life.
