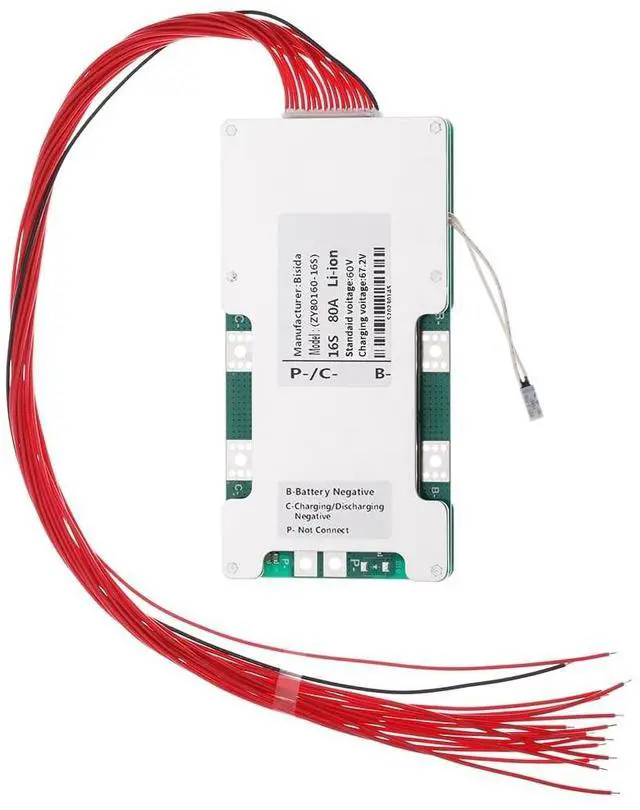

Bisida 16S BMS 60V 100A Li-ion PCB Protection Board with Balance Wire and NTC,Ten Functional protections, Common Port, for Solar Energy Storage, Balance Car Lithium-ion Battery Pack (16S 60V 100A)
- MULTIPLE PROTECTION Bisida's BMS has a variety of protection functions, such as over charge protection, over discharge protection, over current protection, short-circuit protection, temperature protection, isconnect protection, Voltage balance(passive balance), etc.

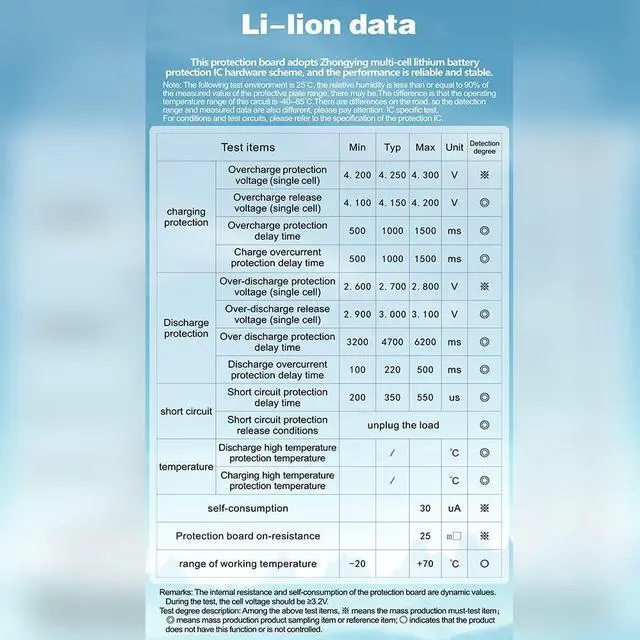

- OPERATING TEMPERATURE Bisida's BMS supports (3.7V) lithium-ion battery charging and discharging in zones from 2.65V to 4.25V, with low temperature protection up to -20C and high temperature protection up to 70C. Different voltages and currents have different parameter details. Confirmation required.
- NOTICE Before installing the BMS protective board, it is necessary to match the voltage, capacity, and internal resistance (the voltage difference between the battery per section is not higher than 0.05V, the difference between the internal resistance is not more than 5M, and the capacity difference is less than 30mAh). Otherwise the battery pack will not be able to charge.
- WIRING METHOD The wiring methods of Common por
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product size: 80mm*160mm*17mmVoltage
Value: 60VCharger
Voltage: 67.2VW orking
Current: 100ACharging
current: Recommended
below 30ATemperature protection: -20 ~ 70
Applicable Battery: 3.7V lithium ion Battery (Single
Cell) Instantaneous CurrenT: 3 to 5 Times the working current.
Package Contents: Battery
Protection Board*1Cable*1Please note: Our products use the integrated IC solution. It means that the SOC accuracy of the BMS is very high, and the voltage of each string will be collected. It must be required that the voltage, internal resistance, and capacity must be the same height during assembly, otherwise the BMS will disconnect and protect (disconnection protection function). This product is an industrial semi-finished product, which needs to be repaired and assembled by people with professional electrical knowledge. Thank you for your understand.
Value: 60VCharger
Voltage: 67.2VW orking
Current: 100ACharging
current: Recommended
below 30ATemperature protection: -20 ~ 70
Applicable Battery: 3.7V lithium ion Battery (Single
Cell) Instantaneous CurrenT: 3 to 5 Times the working current.
Package Contents: Battery
Protection Board*1Cable*1Please note: Our products use the integrated IC solution. It means that the SOC accuracy of the BMS is very high, and the voltage of each string will be collected. It must be required that the voltage, internal resistance, and capacity must be the same height during assembly, otherwise the BMS will disconnect and protect (disconnection protection function). This product is an industrial semi-finished product, which needs to be repaired and assembled by people with professional electrical knowledge. Thank you for your understand.
