Superbat 3G/6G/12G SDI Cable 25ft BNC Cable 75 Ohm Belden 1694A Black,Support HD-SDI/3G-SDI/6G-SDI 4K Video Security Camera CCTV Systems, Precision SDI Camera Wire

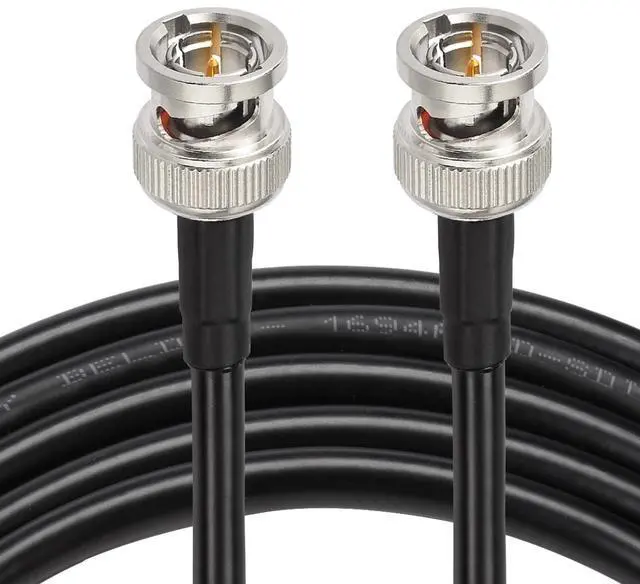

- HD-SDI 3G/6G/12G SDI Cable 25 ft Black BNC to BNC Digital Video Cable
- Heavy Duty Connector : 75ohm BNC male to male (plug)
- Connector: Gold plated
- Impedance: 75 Ohm

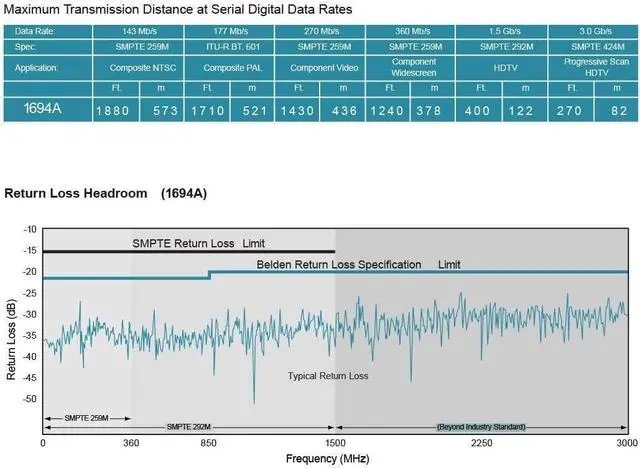

- Standard Definition SD-SDI (270 Mbps, ST 259) HD standard HD-SDI (1.483 Gbps, ST 292)3G-SDI (2.97 Gbps, ST 424) 6G-SDI (5.94 Gbps, ST 2081) 12G-SDI (11.88 Gbps, ST 2082)

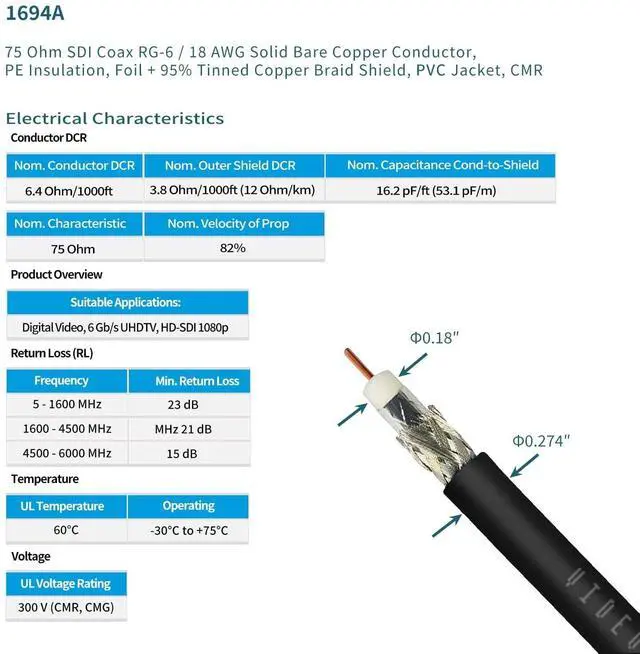

- BELDEN 1694A PRECISION SERIAL DIGITAL VIDEO COAXIAL CABLE: features exceptionally low attenuation and a 4.5 GHz Bandwidth in an RG6 coax cable. Featuring RG-6/U type, 18 AWG solid .040" bare copper conductor, Gas-injected FHDPE - Foam High-Density Polyethylene + tinned copper braid shield (95% coverage tinned copper braid combined with Duofoil foil/poly/foil 100% shield), PVC - Polyvinyl Chloride.

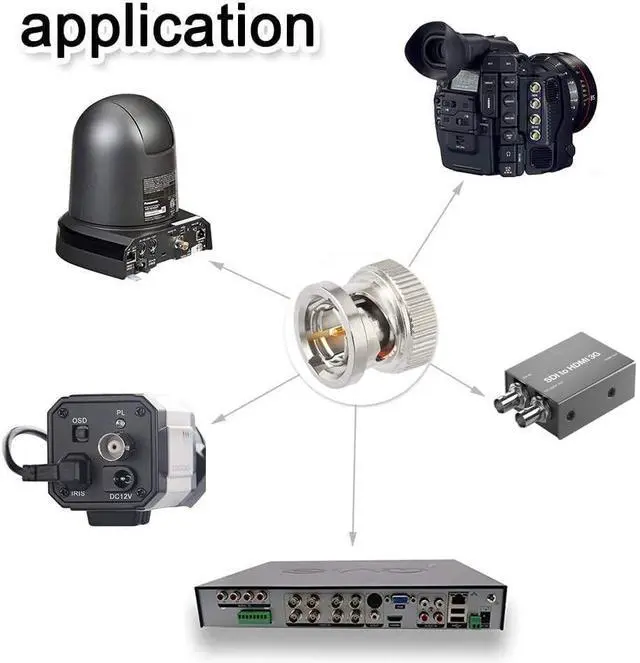

- The BNC cable and security camera cable is compatible with all HD CCTV DVR surveillance systems, Such as VCR/Camera, CCTV Monitor, HDMI to SDI Converter, monitor, TV antenna baluns, Video Splitter, Oscilloscopes, SDI video switcher etc.
- Plug an
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
HD-SDI 3G/6G/12G SDI Cable 25 ft Black BNC to BNC Digital Video Cable ^^ Heavy
Duty Connector: 75ohm BNC male to male (plug) ^^
Connector: Gold plated ^^
Impedance: 75 Ohm ^^ Standard Definition SD-SDI (270 Mbps, ST 259) HD standard HD-SDI ( 1.483 Gbps, ST 292)3G-SDI ( 2.97 Gbps, ST 424) 6G-SDI ( 5.94 Gbps, ST 2081) 12G-SDI ( 11.88 Gbps, ST 2082) ^^ BELDEN 1694A PRECISION SERIAL DIGITAL VIDEO COAXIAL CABLE: features exceptionally low attenuation and a 4.5 GHz Bandwidth in an RG6 coax cable. Featuring RG-6/U type, 18 AWG solid. 040" bare copper conductor, Gas-injected FHDPE - Foam High-Density Polyethylene + tinned copper braid shield (95% coverage tinned copper braid combined with Duofoil foil/poly/foil 100% shield), PVC - Polyvinyl Chloride. ^^ The BNC cable and security camera cable is compatible with all HD CCTV DVR surveillance systems, Such as VCR/Camera, CCTV Monitor, HDMI to SDI Converter, monitor, TV antenna baluns, Video Splitter, Oscilloscopes, SDI video switcher etc. ^^ Plug and play, this sdi jumper good for Panasonic studio model video camera, Ikon external monitor, Atomos Recorder, Sony F65, Switcher etc.
Duty Connector: 75ohm BNC male to male (plug) ^^
Connector: Gold plated ^^
Impedance: 75 Ohm ^^ Standard Definition SD-SDI (270 Mbps, ST 259) HD standard HD-SDI ( 1.483 Gbps, ST 292)3G-SDI ( 2.97 Gbps, ST 424) 6G-SDI ( 5.94 Gbps, ST 2081) 12G-SDI ( 11.88 Gbps, ST 2082) ^^ BELDEN 1694A PRECISION SERIAL DIGITAL VIDEO COAXIAL CABLE: features exceptionally low attenuation and a 4.5 GHz Bandwidth in an RG6 coax cable. Featuring RG-6/U type, 18 AWG solid. 040" bare copper conductor, Gas-injected FHDPE - Foam High-Density Polyethylene + tinned copper braid shield (95% coverage tinned copper braid combined with Duofoil foil/poly/foil 100% shield), PVC - Polyvinyl Chloride. ^^ The BNC cable and security camera cable is compatible with all HD CCTV DVR surveillance systems, Such as VCR/Camera, CCTV Monitor, HDMI to SDI Converter, monitor, TV antenna baluns, Video Splitter, Oscilloscopes, SDI video switcher etc. ^^ Plug and play, this sdi jumper good for Panasonic studio model video camera, Ikon external monitor, Atomos Recorder, Sony F65, Switcher etc.
