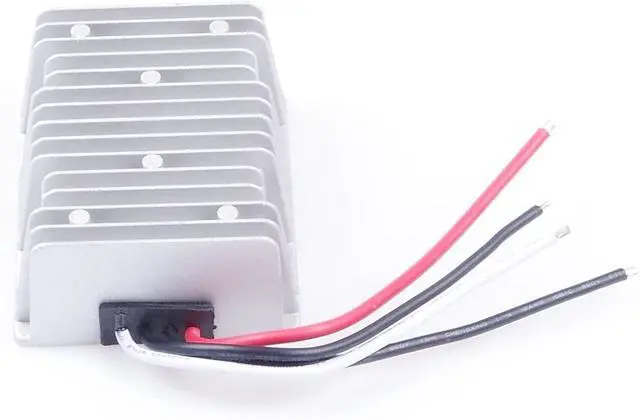

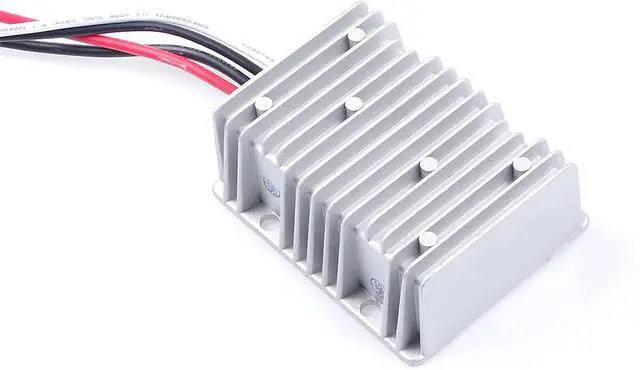

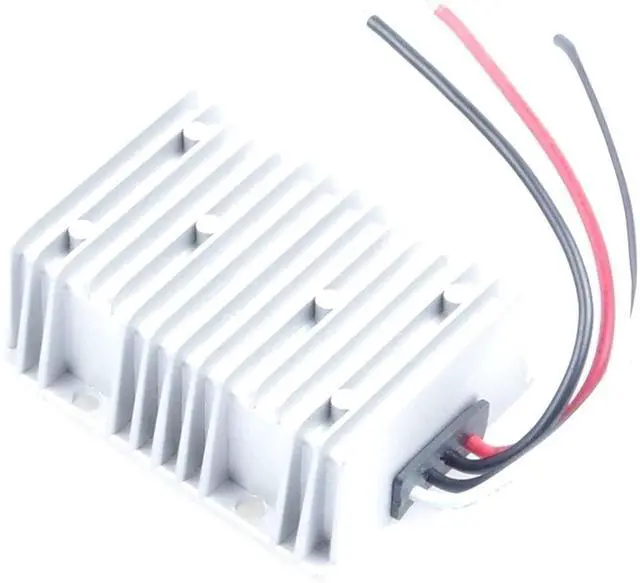

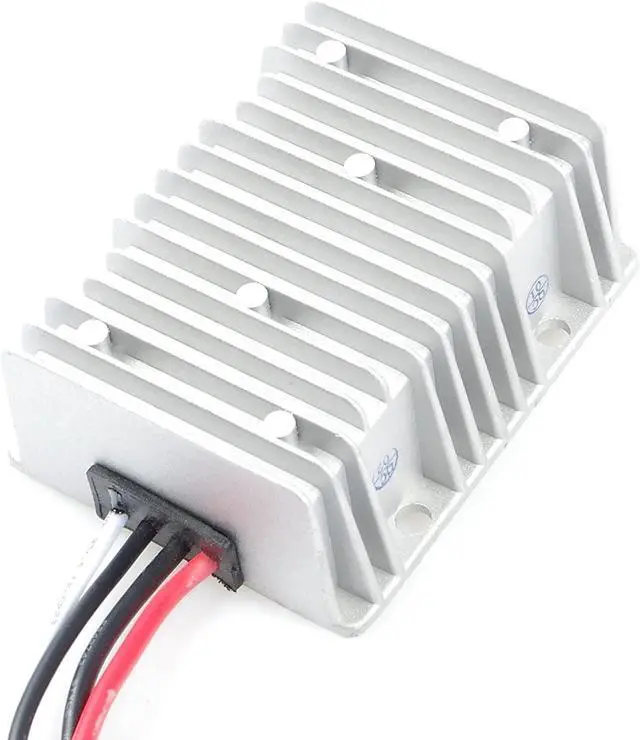

KNACRO DC 12V 9V-17V Step-Up to DC 19V 25A 475W Weatherproof Power Supply Module Converter Regulator Booster (19V 25A 475W)
- PARAMETER --- KNACRO DC-DC converter input voltage range is DC 9V-17V ( 12V ); output voltage is DC 19V; output current is 25A; output power is 475W.
- APPLICATION --- the 19v boost converter module can be used in integrated wiring for monitoring fire alarming system; car radio, audio; bus, minibus, truck display screen, taxi advertising screen; LCD television, LED; solar power generation system; interphone, etc.
- PROTECTION --- this voltage boost comes with over-current protection, over-temperature protection; adopts potting technology, characterized by waterproof, dust-proof, moisture-proof and shock-proof, can be used in various situations such as car, outdoor, underground, etc.
- FEATURE --- the boost power module adopts high-integrated chip, stable and reliable; synchronous rectification technology, with conversion efficiency of over 93% and low heat generated.
- NOTE --- Leave a margin for the power supply to ensure it can long-term stably working.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
-Our Waterproof Power Converter Regulator adopts synchronous voltage regulator technology, full import original components, can will convert unstable voltage DC 12V ( 9V - 17V) to stable 19V DC output. -The import high heat conduction organic silica gel filling and sealing technology, and compatible with multiple automatic protection function, overcurrent, short circuit, overtemperature, waterproof, moistureproofSafety Instructional Manual1. The load connected to the output end of the power regulator should not be more than MAX LISTED LOAD POWER, any higher rated load will cause damage to the power regulator.

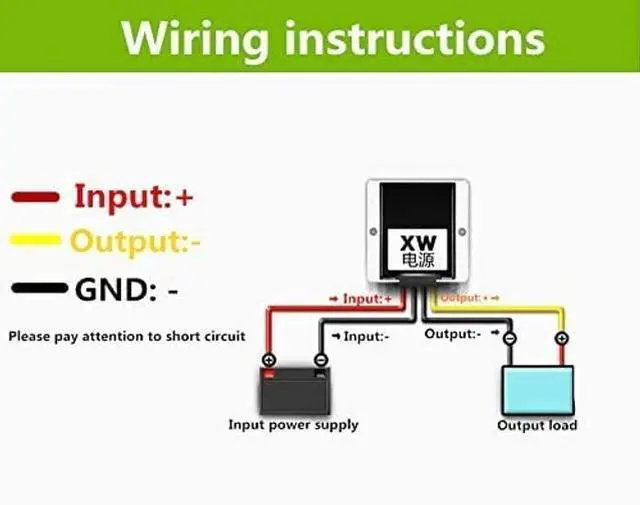

2. Can not used long time Under the MAX. LISTED LOAD POWER3. Correctly connect the positive and negative terminals of the input and output as the label on the product, can
not reversedFeatures: -Good heat conduction, waterproof, or other harsh environment. -More than 93% power conversion efficiency. -Si-Fe Cores magnetic loop, high temperature resistance and super stability.
Name: Waterproof
Power Converter RegulatorInput: DC
12V(9V - 18V)Output: DC 19VConversion
Efficiency: More Than 93%Protection
Grade: IP67Connection
Wire Length: 12cm( 4.7 inches)Mounting
Hole Diameter: 4mm( 0.16 inch)Mounting
Hole Distance: 63mm( 2.45 inches)Body
Size: 101mm x78mm x 36mm (L*W*H)
Net Weight: 530gPackage
Content: 1 x Waterproof Power Converter Regulator
2. Can not used long time Under the MAX. LISTED LOAD POWER3. Correctly connect the positive and negative terminals of the input and output as the label on the product, can
not reversedFeatures: -Good heat conduction, waterproof, or other harsh environment. -More than 93% power conversion efficiency. -Si-Fe Cores magnetic loop, high temperature resistance and super stability.
Specifications
: ProductName: Waterproof
Power Converter RegulatorInput: DC
12V(9V - 18V)Output: DC 19VConversion
Efficiency: More Than 93%Protection
Grade: IP67Connection
Wire Length: 12cm( 4.7 inches)Mounting
Hole Diameter: 4mm( 0.16 inch)Mounting
Hole Distance: 63mm( 2.45 inches)Body
Size: 101mm x78mm x 36mm (L*W*H)
Net Weight: 530gPackage
Content: 1 x Waterproof Power Converter Regulator
