KNACRO LM2596 DC DC Converter Multi Channel 3.3V 5V 12V ADJ (Vin-1) Adjustable Output Switching Power Supply Step-Down Power Supply Module
- The LM2596 is a step-down power management monolithic integrated circuit switching voltage regulator, capable of outputting 3A of drive current, while having very good linearity and load regulation characteristics.

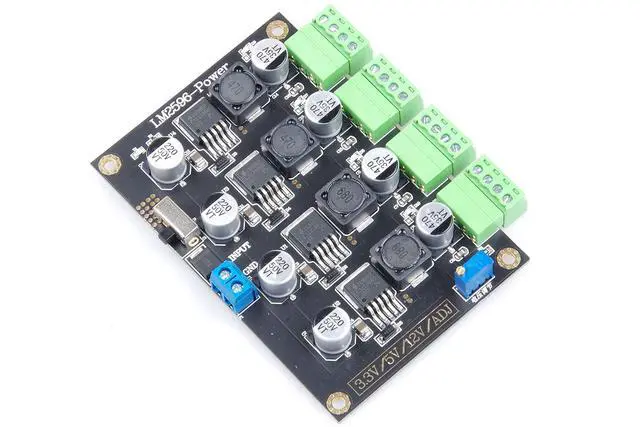

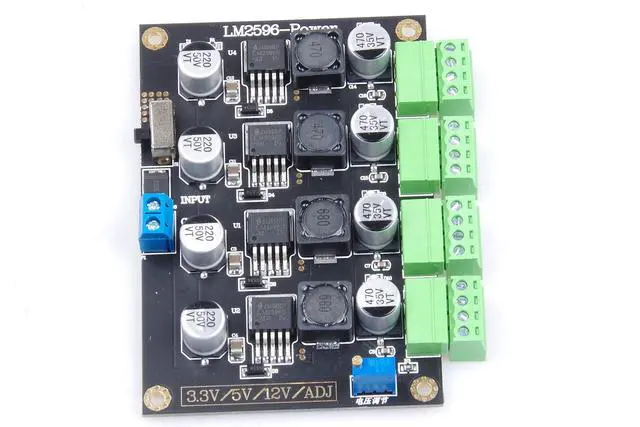

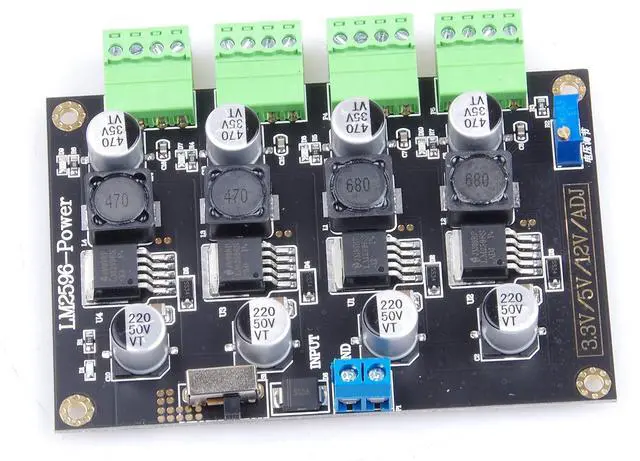

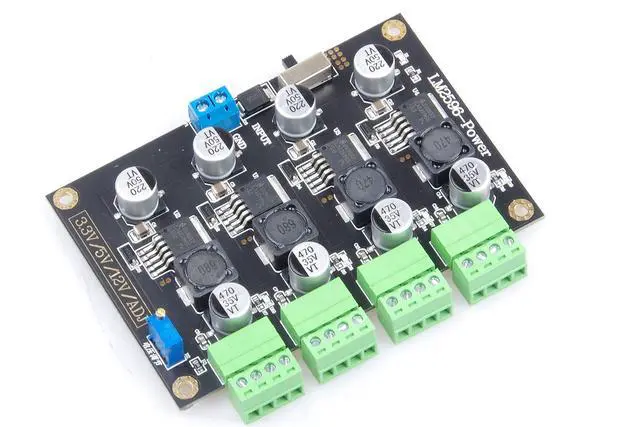

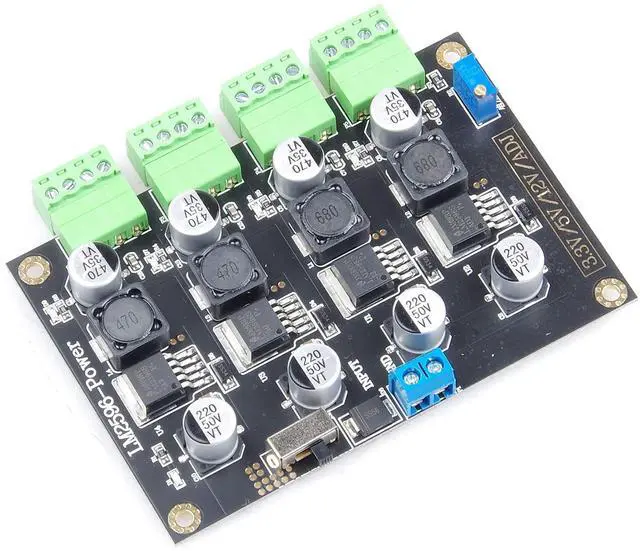

- This module integrates 4 LM2596, which can simultaneously output 3.3V, 5V, 12V, ADJ four groups of power supply, the module layout and wiring strictly in accordance with the design specifications of the power circuit;
- The module belongs to the step-down type module, the input voltage needs to be greater than the output of more than 1V to stabilize the output.
- The output voltage of the module adj is generally adjustable within the range of about 1V lower than the supply voltage.
- The maximum single circuit current of the module is 3a, and the total current is not more than 5A.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Module model: LM2596
multi-channel power supplyModule type: switching
power supplyInput voltage: 13V-32VOutput
voltage: multi-channel; 3.3V, 5V, 12V, ADJ
Output current: 3A (MAX); the single-channel current of the module is maximum 3A, and the total current does not exceed 5AConversion efficiency: 85%Output
power: 9.9W ---- 3.3V, 15W ---- 5V, 36W ---- 12V, 36W ---- ADJ
Static power consumption: 26mASwitching
frequency: 150KHzOutput
ripple: 15mV ---- no load, better than 60mV ---- 12V @ 2A with load testModule enable: NoneModule
protection: reverse
connection protectionModule features: multiple; low noise, low ripple; with input and output power indicator; with positioning holeModule application: multiple; industrial automation control, LED lighting, industrial control equipment, communication equipment, power equipment, instrumentationModule
weight: 65gModule
size: 101 68 12; length width height (mm)
Module heating: the greater the load, the greater the heating; the output current is greater than 2.5A (or the output power is greater than 10W) and long-term work, please add a heat sinkWorking temperature: 0-70
Civil gradeModule interface:
input: 5.08
-2P; output: 3.81 -4P * 4
multi-channel power supplyModule type: switching
power supplyInput voltage: 13V-32VOutput
voltage: multi-channel; 3.3V, 5V, 12V, ADJ
Output current: 3A (MAX); the single-channel current of the module is maximum 3A, and the total current does not exceed 5AConversion efficiency: 85%Output
power: 9.9W ---- 3.3V, 15W ---- 5V, 36W ---- 12V, 36W ---- ADJ
Static power consumption: 26mASwitching
frequency: 150KHzOutput
ripple: 15mV ---- no load, better than 60mV ---- 12V @ 2A with load testModule enable: NoneModule
protection: reverse
connection protectionModule features: multiple; low noise, low ripple; with input and output power indicator; with positioning holeModule application: multiple; industrial automation control, LED lighting, industrial control equipment, communication equipment, power equipment, instrumentationModule
weight: 65gModule
size: 101 68 12; length width height (mm)
Module heating: the greater the load, the greater the heating; the output current is greater than 2.5A (or the output power is greater than 10W) and long-term work, please add a heat sinkWorking temperature: 0-70
Civil gradeModule interface:
input: 5.08
-2P; output: 3.81 -4P * 4
