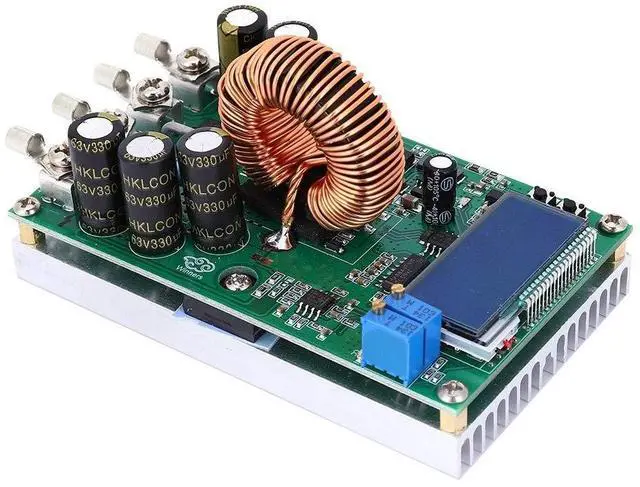

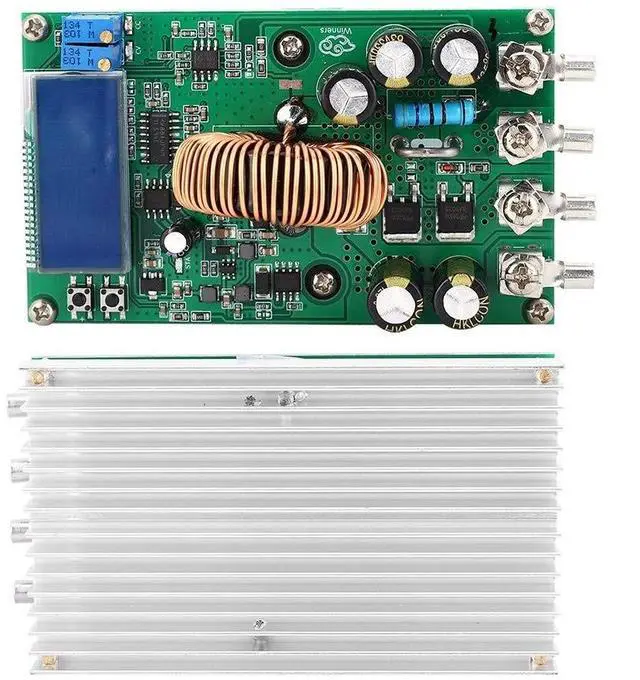

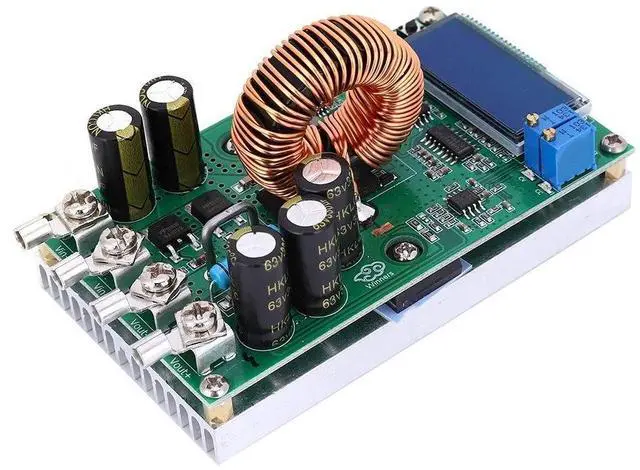

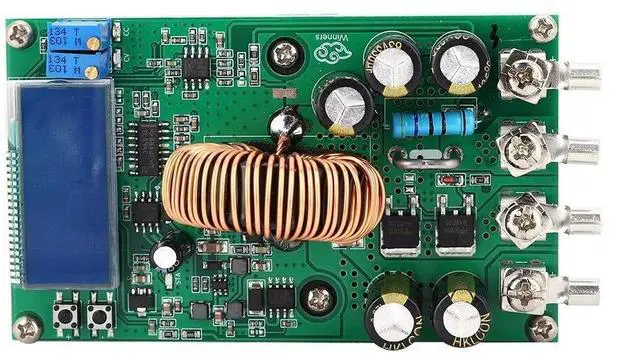

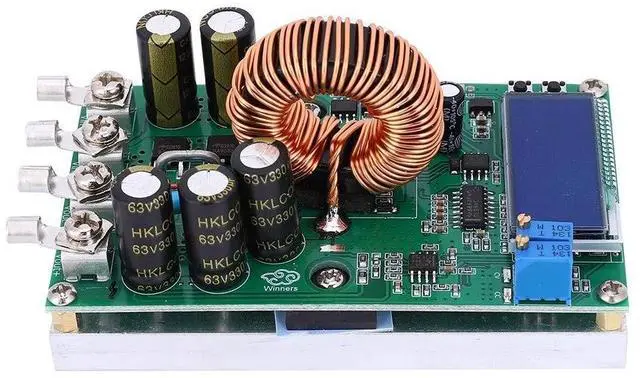

EVTSCAN WD5020 Step-Down Power Supply Module DC-DC 20A Large Power Adjustable Step-Down Module
- Overcurrent protection,more safe and reliable to use.
- Step down voltage adjustable, can be used as battery charger, constant current LED driver module.
- LCD display, dual display of voltage and current.
- With short circuit protection and input reverse polarity protection.
- Wide range of output voltage,large output current and has a maximum conversion efficiency of 95%.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
pecification: Item
Type: Power
Supply ModuleModel: WD5020Input
Voltage: 7~50VOutput
Voltage: 0~36V Continuous Adjustable(Can only be used as a step down module, the input must be greater than the output 1V or more)Output
Current: Adjustable, 20A
MaximumOutput Power: Up to 300WWorking
Frequency: 300KHzConversion
efficiency: up to 95%Short
Circuit Protection: Yes, constant current value currently set by constant currentInput Reverse
Connection Protection: YesOutput
Backflow: No, please add a diode for charging!
Wiring Method: Terminal block or soldering terminal, VIN is input, VOUT
is outputSize: 100 x 60 x 48mm / 3.94 x 2.36 x 1.89 inSetting instructions: The "+" button sets the display mode and is divided into three types: 1.
F-0 mode: display output voltage; 2.
F-1 mode: display input voltage; 3.
F-2 mode: alternately display input and output voltages;
Instructions for use: Press the + button to cycle through the three display modes. Press the - button to save and exit. Press the - button alone toswitch the backlight of the LCD screen.
Package List: 1 x Module1 Bag of Bracket Installation Screw
Type: Power
Supply ModuleModel: WD5020Input
Voltage: 7~50VOutput
Voltage: 0~36V Continuous Adjustable(Can only be used as a step down module, the input must be greater than the output 1V or more)Output
Current: Adjustable, 20A
MaximumOutput Power: Up to 300WWorking
Frequency: 300KHzConversion
efficiency: up to 95%Short
Circuit Protection: Yes, constant current value currently set by constant currentInput Reverse
Connection Protection: YesOutput
Backflow: No, please add a diode for charging!
Wiring Method: Terminal block or soldering terminal, VIN is input, VOUT
is outputSize: 100 x 60 x 48mm / 3.94 x 2.36 x 1.89 inSetting instructions: The "+" button sets the display mode and is divided into three types: 1.
F-0 mode: display output voltage; 2.
F-1 mode: display input voltage; 3.
F-2 mode: alternately display input and output voltages;
Instructions for use: Press the + button to cycle through the three display modes. Press the - button to save and exit. Press the - button alone toswitch the backlight of the LCD screen.
Package List: 1 x Module1 Bag of Bracket Installation Screw
