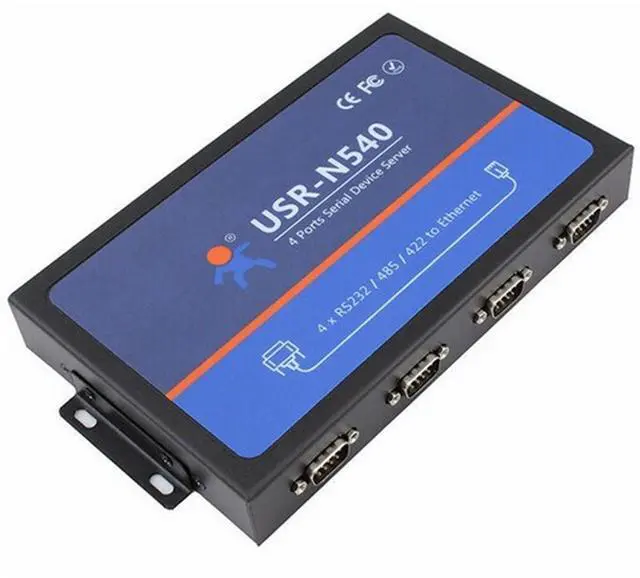

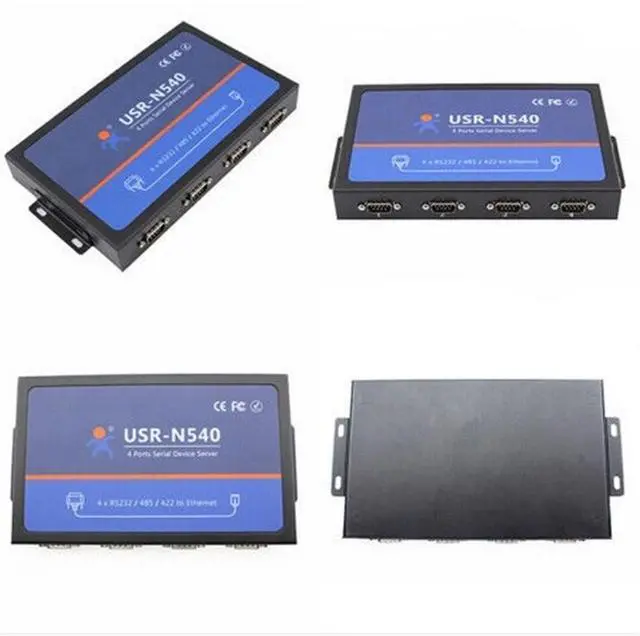

USR-N540 RS232 to Ethernet RS485 to RJ45 RS422 to TCP IP Converter

IntroductionUSR-N540, a Four Serial Device Server, Can Realize Transparent Transmission Between TCP/UDP Data Package And RS232/RS485/RS422 Interface. USR-N540, Based On ARM Processor, Is Of Low Power, Rapid Speed And High Stability. And N540 Is Internally Integrated With TCP/IP Protocol. User Can Easily Realize Embedded Device Networking. Feature? TCP Server, TCP Client, UDP Client, UDP Server And HTTPD Client Work ModeFour Ports Can Work Independently At The Same TimeCan Distinguish Which Serial Port Connects To The Device Via Port NumberSupport Virtual Serial Port And Provide Corresponding Software USR-VCOMSerial Baud Rate From 600bps To 230.4K BpsDNS And DHCP SupportedProvide PC TCP/IP Socket Programming Example Such As VB, C++, Delphi, Android And IOSBuilt-In Webpage; Also Can Customize Webpage For UsersThe Global Unique MAC Address Bought From IEEE (Begin With D8-B0-4C); User Can Define MAC AddressSupport Modbus RTU To Modbus TCPSupport UDP Broadcast FunctionFour Serial Ports; Each Serial Can Work As Rs232, Rs485 Or Rs422; DB9 Female; Provide Rs485/Rs422 ConverterFour Channel
Serial Communication Indicator: TX/RXSupport DC Adapter And 5.08 -2 Terminal Power SupplyReload Button, One Key To Restore Default SettingsRJ45 With Link/Data Indicator Light, Built-In Isolation Transformer And 2 KV Electromagnetic IsolationApplication FieldIndustrial Data Transmission, Industrial AutomationSecurity And Protection Monitoring, Public SecuritySmart Home, Power Control, Environmental Monitoring, Intelligent AgricultureDoor Check On Work Attendance System,? POS System, Rice Selling SystemBuilding Automation System, Power Monitoring, Self-Service Banking System, Telecom Machine Room Monitoring
