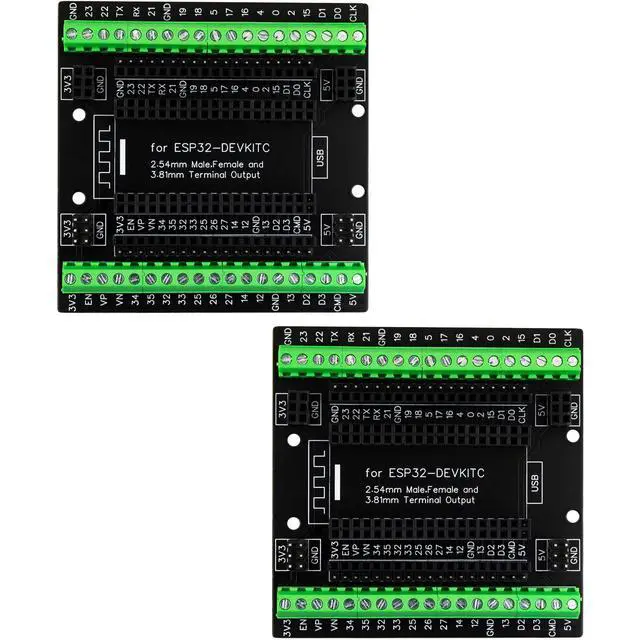

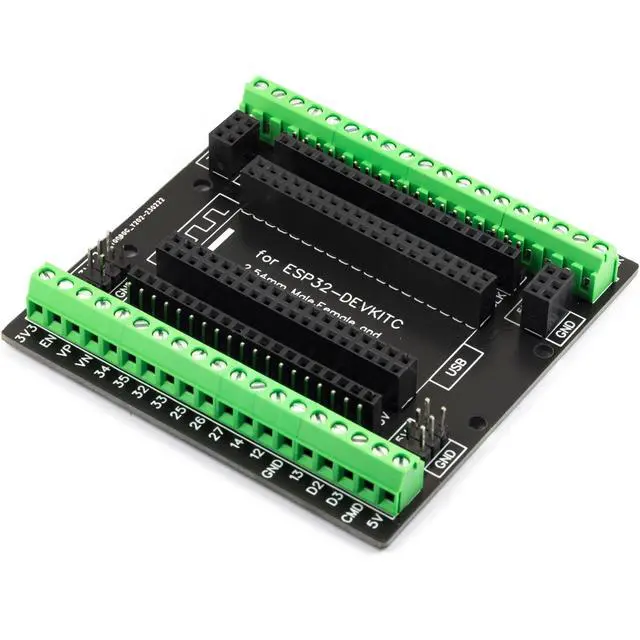

2pcs for ESP32 Super Breakout Board 3.81mm / 0.15" Terminal Blocks GPIO Expansion Board 3 Types Output for ESP32 Module ESP-WROOM-32 ESP32-DevKitC
- Type: ESP32 Super Breakout Board with 3 Types Output, GPIO 1 into 3.

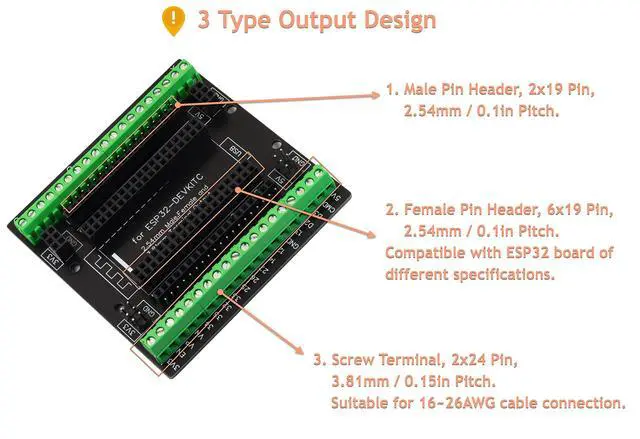

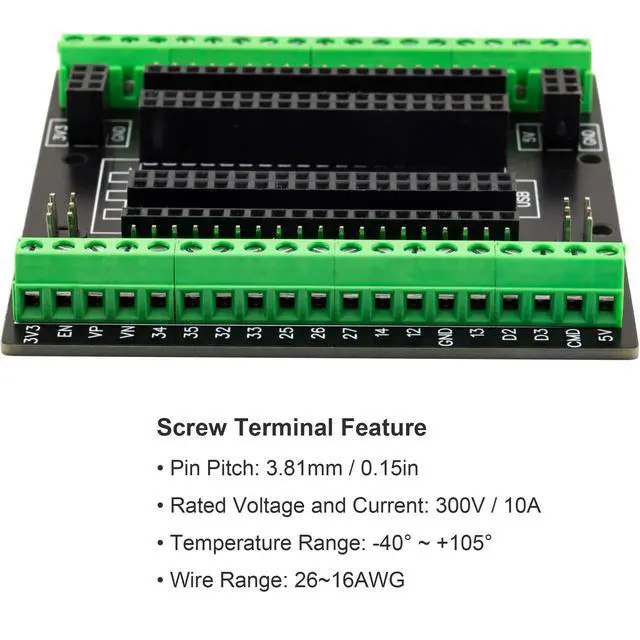

- 3 Types Output: 1) Male Pin Header, 2x19pin, 2.54mm / 0.1" pitch. 2) Female Pin Header, 2x19pin, 2.54mm / 0.1" pitch. 3) Screw Terminal, 3.81mm / 0.15" pitch.
- 38 Pin, each pin has 3 leads, you can insert the 2.54 DuPont male or female, or you can use the terminal directly to access the bare wire, suitable for 16~26AWG cable connection.
- The dual-row input bus allows you to plug in 0.9 "or 1.0" ESP32 modules for maximum compatibility.
- It's fully assembled, no soldering required.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Package Content: 2pcs x ESP32 Breakout Board with 3 Type Output ( 3.81 mm/ 0.15" Terminal).
