PCIe to 2-CH PCIe HAT Adapter for Raspberry Pi 5 ^^ Dual FFC Connectors ^^ Stackable PCIe Gen2 HAT ^^ Expand Pi 5 PCIe Interface ^^ 16-PIN Cable Support

OverviewEnhance the capabilities of your Pi 5 with the PCIe to 2-CH PCIe HAT, a versatile expansion board designed to unlock the full potential of the Pi 5s 16-PIN PCIe Gen2interface. This adapter splits the Pi 5s native PCIe port into two independent PCIe FFC connectors, allowing you to connect and stack multiple PCIe HATs simultaneously. Whether youre building a NAS, a robotics controller, or a multi-device testing rig, this board provides the flexibility to scale your projects effortlessly.

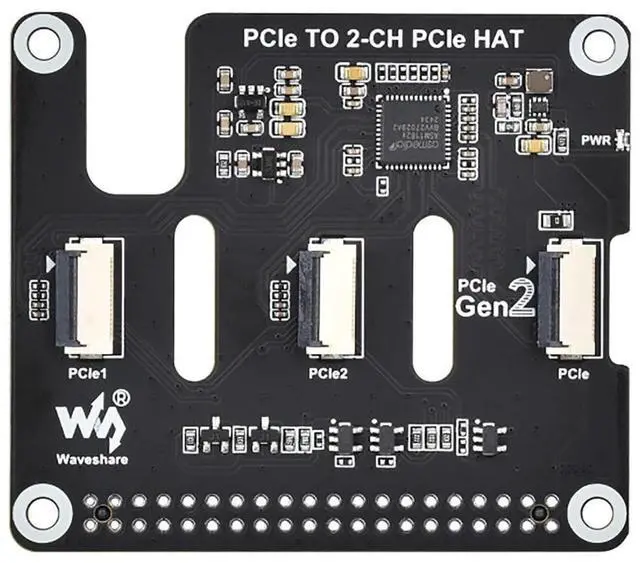

Key Features: Dual
PCIe FFC Expansion: Transform the Pi 5s single PCIe interface into 2-CH PCIe connections, compatible with FFC cables for peripherals like NVMe SSD adapters, SATA controllers, or FPGA modules.
PCIe Gen2 Speed Optimization: Delivers stable PCIe 2.0 bandwidth (5 Gbps per lane), ensuring high-speed data transfer for latency-sensitive applications.
Multi-HAT Stacking Support: Chain multiple PCIe HATs for complex setupsideal for developers needing simultaneous GPU, storage, and networking modules. Raspberry Pi 5

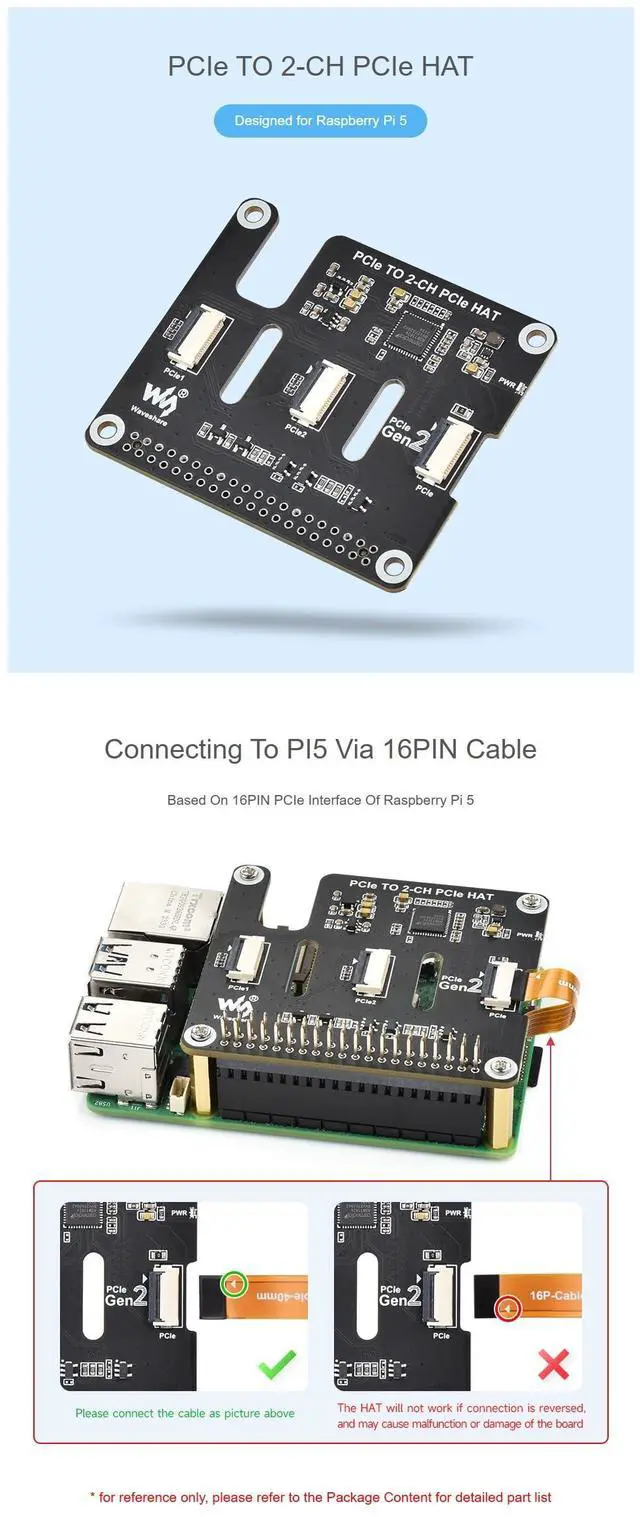

Exclusive Compatibility: Designed specifically for the Pi 5s 16-PIN PCIe port, ensuring perfect alignment and secure connectivity via the included cable.

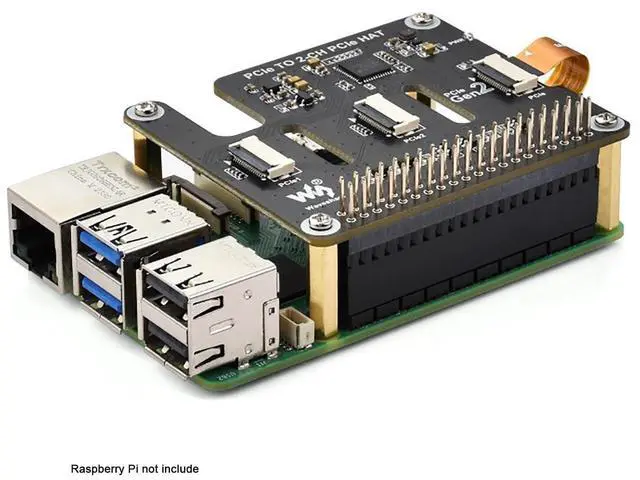

Tool-Free Installation: Simply attach the HAT to the Pi 5s GPIO header and connect the 16-PIN cableno technical expertise required.
Applications: DIY
Server Builds: Add dual NVMe drives or 10G Ethernet cards for a compact, high-performance server.
Robotics & Automation: Stack motor controllers, vision sensors, and communication modules on a single Pi 5.
Prototyping & Testing: Rapidly switch between PCIe devices without reconfiguring hardware.
Technical

Specifications

:
Interface: PCIe Gen2 ( 2.0 x1 mode)Connectors: 2x PCIe FFC slots ( 1.0 mm pitch)Cable: 16-PIN FPC ribbon (15 cm included)

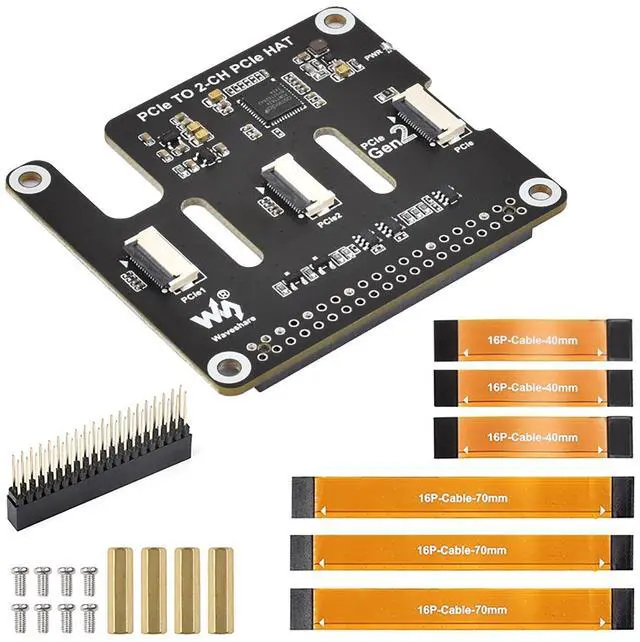

Dimensions: 65 x 30 mm (matches Pi 5 footprint) Package include1. PCIe TO 2-CH PCIe HAT x12. 2*20 Pin header x13. Standoff pack x14. PI-PCIE-Cable-40mm x35. PI-PCIE-Cable-70mm x3
