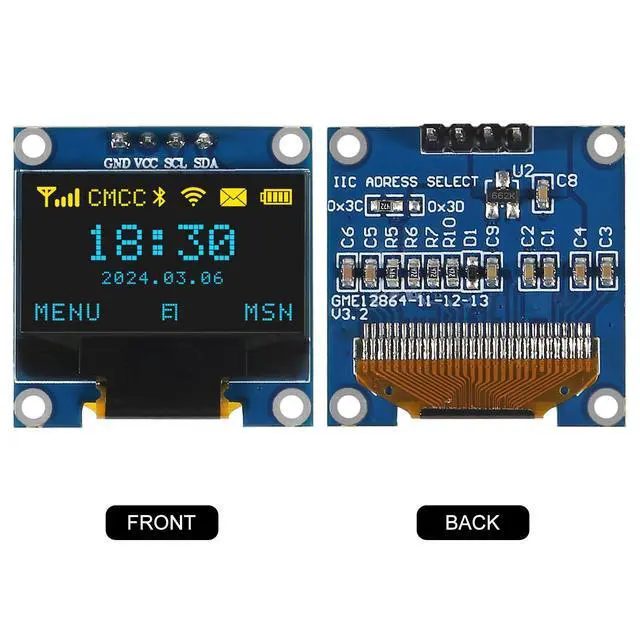

AITRIP 10 Pieces 0.96 Inch OLED I2C IIC Display Module 12864 128x64 Pixel SSD1306 Mini Self-Luminous OLED Screen Board Compatible with Arduino Raspberry Pi(Blue and Yellow)
- 0.96 inch OLED module for showing graphical and textual information directly on your micro-controller projectsEmbedded Driver IC: SSD1306. Communication: I2C/IIC Interface, only need two I / O ports
- 0.96 inch,Resolution: 128 x 64, View angle: > 160, Support voltage: 3.3V-5V DCPower consumption: 0.04W during normal operation, full screen lit 0.08W
- 128 X 64 PIXELS:Needn't backlight, the display unit can self-luminous. It has Super High Contrast, bright and crisp dots, even tiny fonts quite readable.No embedded fonts inside the OLED controller, user can create the fonts through the font generation software.
- Applications: MP3, MP4, watchHead-mounted displaysMeters and other intelligent instrumentsIT is compatible with Arduino Mega, Raspberry pi, 51 MCU, STIM 32, etc
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
AITRIP 10 Pieces 0.96 Inch OLED I2C IIC Display Module 12864 128x64 SSD1306 Mini Self-Luminous Display Board Compatible with Arduino/Raspberry PI -WhiteI2C

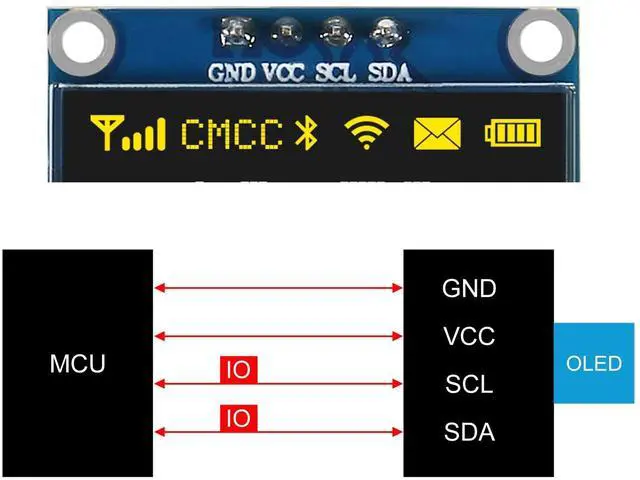

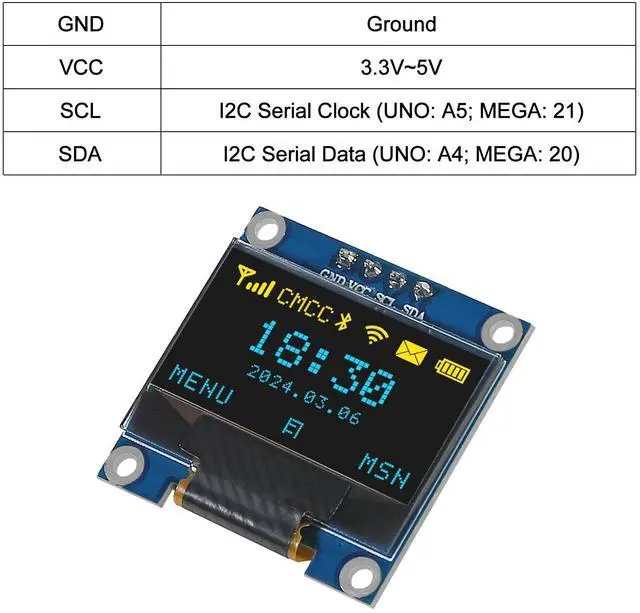

Interface:
GND:
GroundVCC: 3.3V
~5VSCL: I2C
Serial Clock (UNO: A5;
MEGA:
21)SDA: I2C
Serial Data (UNO: A4;
MEGA:
20)Features: OLED self-luminous, no
backlightSize: 0.96D river
IC:
SSD1306Voltage: 3.3V -5V
DCViewing angle: >
160High resolution: 128 x 64Working
Temperature:
-30C~70CDisplay: 2 rows of yellow, 6 rows of blueModule

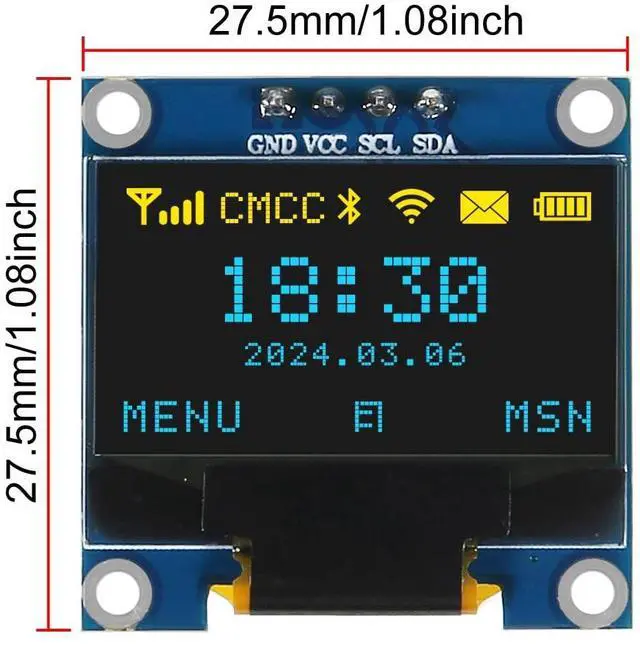

Size: 27mmx
27mm x 4mmScreen material: glass, need good protectionPackage

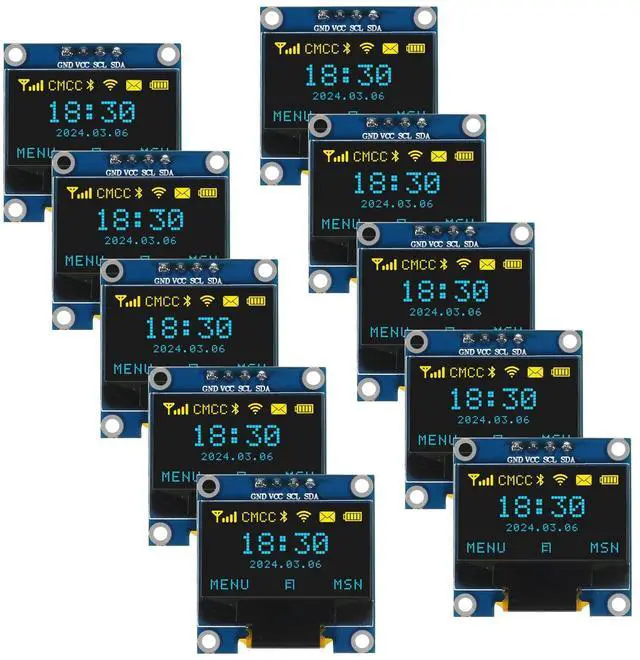

Includes: 10PCS 0.96 Inch OLED Module 12864 128x64 White Driver IIC Serial Display Board Module for Arduino, Raspberry Pi
Interface:
GND:
GroundVCC: 3.3V
~5VSCL: I2C
Serial Clock (UNO: A5;
MEGA:
21)SDA: I2C
Serial Data (UNO: A4;
MEGA:
20)Features: OLED self-luminous, no
backlightSize: 0.96D river
IC:
SSD1306Voltage: 3.3V -5V
DCViewing angle: >
160High resolution: 128 x 64Working
Temperature:
-30C~70CDisplay: 2 rows of yellow, 6 rows of blueModule
Size: 27mmx
27mm x 4mmScreen material: glass, need good protectionPackage
Includes: 10PCS 0.96 Inch OLED Module 12864 128x64 White Driver IIC Serial Display Board Module for Arduino, Raspberry Pi
