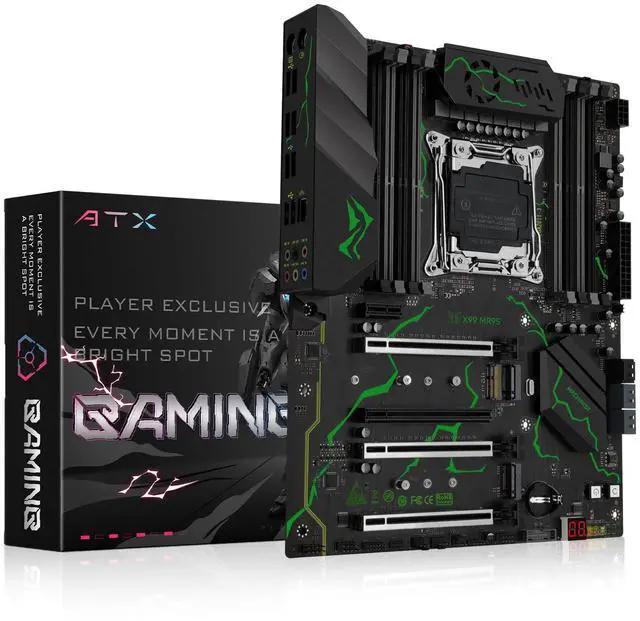

MACHINIST LGA 2011-3 Motherboard, Intel X99 (Intel 5th/6th Gen) Server Motherboard (ATX, PCIe 3.0, DDR4, NVME/SATA M.2, One-Key Boot/Restart, SATA 6Gb/s) for Xeon E5 V3/V4, Core i7 Series MR9S

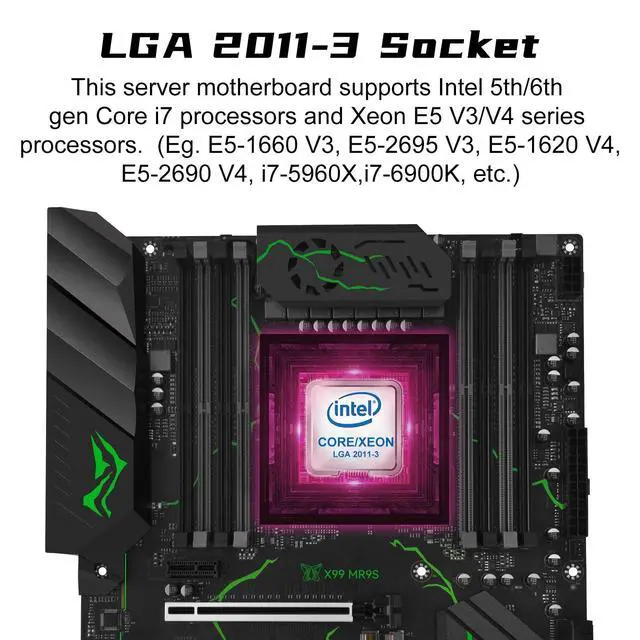

LGA 2011-3 socket: This server motherboard supports Intel 5th/6th generation Core i7 processors and Xeon E5 V3/V4 series processors. (Eg. E5-1660 V3, E5-2695 V3, E5-1620 V4, E5-2690 V4, i7-5960X, i7-6900K, etc. ) ^^ 8

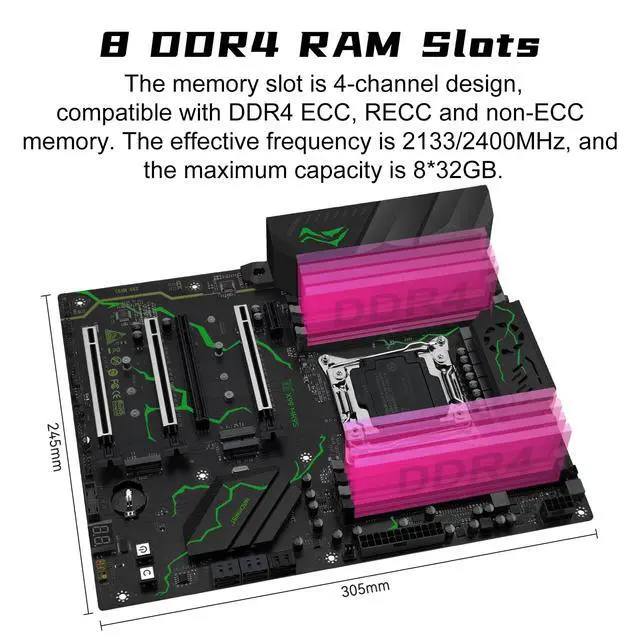

DDR4 slots: The memory slots of this X99 motherboard are 4-channel design, compatible with ECC and non-ECC memory. The effective frequency is 2133/2400MHz, and the maximum capacity is 8*32GB ^^ Dual M.

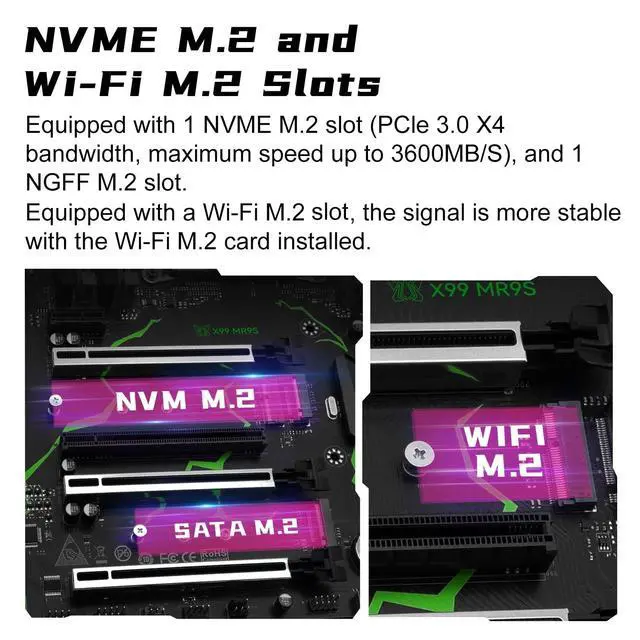

2: This ATX motherboard is equipped with flash NVME M. 2 (PCIe 3.0 X4 bandwidth) and AHCI M. 2 (SATA 6Gbps) slots, of which NVME M. 2 maximum speed Up to 32Gbps ^^ 5 *

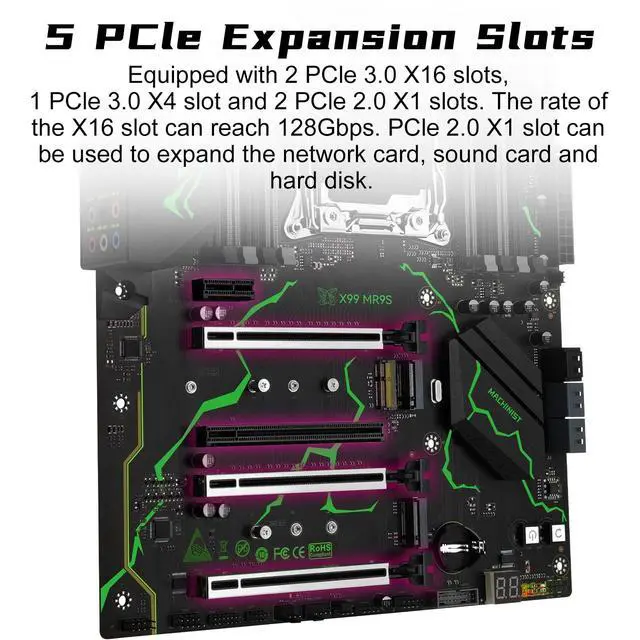

PCIe Expansion Slots: The LGA 2011-3 motherboard is equipped with 2 * PCIe 3.0 X16 slots, 1 * PCIe 3.0 X4 slots (with steel casing) and 2 * PCIe 2.0 X1 slots. Each lane can support a rate of 8Gbps, and the rate of the X16 slot can reach 128Gbps. The 2 * X16 slots can be used together. The X1 slot can be used to expand the network card, sound card and hard disk ^^
Other powerful components: One-key on/off and one-key restart, VRM cooling fan, 7.1 channel audio, digital diagnostic card and 7.5 * 5.5 cm aluminum alloy heat sink ^^
The package includes: 1*CPU fan bracket, 1*SATA cable, 1*motherboard.
Warm tips:
1. The CR2032 battery on the motherboard has been removed. It is not included in the package. Please purchase it yourself.
2. The user manual is not included in the package. You can download the manual file on the product details page ^^
Note: If you need the motherboard to enter the BIOS, please press the "Del" key continuously after pressing the startup key. Please do not wait until the startup LOGO screen appears on the computer screen before operating, because it is already too late. If you don't know where to download the driver, it is recommended to use the win 10 system, which can help you solve all driver problems
