  • $86.99
  • Free 30-day Returns
  • Limit 99999 per customer.
    Sold by FortressTek
    5 (1 seller ratings)

    Shipped by FortressTek

    Price alert
    Add to wish list
    Shop it at NeweggBusiness.

    Meet Your Seller

    FortressTek
    Shop All Astro Gaming Products | Visit FortressTek Store
    FOLLOW

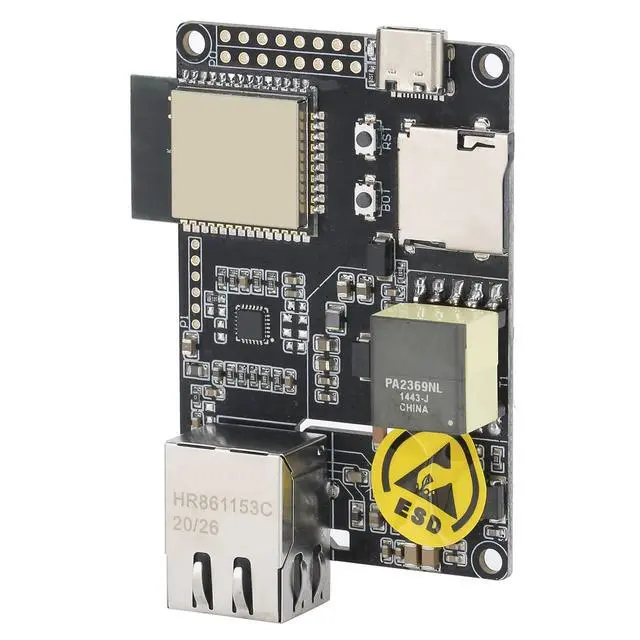

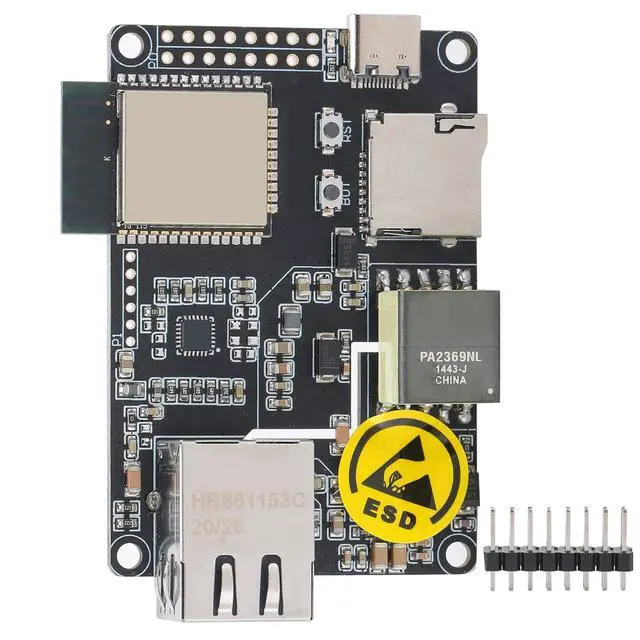

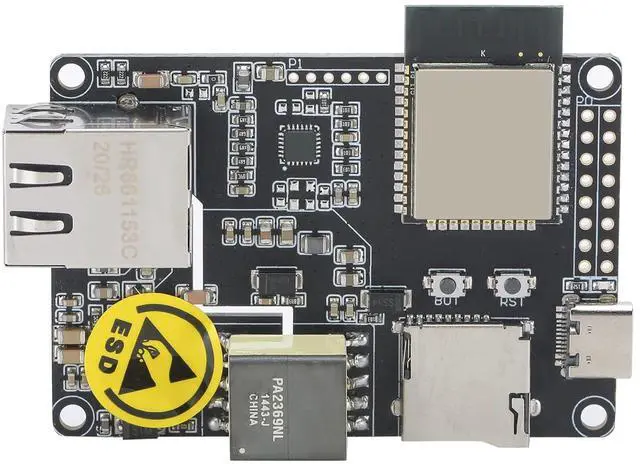

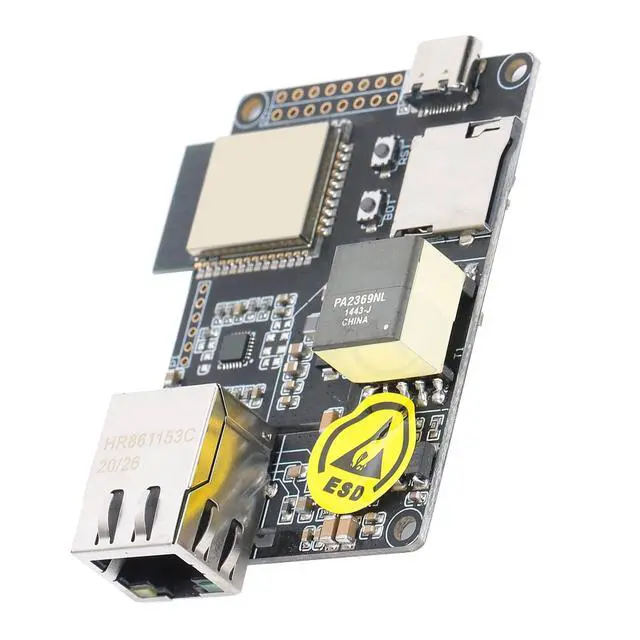

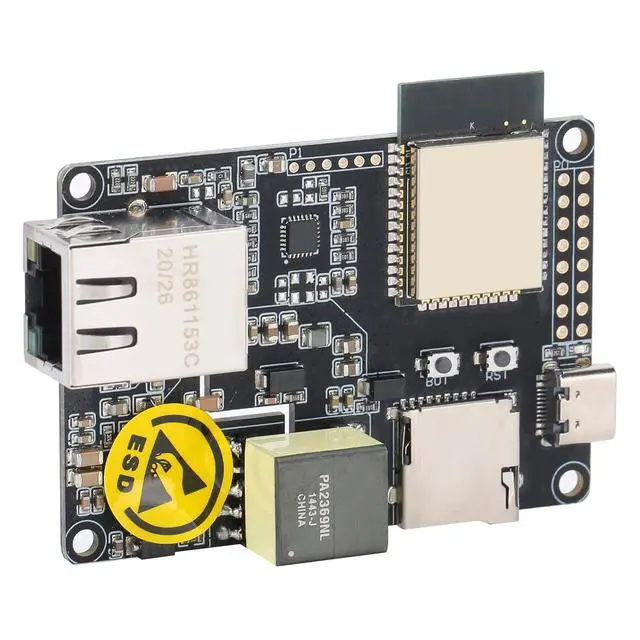

    Development Board,oimex -poe, LAN poe, ethernet,TInternetPOE LAN8720A Chip Ethernet Adapter Expansion Board Programmable Hardware

    Be the first to review this product...
    • High frequency , high sensitivity Protocol Complies with the Bluetooth V4.2BR , EDR and BLE standards. High frequency with sensitivity of 97 dBm NZIF class 1 receiver , class 2 class 3 transmitter AFH. o frequency CV SBC o frequency.
    • MORE INFORMATION -- Software Development Support cloud server development /K for user firmware development. Networking protocol IPv4IPv6SSLTCP/UDP/HTTP/FTP/MQTT. User Configuration AT + Instruction set, cloud server, for Android/iOS app/OS X/FreeRTOS.
    • About ProductStandard FCC/CERED/IC/TELEC//SRRC/NCC(ESP 32 chip). Protocol 802.11 b/g/n, (802.11n, speed up to150Mbps)AMPDU and polymerization, support 0.4S interval.
    • Frequency range 2.4GHz2.5GHz(2400M2483.5M). Transmit Power 22dBm. Communication distance is about 300m/384.3ft.
    • Software Development: Software development Support cloud server development /K for user firmware development. Networking protocol IPv4IPv6SSLTCP/UDP/HTTP/FTP/MQTT. User Configuration AT + Instruction set, cloud server, for A
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    1. Standard FCC/CERED/IC/TELEC//SRRC/NCC (ESP 32 chip). Protocol 802.11 b/g/n, ( 802.11 n, speed up to150Mbps)AMPDU and AMSDU polymerization, support 0.4S interval. 2. Frequency range 2.4GH z 2.5GH z(2400M 2483.5M ). Transmit Power 22dBm. Communication distance is about 300m/ 384.3 ft. 3. Protocol Meet Bluetooth V 4.2BR /EDR and BLE standard. Radio frequency with 97dBm sensitivity NZIF receiver Class1, Class2&Class3 emitter AFH. Audio frequency CVSD&SBC audio frequency. 4. WiFi Mode Station/SoftAP/SoftAP+Station/P2P. Security mechanism WPA/WPA2/WPA2Enterprise/WPS. Encryption Type for AES/RSA/ECC/SHA. Firmware upgrade UART download/OTA)Through network/host to download and write firmware).

    5. Software Development Support cloud server development /SDK for user firmware development. Networking protocol IPv4IPv6SSLTCP/UDP/HTTP/FTP/MQTT. User Configuration AT + Instruction set, cloud server, for Android/iOS app/OS X/FreeRTOS.
    Spec: Item
    Type: Ethernet
    Adapter HardwareMaterial: for PCB
    Color: As
    Pictures ShownWeight: Approx.
    31g/ 1.1 ozChipset: --WROOM, LAN8720A Ethernet chip, SI 3404
    Power Management ChipFlash:
    4MBpSRAM:
    8MB: 520
    kB: BOT, RestExternal
    Device: Small Memory Slot, Type-C Interface, PA2369NL 1825-S Transformer, HR861153C Ethernet-POE interfaceUSB to
    TTL: CP2104Modular
    Interface: Memory, UART, SPI, I2C, PWM, I2S, ADC
    On-board Clock: 32.768MH z
    Crystal OscillatorOperating Temperature Range: -40-+85Power
    Supply Input: Type-C 5V, HR861153C Ethernet-POE interface 50VWorking
    Voltage: 2.7V - 3.6VM aximum
    Output Current: About 1.2AC harging
    Current:
    500mAInterface: Type-CPackage
    List: 1 x Ethernet Adapter1 x Pin
