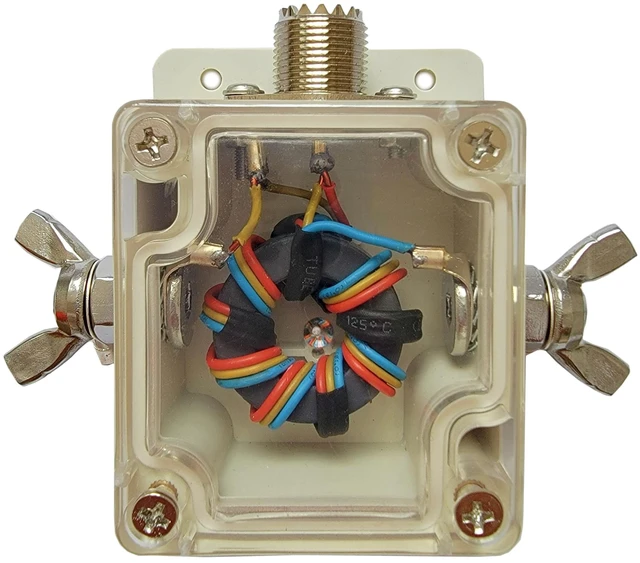

Radio Balun Antennas 1-30Mhz Shortwave Radio HAM Equipment NXO-100 Magnetic Balance Kit DIY
- Product not capable of emitting radio frequency energy..HAM Balance Equipment Kits , which can work in the short-wavelength range of 1-30MHz .
- It can withstand 100W-200W. It can easily produce high-performance balun to ensure efficient radio transmission and reception. It allows you to fully enjoy the fun of DIY.
- 1:1 balun is suitable for bipolar DP antenna (inverted V positive V) antenna such as Yagi (40-100). 1:4 balun for LOOP antenna and Winton antenna (200-400).
- 1:9 balun is suitable for long-line antennas, with manual day adjustment or automatic day adjustment.

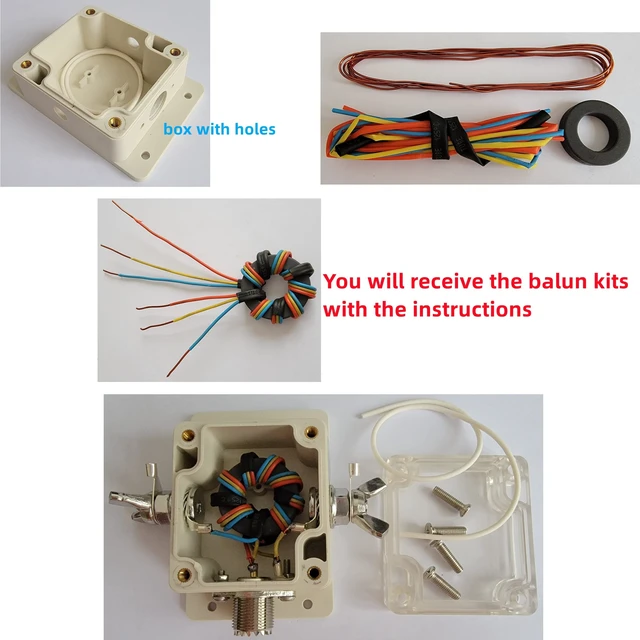

- Radio Balun Antennas DIY Kits..You will receive the balun kits with the instructions.Or please contact the seller for the PDF instructions. Enjoy.Thank you
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Toroid model: NXO-100.
Toroid material: nickel zinc ferrite.
Toroid Magnetic conductivity: 100.
Toroid Overall dimensions: outer diameter 31 mm * height 7 mm * diameter 18 mm..
Center frequency: 15 MHZ
Application frequency: 1-30 MHZ

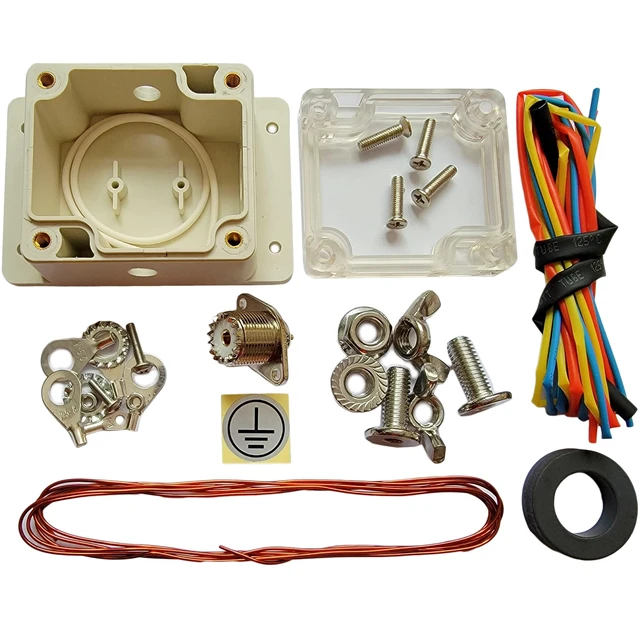

Waterproof Case Size: 65mm * 60mm * 35mmThis kit uses a low-permeability nickel zinc NXO-100 high-frequency magnetic, high-quality wire, waterproof box package, stainless steel bolts, Q9 seat. It production 1:1, 4:1, 9:1 the package using the the large size NXO-100 magnetic ring and 1 mm in diameter enameled wire. It can work in the 1-30MHz shortwave, can withstand high power of 100W-200W, such as magnetic Barron's ideal kit.
Types of antennas: 1: 1, 1: 4, 1: 9 three production program antenna optional, 1: 1 and 1: 9 is three enameled hinge, 1: 4 is two enameled wire. 1: 9 balun suitable long-term antenna, with manual or automatic antenna tuner tune-day use. 1: 4 balun applicable LOOP antenna to antenna and Winton (200-400). 1: 1 balun antenna suitable for bipolar DP (inverted V n V), such as Yagi antenna (40-100). Kits include 1.5 m wire, please fold to 3 fold, each fold 0.5 m.

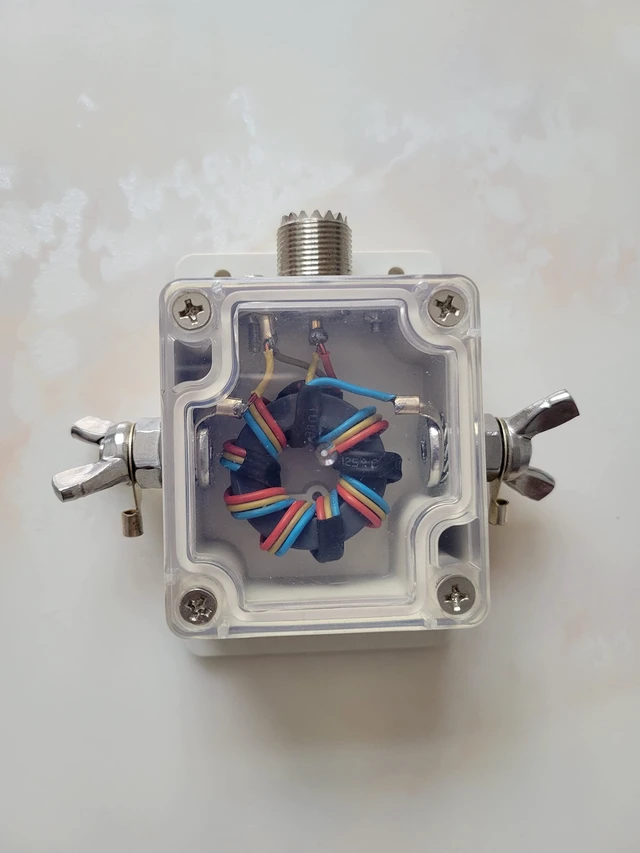

1: 1 winding method: three-wire twisted around 7 laps, stranding extent (about 3-4 times per centimeter) 1: 4
Winding method: two-wire twisted around 8 laps, stranding extent (about 3-4 times per centimeter) 1: 9
Winding method: three-wire twisted around 10 laps, stranding extent (about 3-4 times per centimeter)NOTE: It is bulk package, not a finished product, it need to DIY.
Pack: 1x radio balun kit
Toroid material: nickel zinc ferrite.
Toroid Magnetic conductivity: 100.
Toroid Overall dimensions: outer diameter 31 mm * height 7 mm * diameter 18 mm..
Center frequency: 15 MHZ
Application frequency: 1-30 MHZ
Waterproof Case Size: 65mm * 60mm * 35mmThis kit uses a low-permeability nickel zinc NXO-100 high-frequency magnetic, high-quality wire, waterproof box package, stainless steel bolts, Q9 seat. It production 1:1, 4:1, 9:1 the package using the the large size NXO-100 magnetic ring and 1 mm in diameter enameled wire. It can work in the 1-30MHz shortwave, can withstand high power of 100W-200W, such as magnetic Barron's ideal kit.
Types of antennas: 1: 1, 1: 4, 1: 9 three production program antenna optional, 1: 1 and 1: 9 is three enameled hinge, 1: 4 is two enameled wire. 1: 9 balun suitable long-term antenna, with manual or automatic antenna tuner tune-day use. 1: 4 balun applicable LOOP antenna to antenna and Winton (200-400). 1: 1 balun antenna suitable for bipolar DP (inverted V n V), such as Yagi antenna (40-100). Kits include 1.5 m wire, please fold to 3 fold, each fold 0.5 m.
1: 1 winding method: three-wire twisted around 7 laps, stranding extent (about 3-4 times per centimeter) 1: 4
Winding method: two-wire twisted around 8 laps, stranding extent (about 3-4 times per centimeter) 1: 9
Winding method: three-wire twisted around 10 laps, stranding extent (about 3-4 times per centimeter)NOTE: It is bulk package, not a finished product, it need to DIY.
Pack: 1x radio balun kit
