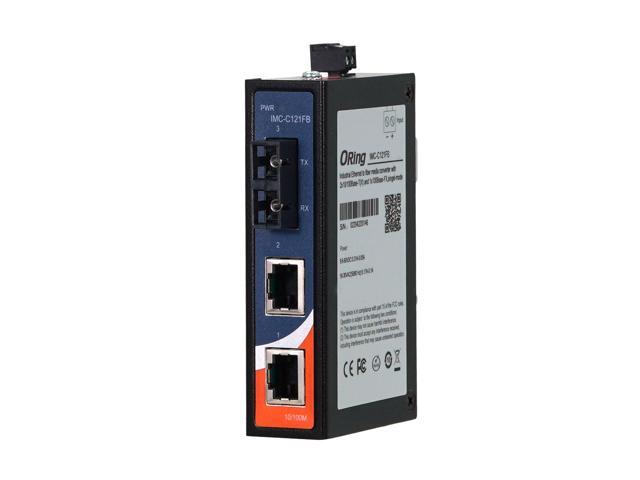

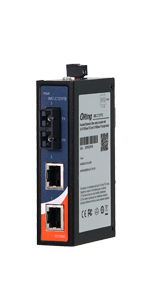

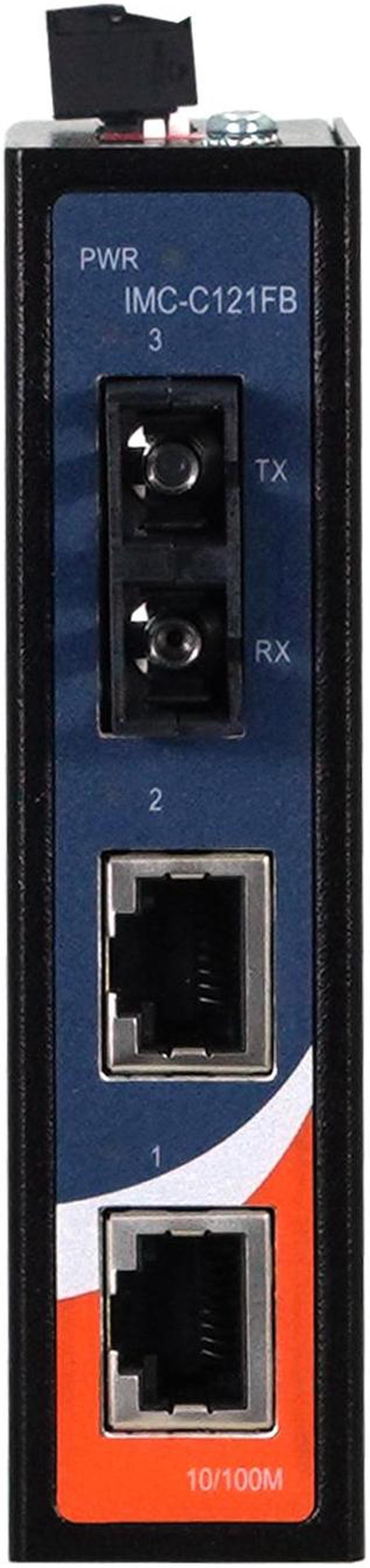

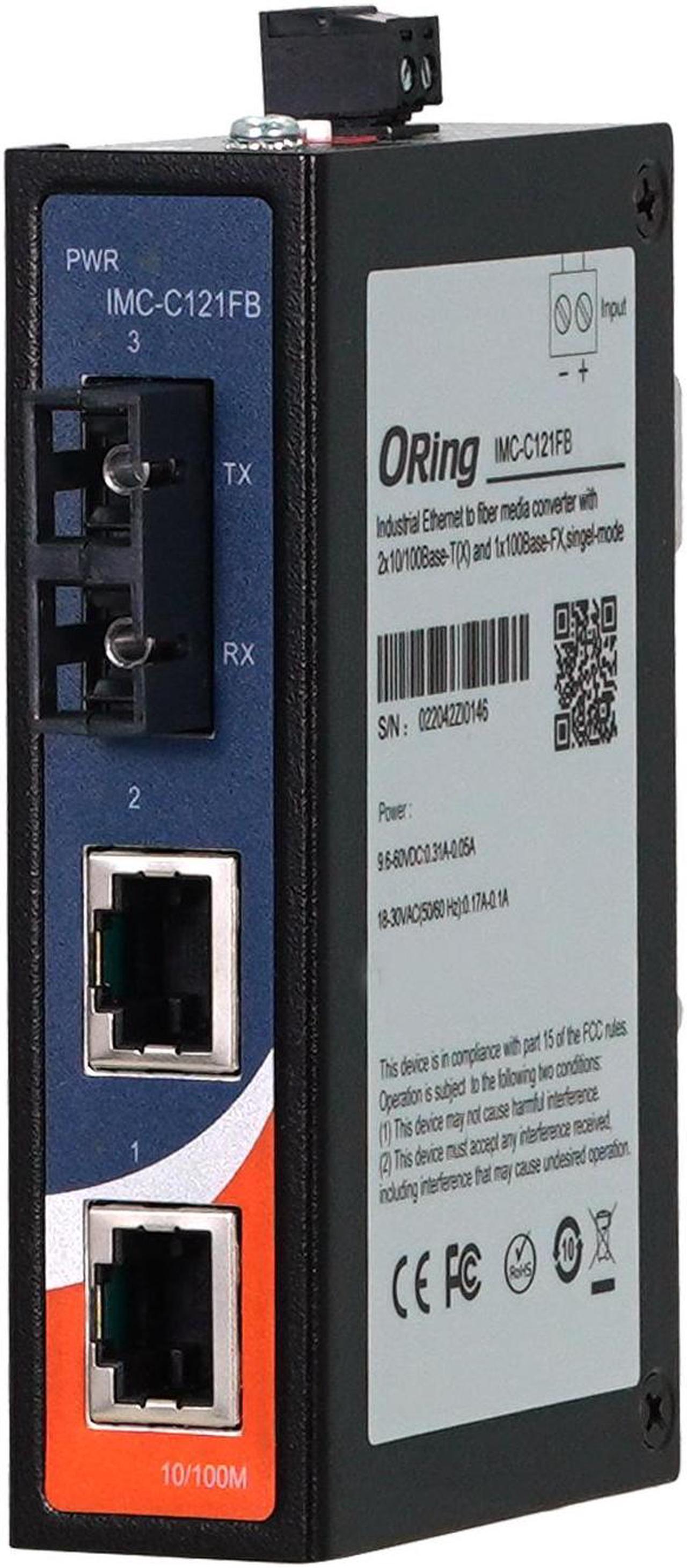

    ORing IMC-C121FB-MM-SC - Industrial Ethernet to Fiber Media Converter

    Be the first to review this product...
    • Providing 2x 10/100Base-T(X) ports and 1x 100Base-FX SC Multi-mode fiber port, this device ensures a reliable fiber optic connection of up to 2km.
    • Built-in broadcast storm protection and QoS to process critical data in heavy traffic.
    • The IMC-C121FB series is packaged in a compact IP40 enclosure that allows DIN-rail mounting. With its plug-and-play functionality, the converter can be easily integrated into existing network infrastructures without the need for complex configurations.
    • Industrial Design - Fanless, standard operating temperature (-10 to 60°C), CE/FCC certified
    • Worry-Free Guarantee: Each ORing's converter undergoes rigorous reliability and performance testing. We aim to offer customers with high quality products. Please contact us via Newegg if any problem. "
    +
    +
    Overview
    Specs
    Reviews

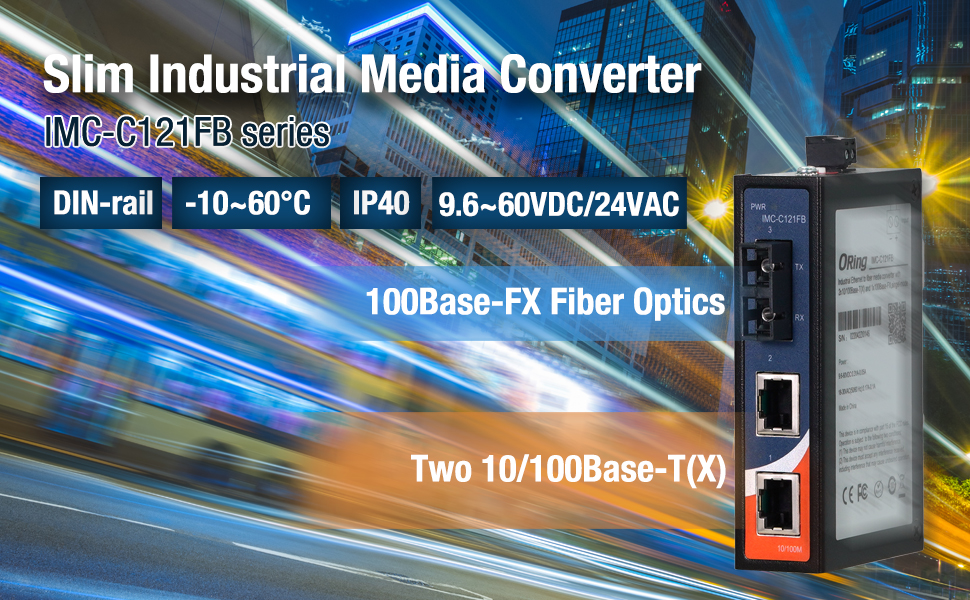

    IMC-C121FB series



    The IMC-C121FB series is an industrial media converter supporting media conversion from 100BASE-FX fiber to 10/100BASE-TX.

    Operating at 1310 nm with SC connectors, its multi-mode model cover distances up to 2 km, while single-mode model extend up to 30 km, offering an efficient solution for network monitoring.

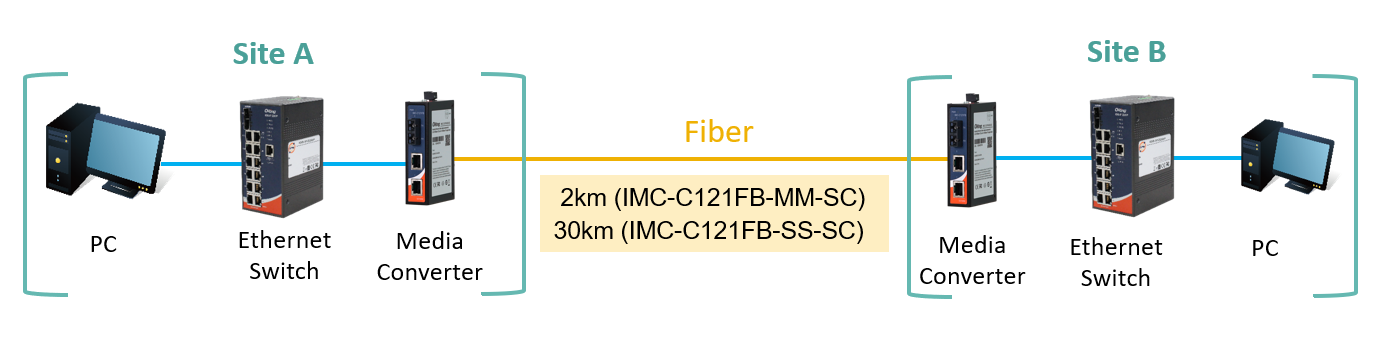

    use case
    Target Application
    image for this item

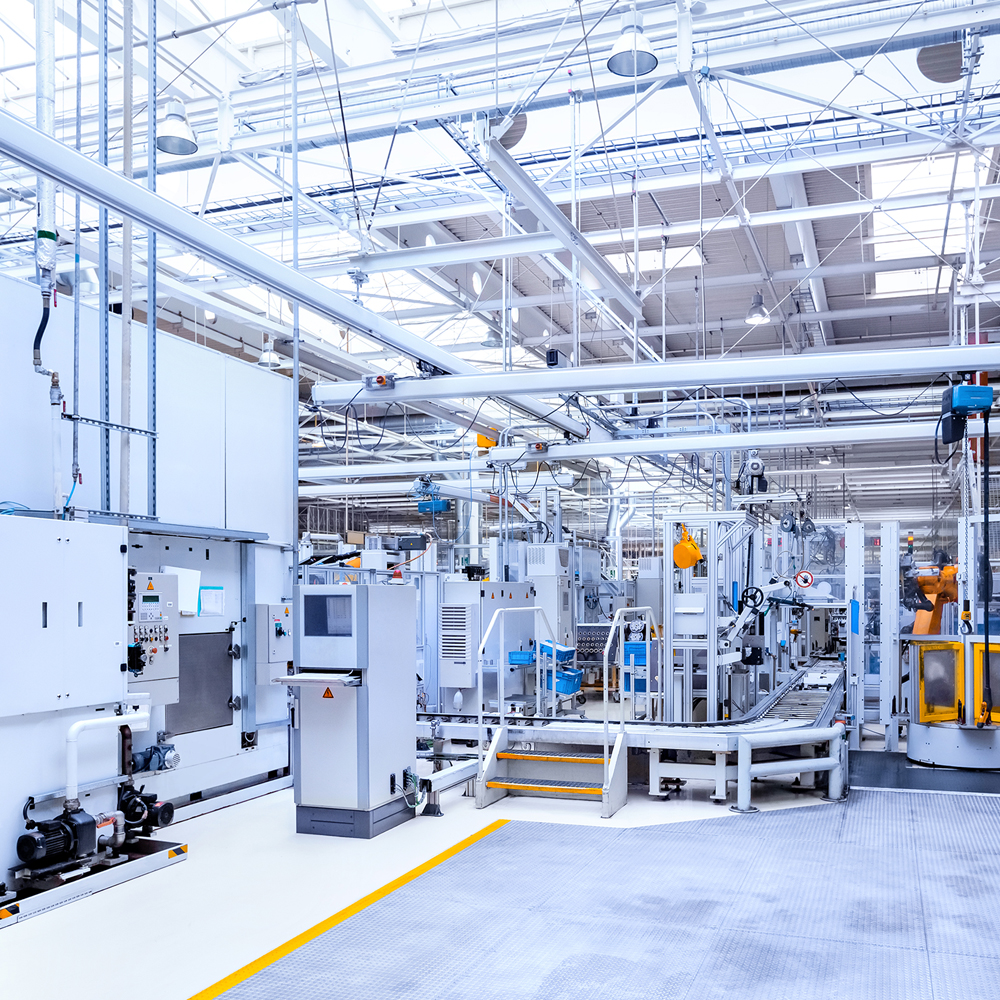

    Industrial Automation
    image for this item
    Surveillance
    ITS
    ITS
    Facilities
    Facilities
    Products
    Media converter IMC-C121FB-MM-SC
    Media Converter IMC-C121FB-SS-SC
    10/100 Base-T(X) Ports in RJ45 2 2
    100Base-F(X) Port in SC 1 1
    Fiber Mode Multi-mode Single-mode
    Fiber Wavelength 1310nm 1310nm
    Fiber Typical Distance 2km 30km
    Power Input 9.6~60VDC/ 24VAC (18~30 VAC) 9.6~60VDC/ 24VAC (18~30 VAC)
    Enclosure IP-40 IP-40
    Operating Temperature -10 to 60°C -10 to 60°C
    EMC CE EMC (EN 55035, EN 55032), FCC Part 15 B CE EMC (EN 55035, EN 55032), FCC Part 15 B
    Safety EN/ IEC 62368-1 EN/ IEC 62368-1
