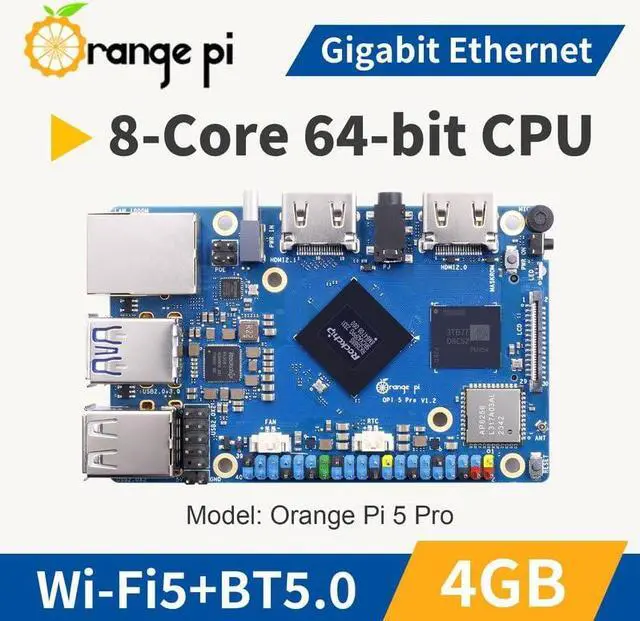

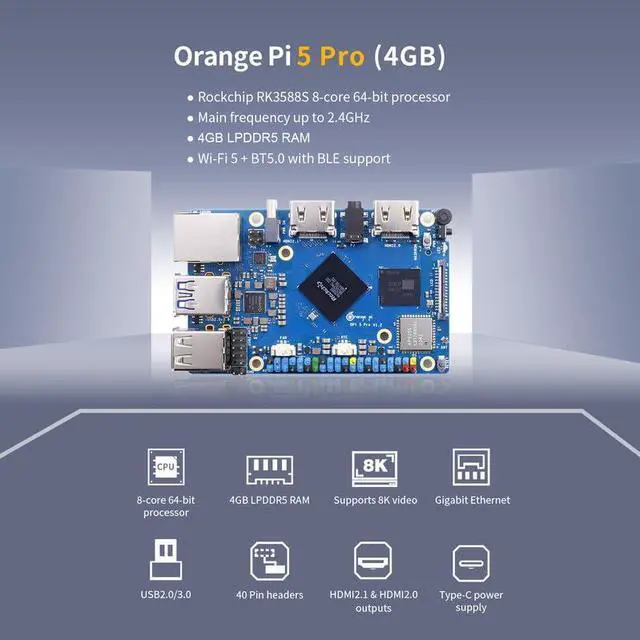

Orange Pi 5 Pro 4GB LPDDR5 Rockchip RK3588S 8-Core 64-Bit Single Board Computer with eMMC Socket, Development Board Run Orange Pi/Ubuntu/Debian/Android 12 OS (5 Pro 4GB+5V5A Type C Power Supply)
- [LPDDR5 Memory Standard]: Orange Pi 5 Pro uses Rockchip RK3588S 8-Core(4-core A76 and 4-core A55) 64-Bit processor. With 4GB/8GB/16GB LPDDR5, Orange Pi 5 Pro can meet the edge computing needs of most end devices. Up to 2.4GHz main frequency and 8K display processing, it also supports WiFi 5, Bluetooth 5.0 and eMMC module.
- [WiFi/Bluetooth/Gigabit Ethernet]: Built-in 2.4G/5G dual-band Wi-Fi 5 and Bluetooth 5.0 with BLE support for stronger and more stable signals and easier and faster network transmission. Besides, Orange Pi 5 Pro supports Gigabit Ethernet with PoE, it can be widely used in factory automation, building automation and other scenarios.
- [Rich Display Ports]: Equipped with M.2 M-Key slot, Orange Pi 5 Pro supports access to NVMe SSD or SATA SSD to increase massive data storage space and meet the needs of fast read/write and high-capacity storage. It offers HDMI output, GPIO ports, USB, 3.5 mm headphone jack, Gigabit LAN port, M.2 M-key slot, MIPI DSI video
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Hardware Parameters
SOC: Master ChipRockchip RK3588S (8nm LP process)
CPU: 8-core 64-bit processorbig.
LITTLE Architecture: 4-core Cortex-A76 and 4-core Cortex-A55, big core cluster is 2.4GH z, and little core cluster is 1.8GH z frequency.
GPU: Arm Mali-G610 Built-in 3D GPU Compatible with OpenGL ES 1.1 / 2.0 / 3.2, OpenCL 2.2 and Vulkan 1.2
NPU: Embedded NPU supports INT4/INT8/INT16 mixed operation, with up to 6TOPS computing power
PMU: RK806-1
RAM: LPDDR5 496PIN: 4GB/8GB/16GB (optional)
Memory: eMMC
socket: supports eMMC module (optional) SPI Flash (default empty)
Note: either eMMC socket or on-board SPI Flash is preferred. MicroSD (TF) slot M. 2
M-KEY slot: NVMe SSD or SATA SSD
USB: USB 3.1 Gen1 * 1; USB 2.0 1;
USB HUB: USB 2.0 2 (TYPE A) +UAB 2.02 row of pins
Video Output: HDMI 2.1 up to 8K @60Hz HDMI 2.0, up to 4K @60Hz MIPI DSI 4 Lane, up to 4K @60Hz
Camera: 2MIPI 4 Lane
Audio:
CODEC: ES8388 3.5 mm headphone jack audio input/output
Input: onboard MIC HDMI 2.1 eARC
Ethernet: 10/100/1000Mbps Ethernet with PoE+ support (PoE+ HAT required)
Wi-Fi+BT Module: Onboard Wi-Fi5+BT 5.0 /BLE module: AP6256
PCIe M. 2
M-KEY Socket: M. 2 M-Key slot supports access to NVMe SSD or SATA SSD
Expansion Port: Dual-row
pin: 2.54 mm 40Pin Supports DC 5V and 3.3V power outputs Configurable UART, PWM, I2C, SPI, CAN, GPIO and other functional interfaces
Button: 1* MaskROM, 1*RESET, 1 * POWER

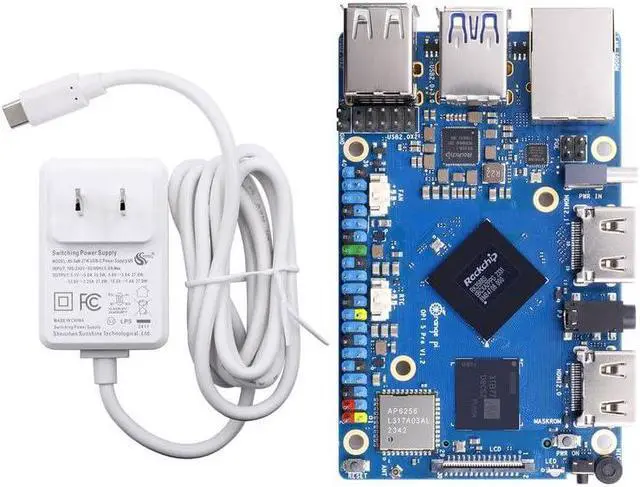

Power Source: Supports Type-C power supply, 5V @ 5A
LED: RGB LED tri-color indicator
FAN: 5V 2PIN 1.25 mm socket
RTC: 3V 2PIN 1.25 mm socket
Debugging: Debug serial port UART included in 40PIN expansion port
Supported OS: Orangepi OS (Droid), Orangepi OS (Arch), Ubuntu, Debian, Android12
SOC: Master ChipRockchip RK3588S (8nm LP process)
CPU: 8-core 64-bit processorbig.
LITTLE Architecture: 4-core Cortex-A76 and 4-core Cortex-A55, big core cluster is 2.4GH z, and little core cluster is 1.8GH z frequency.
GPU: Arm Mali-G610 Built-in 3D GPU Compatible with OpenGL ES 1.1 / 2.0 / 3.2, OpenCL 2.2 and Vulkan 1.2
NPU: Embedded NPU supports INT4/INT8/INT16 mixed operation, with up to 6TOPS computing power
PMU: RK806-1
RAM: LPDDR5 496PIN: 4GB/8GB/16GB (optional)
Memory: eMMC
socket: supports eMMC module (optional) SPI Flash (default empty)
Note: either eMMC socket or on-board SPI Flash is preferred. MicroSD (TF) slot M. 2
M-KEY slot: NVMe SSD or SATA SSD
USB: USB 3.1 Gen1 * 1; USB 2.0 1;
USB HUB: USB 2.0 2 (TYPE A) +UAB 2.02 row of pins
Video Output: HDMI 2.1 up to 8K @60Hz HDMI 2.0, up to 4K @60Hz MIPI DSI 4 Lane, up to 4K @60Hz
Camera: 2MIPI 4 Lane
Audio:
CODEC: ES8388 3.5 mm headphone jack audio input/output
Input: onboard MIC HDMI 2.1 eARC
Ethernet: 10/100/1000Mbps Ethernet with PoE+ support (PoE+ HAT required)
Wi-Fi+BT Module: Onboard Wi-Fi5+BT 5.0 /BLE module: AP6256
PCIe M. 2
M-KEY Socket: M. 2 M-Key slot supports access to NVMe SSD or SATA SSD
Expansion Port: Dual-row
pin: 2.54 mm 40Pin Supports DC 5V and 3.3V power outputs Configurable UART, PWM, I2C, SPI, CAN, GPIO and other functional interfaces
Button: 1* MaskROM, 1*RESET, 1 * POWER
Power Source: Supports Type-C power supply, 5V @ 5A
LED: RGB LED tri-color indicator
FAN: 5V 2PIN 1.25 mm socket
RTC: 3V 2PIN 1.25 mm socket
Debugging: Debug serial port UART included in 40PIN expansion port
Supported OS: Orangepi OS (Droid), Orangepi OS (Arch), Ubuntu, Debian, Android12
