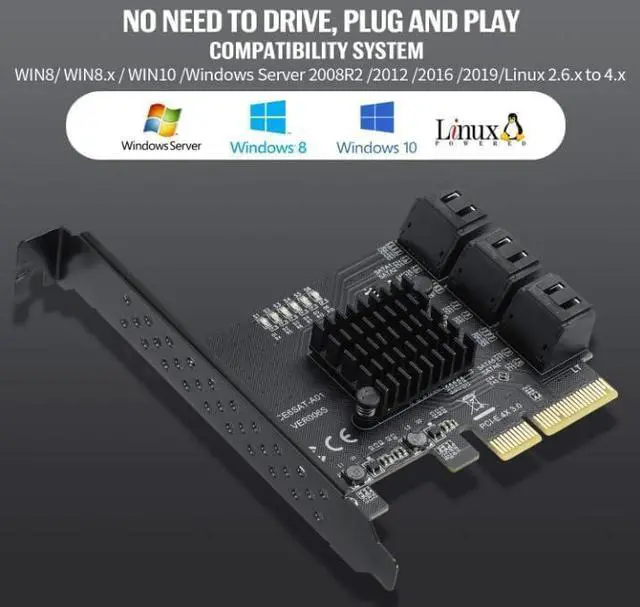

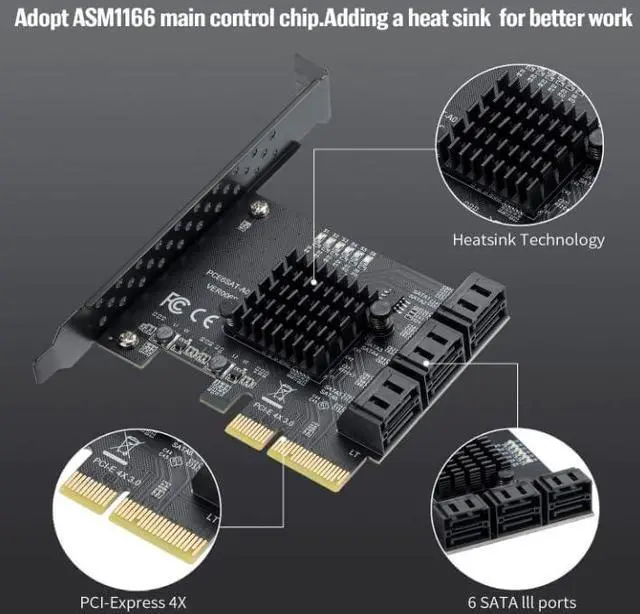

YBBOTT 6 Port Card with 6 SATA Cables PCI Express 4X Sata Controller PCI Expansion Card 3.0 6Gbps Hard Drive Adapter Supports WIN/10/8/7/XP/LINUX

Specifications

:

Supports hot swap

PCIE requires a slot higher than V 2.0

For V 1.0, the speed will not exceed 250 M
Supports FIS based on port multiplier switch or command switch

Supports AHCI 1.0 mode and IDE mode Supports native command queue NCQ

Supports communication speeds of 6.0 Gbit / s, 3.0 Gbit / s, 1.5 Gbit / s Supports Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x and Gen 3i

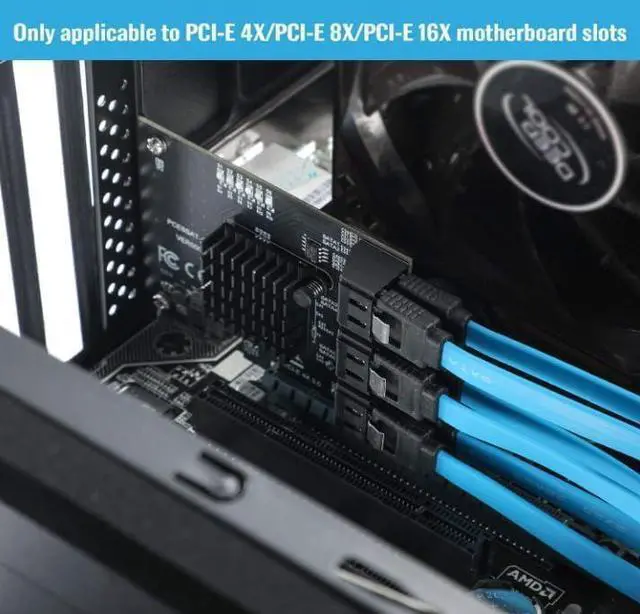

Regardless of whether PCIE is 4x or 16x, you can put it directly into the free 16x slot, provided it is the V 2.0 version; It does not support PCIE 1x

Conforms to serial ATA 3.0 specification, backward compatible with SATA 2.0 SATA 1.0 Follow PCI Express v2. 0 specification and backward compatible with PCI Express v 1.0

Compatible with SATA 6G, 3G and 1.5G hard drives PCIE 3.0 SATA Controller Solution About the Speed Description The best effect can be achieved with SATA 3.0 data cable

The motherboard setting BOIS:

SATA mode must be changed to AHCI

Different computer configurations and SATA SSDs have different speeds

The maximum speed of PCIE 2.0 is 380 to 450 m/s; When connected to PCIE 1.0, the speed is only 200 to 300 m / s

Although some motherboards are PCIE version 2.0, by default BOIS does not enable gen2 highspeed mode, which must be enabled manually

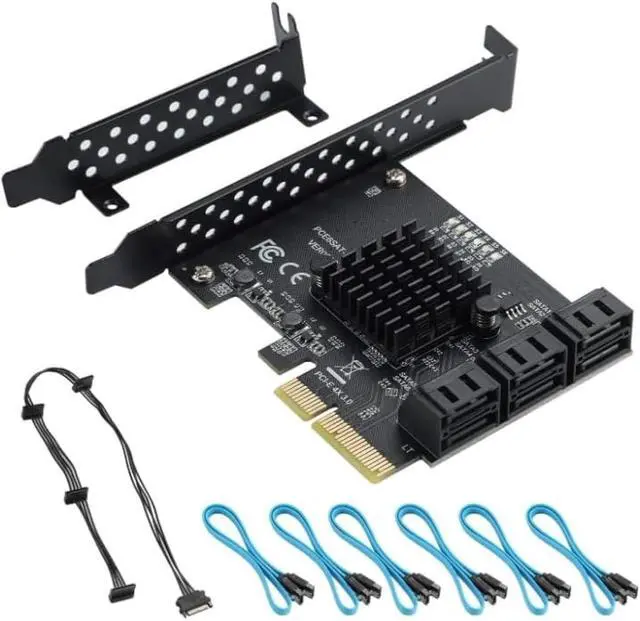

Package List:
1x PCIE 4X to 6portrs SATA card
1x Low profile bracket

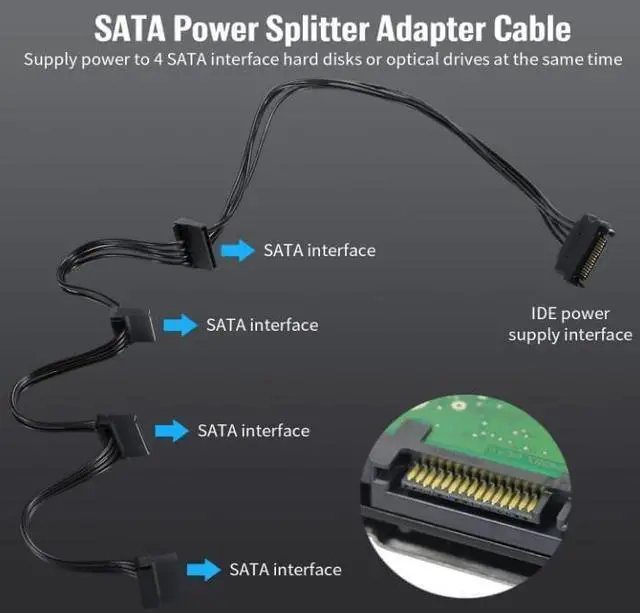

1x Power cable
6x SATA cables
