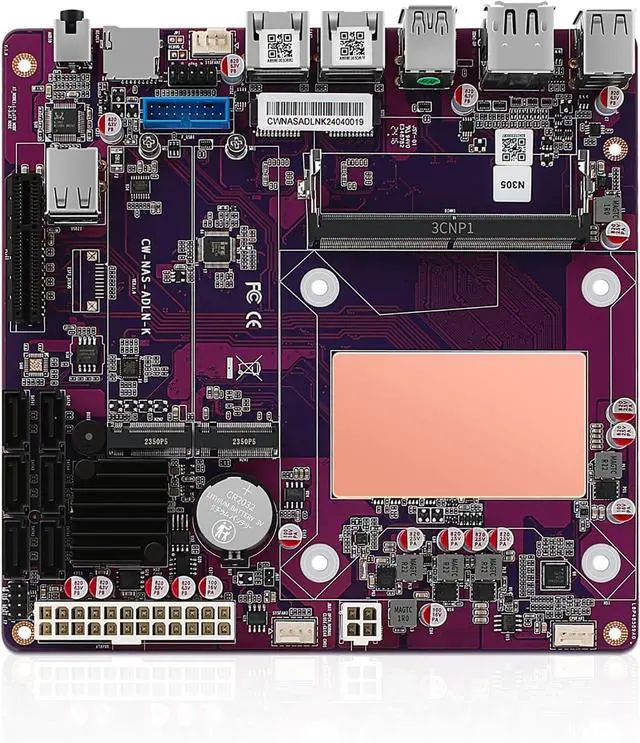

N305 Industrial Motherboard NAS 8 Cores 8 Threads Low Power Processor 2x2.5G i226 Network M.2 Slot 6xSATA 2* M.2 NVMe 2280, 1* PCIe 3.0x4, 1* TF Slot, Dual 4K Display, 6* USB
- [(Low power processor)] Intel N305 8 Core Processor, 8 threads, up to 3.8GHz; 15W TDP, 6M Cache, up to 3.8 GHz, with Intel UHD Graphics.
- [(High speed network card)] This NAS motherboard has 2* i226 2.5GbE ports to deliver a secure, stable and fast network connection for professional network security firewall appliance and multimedia use.
- [(Industrial NAS Motherboard )] Mini-1TX size: 17.0 cm x 17.0 cm,High-density moisture-proof fiber circuit board Ultrafast Connectivity--1* USB3.0, 1* Type-C(USB2.0), 2* USB2.0, 2* built-in USB on board for for USB booting of the NAS system. 1* HDMI2.1 and 1* DP1.4b to support dual 4K@60Hz display.

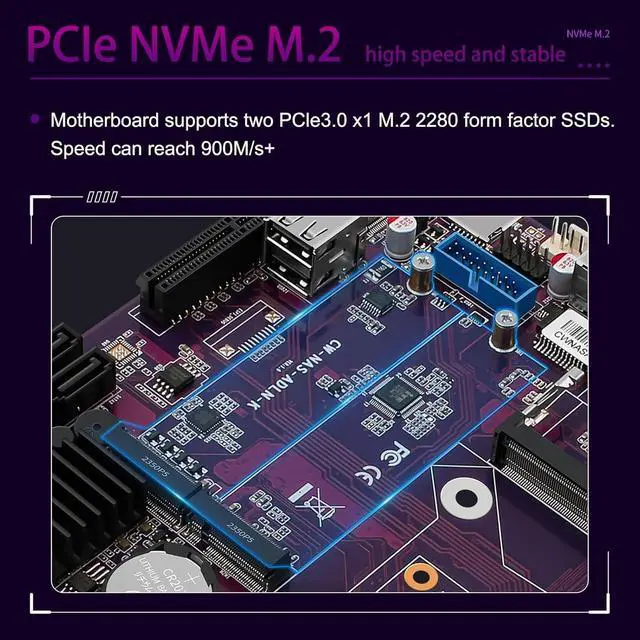

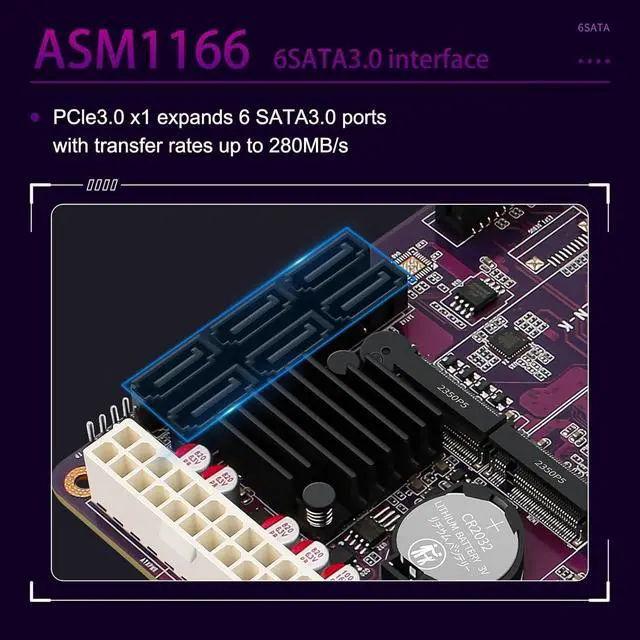

- [( Storage and Memory)] 1* DDR5 slots, compatible with 4800/5200/5600MHz (non-ECC), RAM supports up to 32GB, 6* SATA3.0 with 6Gbps (SATA1 is native, SATA2-SATA6 is extended by the JMB585 chip) and 2* M.2 NVMe 2280 PCIE3.0x1, stable and ultra-fast transfer speed.Dual 4K Display: This mini-ITX board has HDMI2.0 and DP1.4 ports at 4K@60Hz
- NOTE: The mo
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
1. Must work with a good radiator, please buy bundle with radiator if you do not have.
2. Must connect 24pins+4pins ATX 12V power suppy at the same time to power on. 3. PCIe x1 slot share singal with M. 2 NVMe slot 2, can not to be used at same time.
4. Every new motherboard was tested with radiator totally before shipping, that is why copper plate seems to get traces of thermal grease.
Motherboard
Processor: - N305 8 Core Processor, 8 threads, up to 3.8GH z; 15W
TDP Memory: -1*DDR5 4800MHz memory slot -
Maximum capacity: 48GB
Storage: -6*SATA 3.0 -2*M.
2 (NVME) Network Ports: -2* i226-v 2.5G bE NICs
Graphics Card: -N100 integrated UHD graphics card; 24EU -1*HDMI 2.0 + 1*DP 1.4, support synchronous or asynchronous display
I/O Interface: -1*HDMI 2.0 -1*DP 1.4 -2*Intel i226 2.5G LAN -1*USB 3.0 -3*USB 2.0 -1*TF Slot -1*AUDIO(Headset 2-in-1)

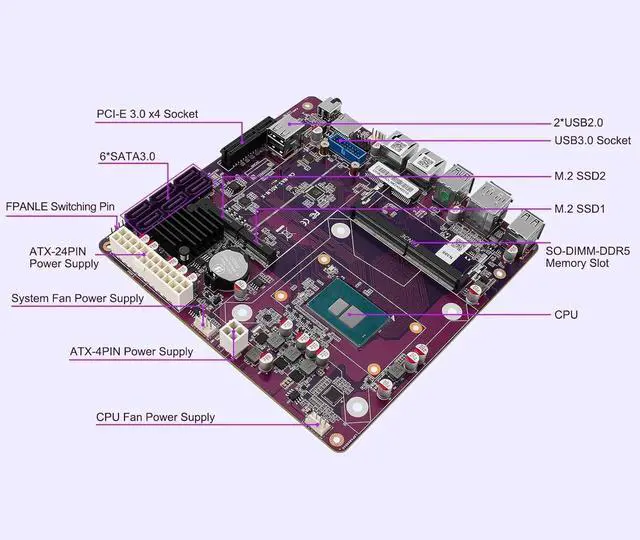

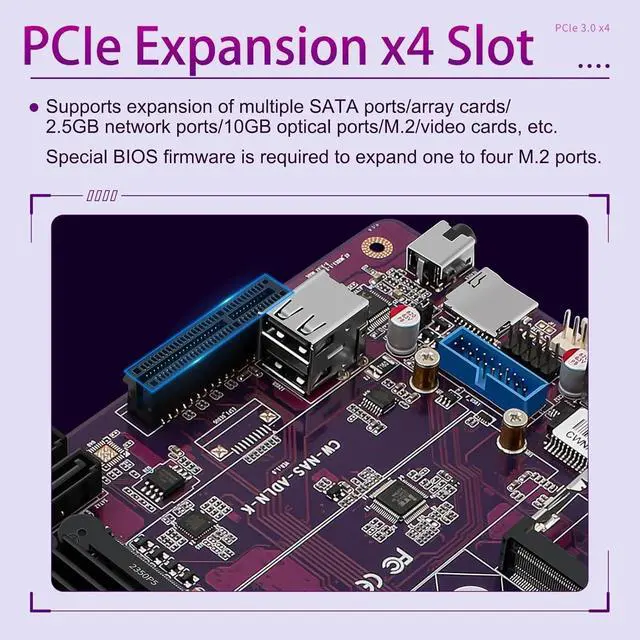

Onboard Pins: -2*USB 2.0 -2*USB 3.0 (Row of Pins) -2*M. 2 (NVME) -6*SATA 3.0 -1*FP -1*GPIO -1*CPUFAN -2*SYSFAN -1*PCIe 3.0X 4
Power Supply: -ATX 24Pin + 4Pin Power Supply
5. Intel i226-V is a new network card, suggest to install newest version of following systems with supportable kernel: pfSense-CE 2.7, OPNsense 23. x, pfSense Plus, OpenWrt, ESXi, Proxmox 8. x, CentOS etc. Please make clear before buying.
2. Must connect 24pins+4pins ATX 12V power suppy at the same time to power on. 3. PCIe x1 slot share singal with M. 2 NVMe slot 2, can not to be used at same time.
4. Every new motherboard was tested with radiator totally before shipping, that is why copper plate seems to get traces of thermal grease.
Motherboard
Specifications
:Processor: - N305 8 Core Processor, 8 threads, up to 3.8GH z; 15W
TDP Memory: -1*DDR5 4800MHz memory slot -
Maximum capacity: 48GB
Storage: -6*SATA 3.0 -2*M.
2 (NVME) Network Ports: -2* i226-v 2.5G bE NICs
Graphics Card: -N100 integrated UHD graphics card; 24EU -1*HDMI 2.0 + 1*DP 1.4, support synchronous or asynchronous display
I/O Interface: -1*HDMI 2.0 -1*DP 1.4 -2*Intel i226 2.5G LAN -1*USB 3.0 -3*USB 2.0 -1*TF Slot -1*AUDIO(Headset 2-in-1)
Onboard Pins: -2*USB 2.0 -2*USB 3.0 (Row of Pins) -2*M. 2 (NVME) -6*SATA 3.0 -1*FP -1*GPIO -1*CPUFAN -2*SYSFAN -1*PCIe 3.0X 4
Power Supply: -ATX 24Pin + 4Pin Power Supply
5. Intel i226-V is a new network card, suggest to install newest version of following systems with supportable kernel: pfSense-CE 2.7, OPNsense 23. x, pfSense Plus, OpenWrt, ESXi, Proxmox 8. x, CentOS etc. Please make clear before buying.
