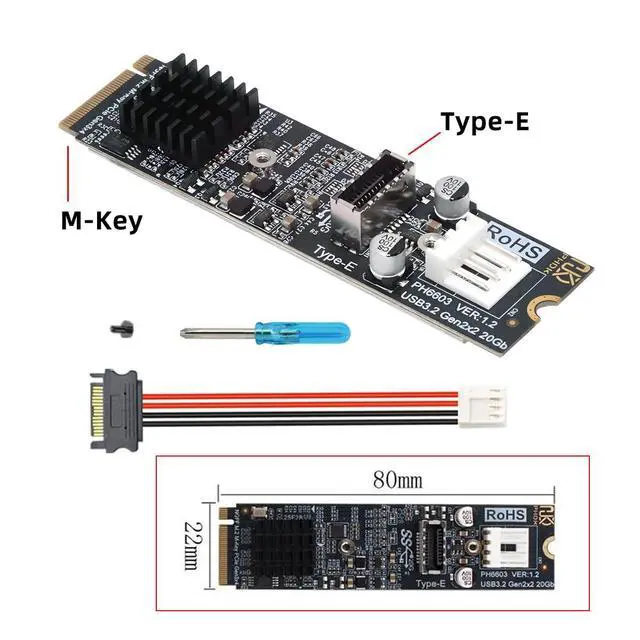

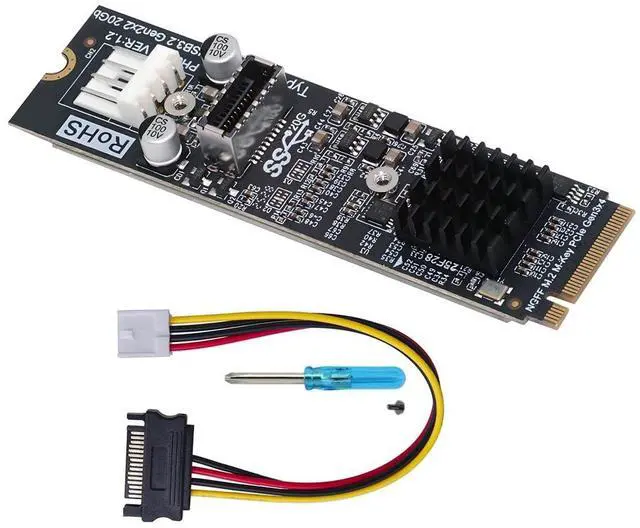

CY 20Gbps Type-E USB 3.1 Front Panel Socket to NVME NGFF M-Key Express Card Adapter ASM3242 Chipset for Motherboard

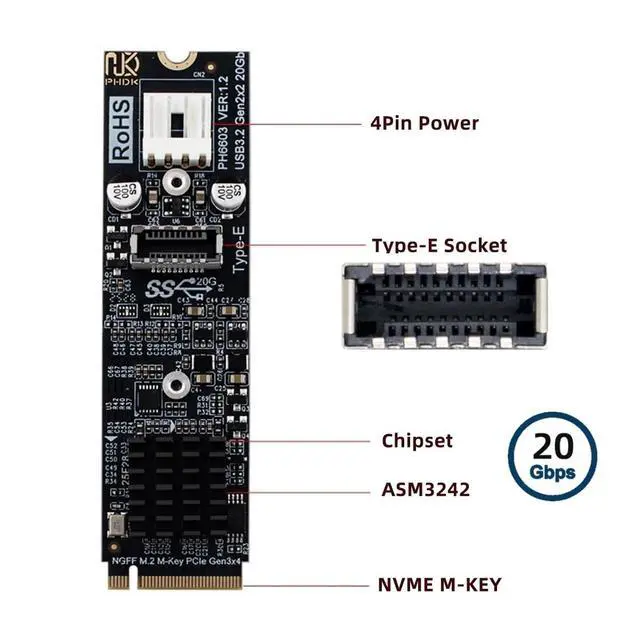

- 1) Input Connector: NVME NGFF M-Key PCI Express4.0; Output Connector: 20Gbps USB 3.1 20pin Type-E Front Panel Header
- 2) The adapter is a converter to convert the available NVME M-Key of a motherboard into USB 3.1 header.Thus the USB 3.1 port of a housing can also be supplied with USB 3.1 without a suitable mainboard.
- 3) The compact adapter can be inserted directly and requires no additional attachments. The adapter is the perfect solution to use the USB 3.1 connectors with Type-C.The converter thus provides a full-fledged USB 3.1 port.

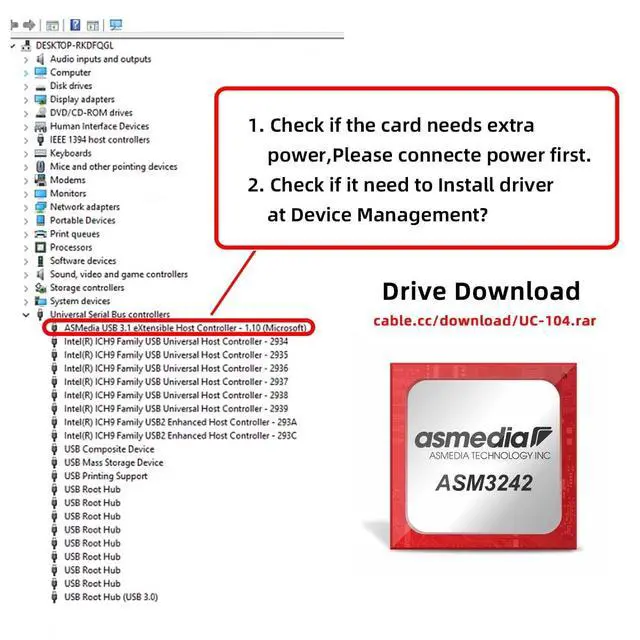

- 4) ASM3242 is a Universal Serial Bus xHCI host controller, bridging PCI Express to USB3.2 20Gbps, It also supports backward compatible with legacy USB function and devices, ASM3242 also supports the function of Multiple INs to achieve fully utilization rate of 20Gbps data rate, taking advantage of the available bandwidth of USB3.2 Gen2 x2 bus.
- 5) ASM3242 supports one USB3.2 20Gbps port and perform trusting high speed bandwidth with PCI Expres
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
20Gbps Type-E USB 3.1 Front Panel Socket to NVME NGFF M-Key Express Card Adapter ASM3242 Chipset for
MotherboardInput Connector: NVME NGFF M-Key PCI Express 4.0O utput
Connector: 20Gbps USB 3.1 20pin Type-E Front Panel HeaderThe adapter is a converter to convert the available NVME M-Key of a motherboard into USB 3.1 header. Thus the USB 3.1 port of a housing can also be supplied with USB 3.1 without a suitable mainboard. The compact adapter can be inserted directly and requires no additional attachments. The adapter is the perfect solution to use the USB 3.1 connectors with Type-C. The converter thus provides a full-fledged USB 3.1 port. ASM3242 is a Universal Serial Bus xHCI host controller, bridging PCI Express to USB 3.2 20Gbps, It also supports backward compatible with legacy USB function and devices, ASM3242 also supports the function of Multiple INs to achieve fully utilization rate of 20Gbps data rate, taking advantage of the available bandwidth of USB 3.2 Gen2 x2 bus. ASM3242 supports one USB 3.2 20Gbps port and perform trusting high speed bandwidth with PCI Express Gen3 x4. Converter plug-in for the mainboard, Fits into any USB 3.1 header, Bundling in USB 3.1 with up to 20GBit/s, The adapter not support video, audio and PD power.
MotherboardInput Connector: NVME NGFF M-Key PCI Express 4.0O utput
Connector: 20Gbps USB 3.1 20pin Type-E Front Panel HeaderThe adapter is a converter to convert the available NVME M-Key of a motherboard into USB 3.1 header. Thus the USB 3.1 port of a housing can also be supplied with USB 3.1 without a suitable mainboard. The compact adapter can be inserted directly and requires no additional attachments. The adapter is the perfect solution to use the USB 3.1 connectors with Type-C. The converter thus provides a full-fledged USB 3.1 port. ASM3242 is a Universal Serial Bus xHCI host controller, bridging PCI Express to USB 3.2 20Gbps, It also supports backward compatible with legacy USB function and devices, ASM3242 also supports the function of Multiple INs to achieve fully utilization rate of 20Gbps data rate, taking advantage of the available bandwidth of USB 3.2 Gen2 x2 bus. ASM3242 supports one USB 3.2 20Gbps port and perform trusting high speed bandwidth with PCI Express Gen3 x4. Converter plug-in for the mainboard, Fits into any USB 3.1 header, Bundling in USB 3.1 with up to 20GBit/s, The adapter not support video, audio and PD power.
