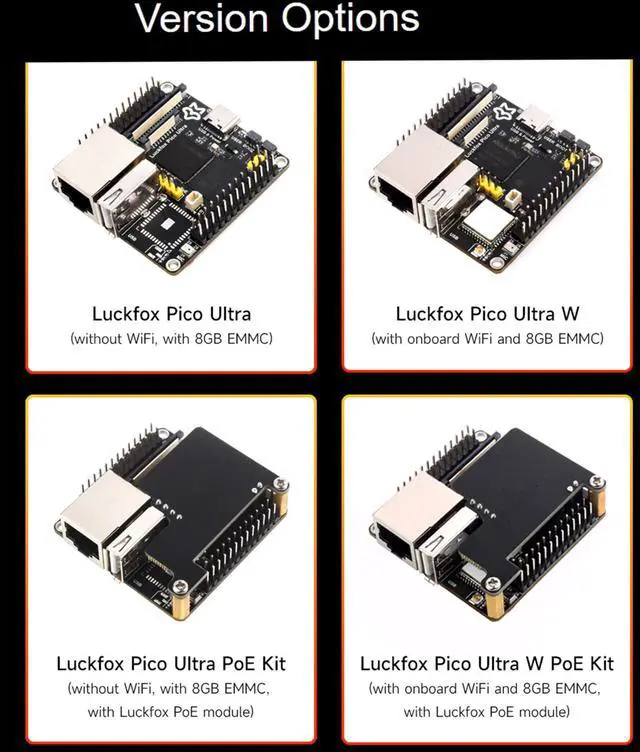

Luckfox Pico Ultra RV1106G3 Linux Micro Development Board, Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors, Input 5M @30fps, 0.5TOPS, Supports int4, int8 and int16 (No WiFi, with 8GB EMMC)

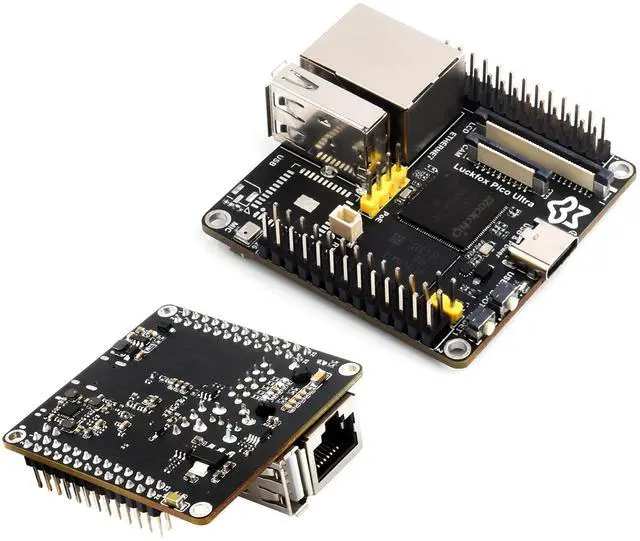

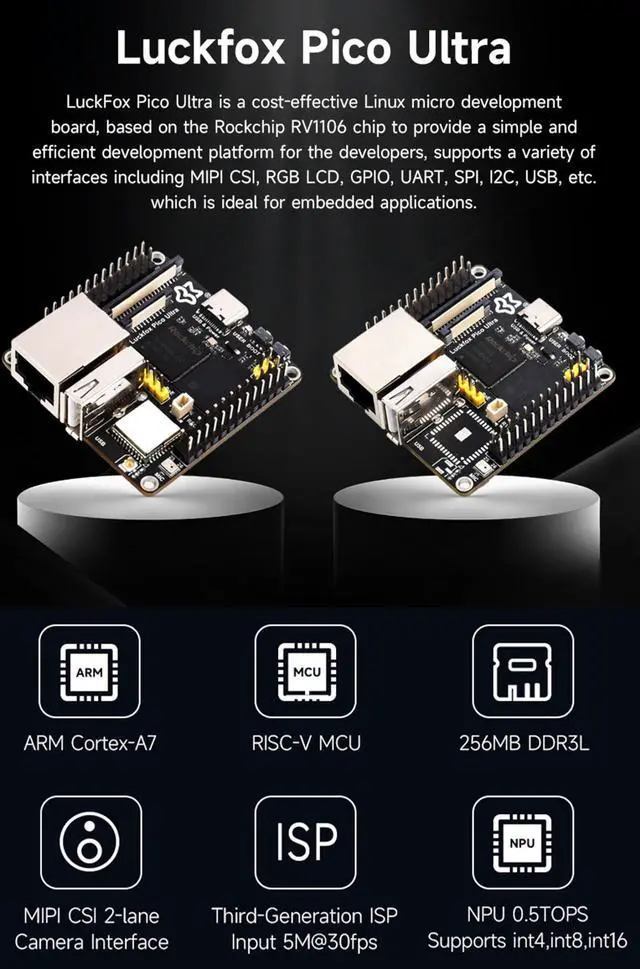

Luckfox Pico Ultra ( without WiFi, with 8GB EMMC) is a cost-effective Linux micro development board, based on the Rockchip RV1106 chip to provide a simple and efficient development platform for the developers, supports a variety of interfaces including MIPI CSl, RGB LCD, GPIO, UART, SPI, 12C, USB, etc. which is ideal for embedded applications.

Main chip: RV1106G3
Memory: 256MB
NPU: 0.5TOPS, supports int4, int8 and int16
ISP: Input 5M @30fps (Max)
Default Storage: EMMC (8GB)

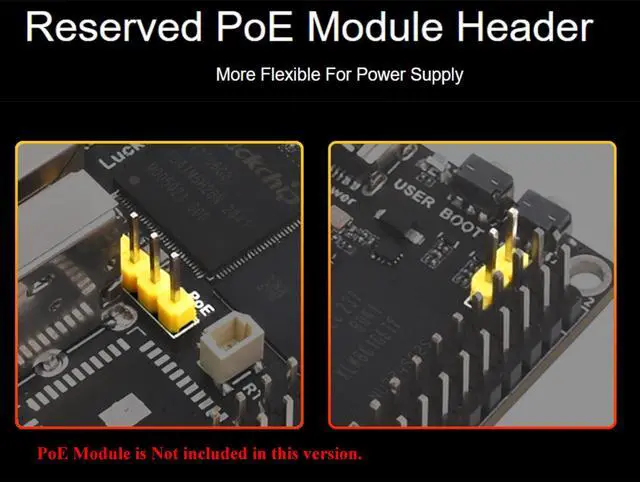

Features: Onboard PoE header, Type-C port, MIPI CSI Interface, GPIO, Ethernet port, speaker header, R TC ba-tte-ry header, etc.

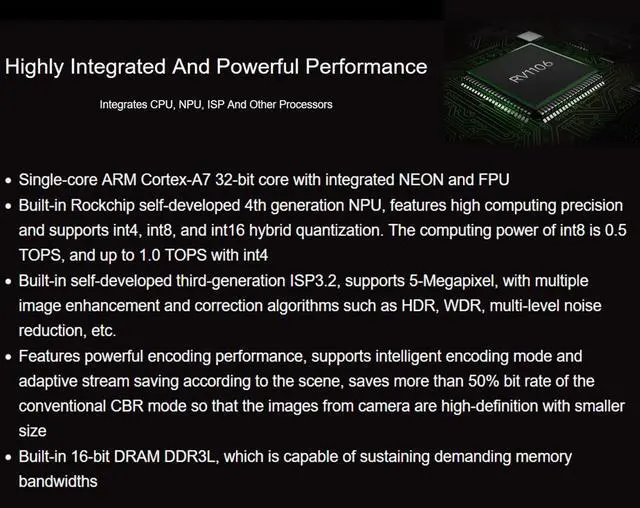

Features
Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The computing power of int8 is 0.5 TOPS, and up to 1.0 TOPS with int4
Built-in self-developed third-generation ISP 3.2, supports 5-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.
Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size
Built-in 16-bit DRAM DDR3L, which is capable of sustaining demanding memory bandwidths

Package Content
Luckfox Pico Ultra x1
