ESP32-S3 Ethernet Development Board, 10/100Mbps RJ45 Ethernet Port, 240MHz Dual Core Processor, Onboard Type-C Port & TF Card Slot, Support W-i-F-i & BLE & Ethernet Communication (ETH Board Only)

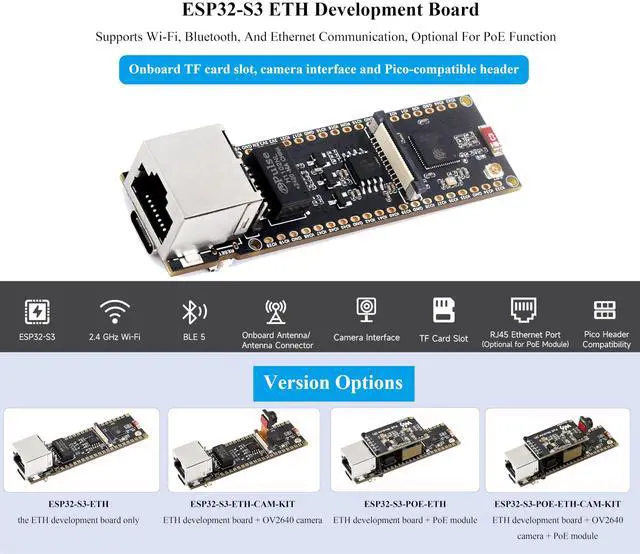

- There are Four Versions: the ETH development board only, ETH development board + OV2640 camera, ETH development board + PoE module, ETH development board + OV2640 camera + PoE module. This is the ETH development board only version, which doesn't include PoE module and OV2640 camera.

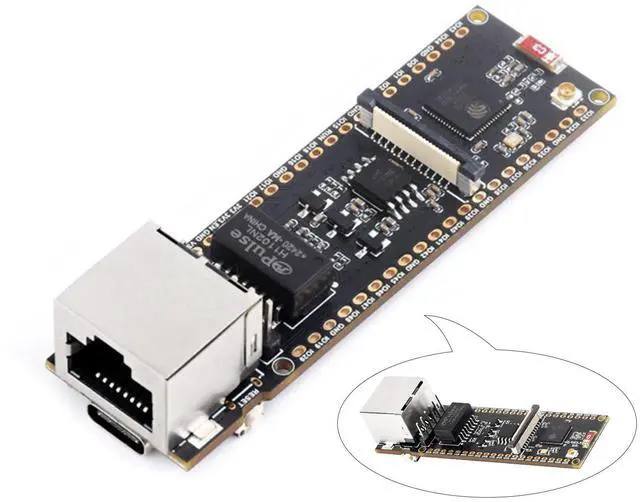

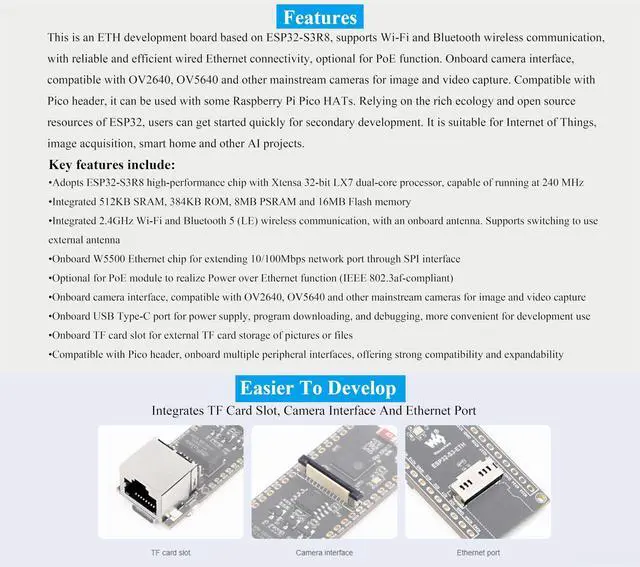

- This is an ETH development board based on ESP32-S3R8 chip with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz, supports Wi-Fi and Bluetooth communication, with wired Ethernet connectivity, optional for PoE function (This version doesn't include POE module).
- Integrated 512KB SRAM, 384KB ROM, 8MB PSRAM and 16MB Flash memory. Integrated 2.4GHz Wi-Fi and Bluetooth 5 (LE) communication, with an onboard antenna. Supports switching to use external antenna. Onboard W5500 Ethernet chip for extending 10/100Mbps network port through SPI interface.
- Onboard camera interface, compatible with OV2640, OV5640 and other mainstream cameras for image capture, video monitoring and other
+
+
