JAENFONG Digital LCD Computer PC Power Supply Tester Checker 20/24 Pin SATA HDD ATX BTX Meter Power Supply Tester Checker Power Measuring

CPU Power Connector: 8 pin

Package: Yes

Interface Type: 20 + 4Pin

Application: Desktop, Server

Model Number: IV

Output: see below

Input Voltage: 220v

Modular: Non-Modular

80 PLUS Certification: Other Certification

Origin: Mainland China

Certification: NONE

Digital LCD Computer PC Power Supply Tester Checker 20/24 pin SATA HDD ATX BTX Meter Power Supply Tester Checker Power Measuring

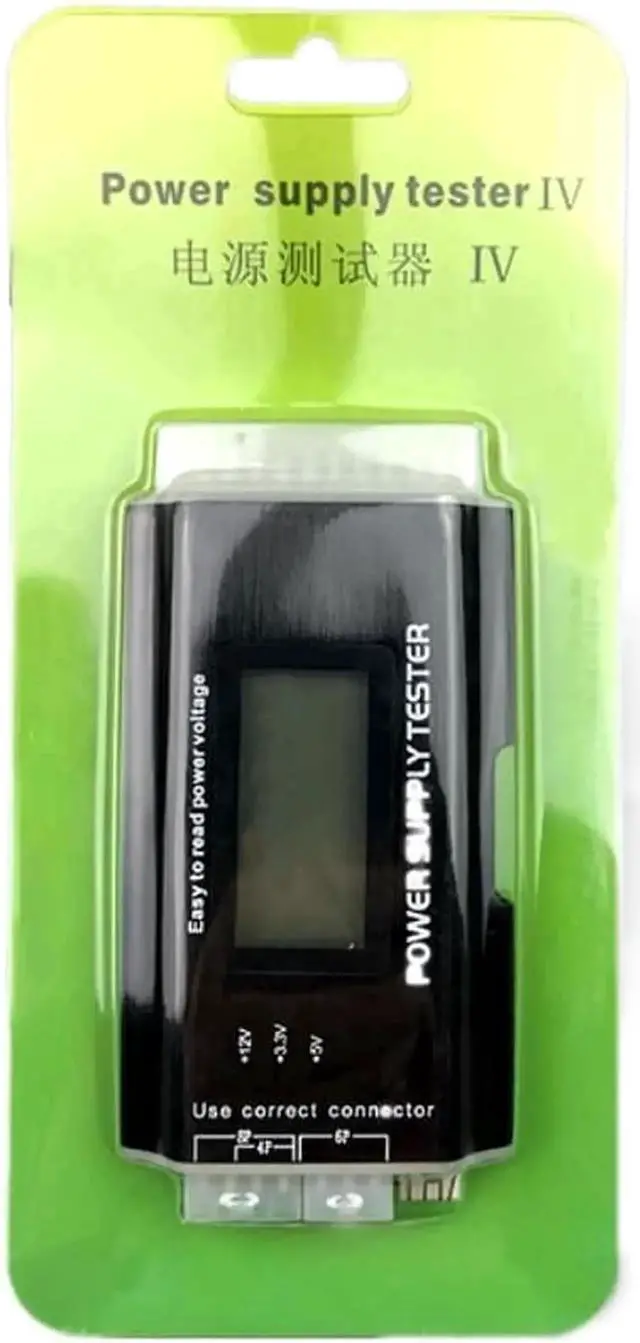

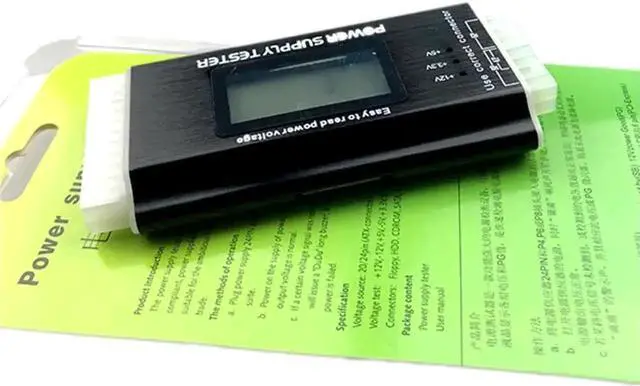

Digital LCD Power Supply Tester

Description:

The item is a LCD power supply tester.

It can test your power supply and avoid damage to your expensive computer equipment with this power supply tester.

The device is suitable for the ambitious hobby user, as well as for a quick functional check in a specialized trade.

Features:

Housing material: plastic

LCD indicate the status of voltage.

The power supply tester is a robust voltage tester for

PC-power supplies: ATX, BTX, and ITX compliant power supplies can be tested.

Simple and easy to use, no batteries are needed. Connect to the power supply's 20-pin Molex connector.

Equipped with + 3.3V, +5V, +VSB, -5V, -12V and +12V leads for monitoring voltage output.

Operation:

1. Plug power supply 24 PIN and P4, P6 or P8 into the corresponding jack of the power test suite.

2. Power on the supply of power, will hear "DuDu" ring, if no flicker then the power supply output voltage is normal.

3. If a certain voltage signal was not detected, or the detected voltage value over the normal, will issue a "DuDu" long buzzer; if the corresponding voltage value or PG flicker too, then the power is failed.

Specification:

Support 24Pin, ATX 20Pin interface

Support SATA interface

Support 8Pin, 4Pin interface

Support PCI-E graphics 6Pin interface

Support the floppy disk interface

Support ATE hard disk interface

Test voltage: 3.3V, -12V, 12V1, 12V2 + 5 VSB, + 5V, and PG time

Size: 126 x 64 x 18.5 mm/ 4.96 x 2.51 x 0.72 inch approx

Package:

1*power supply tester IV
