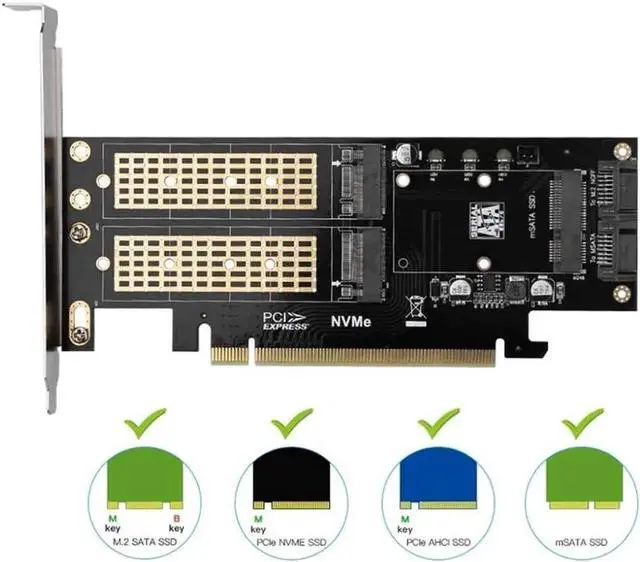

JAENFONG 3 in 1 NGFF and MSATA SSD Adapter Card M.2 NVME to PCIe 16X/M.2 SATA SSD to SATA III to SATA Converter+2 SATA Cable

Model Number: 3 in 1 NGFF and mSATA SSD Adapter Card

Type: PCI-E 4X To 16X Card

SATA slot data transfer up to 6.0G b/s

Supports SATA-based B key and PCI-E 4X-based M key NGFF SSD

Supports 2230, 2242, 2260 & 2280 size NGFF SSD

Easy installation & no driver required

No additional power required, plug and play, easy installation

Supports any OS, like Windows, WinCE, Mac & Linux etc

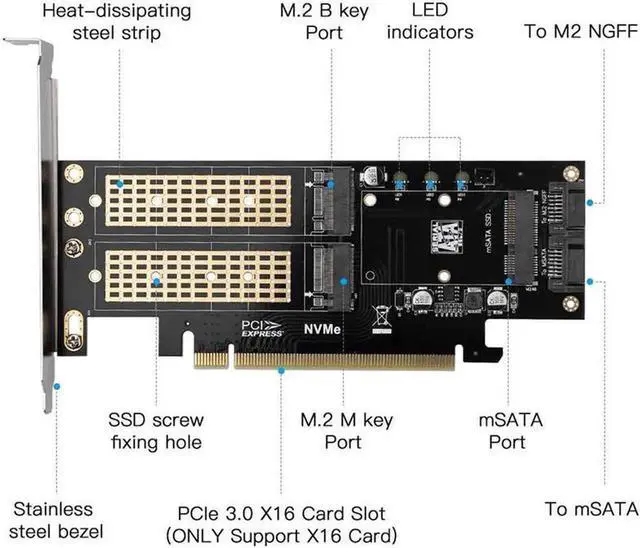

1. Connects one B key & one M key NGFF SSD at the same time to PCI-E 16X motherboard.

2. PCI 3.0 (Back Compatible with PCIe 2.0, PCIe 1.0 ) Express M. 2 specification 1.0.

3. SATA 3.0 specification for B key (SATA based).

4. PCI-E 3.0 specification for M key (PCIE or AHCI based).

5. mSATA SSD card supported.

5. Compliant with 39Gbps PCI Express 3.0.

6. Four SSD card length Supported, 2280 /2260 /2242/ 2230.

colour: black

Material: plastic

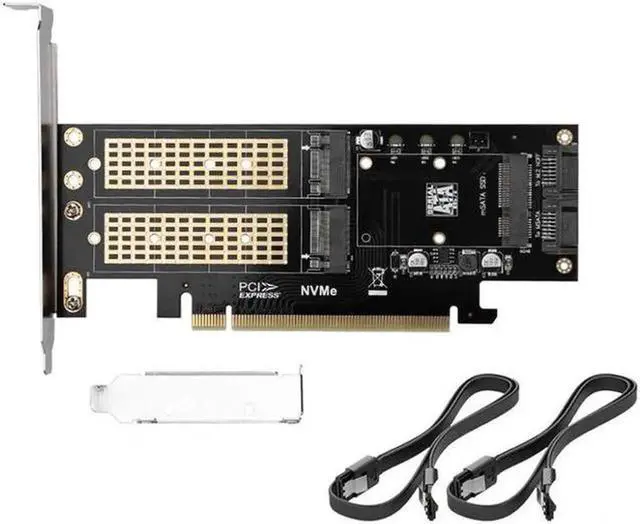

Package Contents:

1 x 3 in1 M. 2 to PCI Express Adapter Card

1 x Small size bezel

2 x SATA Cable (Random Color)

Random colors cannot be selected

Please Kindly Note:

7-pin SATA cable must be connected to motherboard if you want to read the M. 2 SATA SSD (Key B) for data transfer

M key SSD there must be a 2.0 or higher PCI-E 16X socket.

This adapter only support PCIe X16 slot. DO NOT support PCIe X1, X4, X8 slot.

Only the above package content, other products are not included.

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
