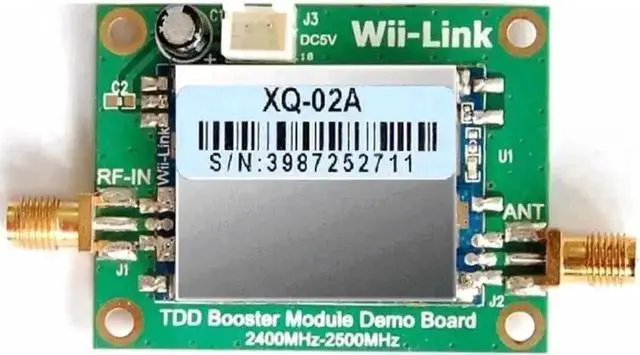

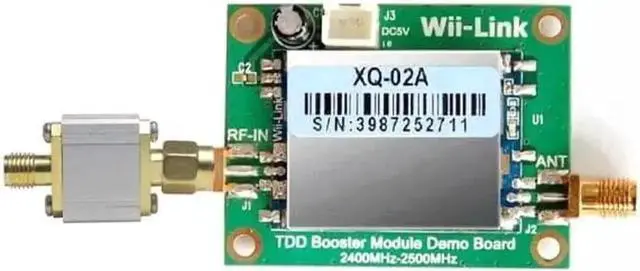

JAENFONG 2-4G Power Amplifier 2W Routing Signal Amplifier for Signal Enhancement TDD Booster Module Board with 6DB Antenna (with 2450MHz Filter)
Limited time offer, ends 10/18 By Smart core
- Built-in high-speed transceiver switching automatic discriminating circuit, can automatically switch the transceiver state, do not need the wifi control chip to give the control signal to work automatically, so it is compatible with any WiFi program.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Built-in high-speed transceiver switching automatic discriminating circuit, can automatically switch the transceiver state, do not need the wifi control chip to give the control signal to work automatically, so it is compatible with any WiFi program.
Can be applied to all kinds of special requirements for WiFi signal transmission distance and connection stability.
Bi-directional signal amplification module is designed for various applications in 2.4GH z band, its small size and easy application make the design of RF part of 2.4GH z wireless products extremely simple.
Receiving gain: 10dB;
Transmit gain: 11dB;
Receiving noise factor: 3.0 dB.
Input power range: 4dBm - 20dBm; Maximum transmit power (Peak
Power): 33dBm (2W);
Dimension: 36mm * 26mm * 4.8 mm (L*W*H).
