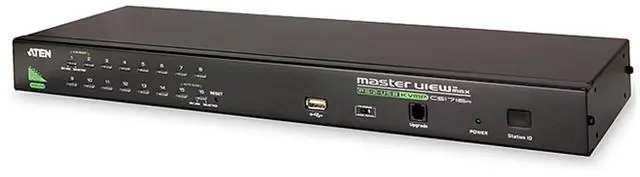

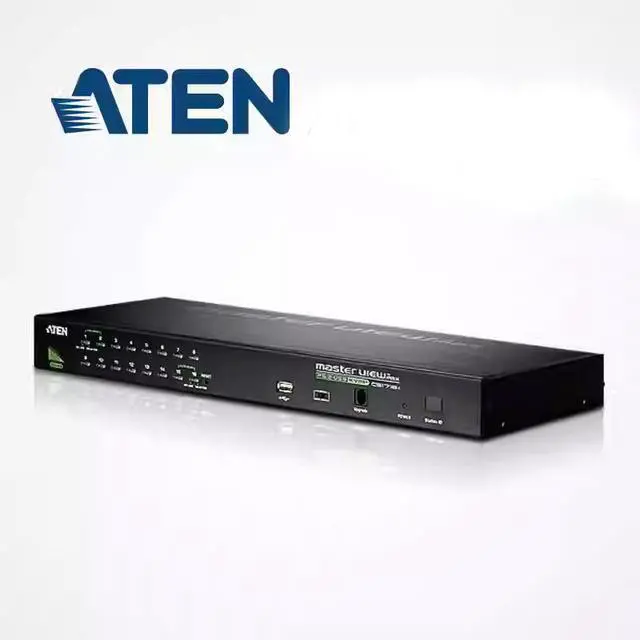

ATEN HongZheng 16-input/1-output 16-port multi-computer KVM switch with PS2/USB hybrid connection and OSD, model CS1716A
- CS1716Ais an advanced multi-computer managementsolution. It canaccess multiple servers through a setof control ports (keyboard,monitor, and mouse) via PS/2or USB interfaces.One CS1716A candirectly manage 16 servers; by cascadinganother31 Cs1716As in adaisy chain,itis possibleto manage up to 512serversfroma singlecontrol portconsisting of a keyboard,monitor,and mouse.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The USB-PS/2 control port group can directly manage 16 servers independently.

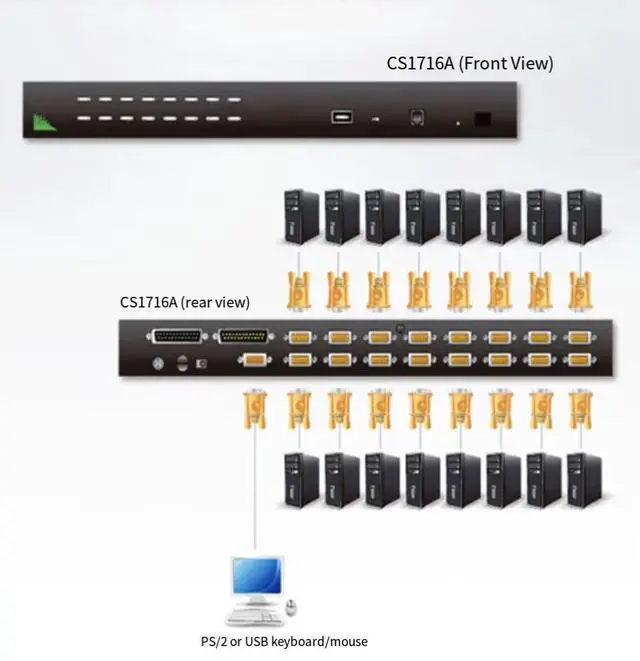

The Daisy Chain feature connects an additional 31 devices-asingle controlterminal can manage up to 512servers.

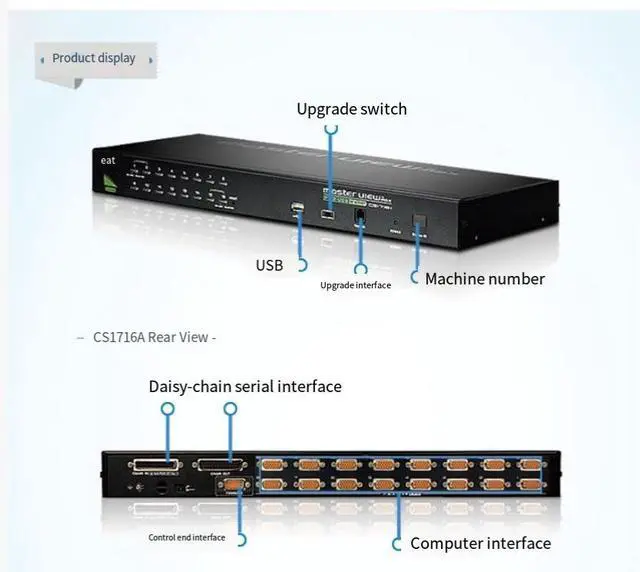

The built-in USB connection ports on the front panel enable eachconnected server to easily access USB peripheral devices*
Dual interface - Supports servers and control terminals equipped with PS/2 or USB keyboards and mice
Cross-platformsupport -Windows 2000/XP/Vista, Linux, Mac and SunVideo DynaSyncTMvideo dynamic synchronizationdisplay- The EDID information of the control terminalscreen can be stored to present the screen with high-quality resolution.
Support USB keyboard (for PC, Mac and Sun)
Automatic detection of PS/2 and USB interfaces
USB and PS/2 keyboard and mouse signalsimulation - Ensures correctstartupregardless of whether the control end is switched to this server or not
High video resolution-up to2048x1536; DDC2B
No need to install software-You can easily select the serverthrough the front panelbuttons,keyboard hotkeys and multi-language OSD screen menus.
Under the Daisy Chain architecture, the device machine position can be autaomatically detected anddisplayed on the LEDs on the front panel,eliminating the need for manual DIP settings.
When the machine sequence changes, the connection port numbers can be automatically reconfigured.
The automatic scanning mode can continuously monitor the server selected by the user.
