ATEN HongZheng 4-port keyboard and mouse switcher, extending the Daisy Chain to 8-port switch, CS724KM

With just a setof USB keyboard and mouse, you can switch and operate 4 computers.Byconnecting two CS724KMunits in a daisychain manner,itis possible to switch operations via a single keyboardand mouse,achieving a maximum of2operations.

8 computers

The sliding screen quick-switchingfunction (Boundless Switching) requires the user to move the mouse cursor to theedge of the screen and beyond the boundary.Once this is done,the mouse cursor can directly and quickly switch to thedisplay screen of the next computer connected, and operations such as keyboard and mouse input can be performedon this computer.

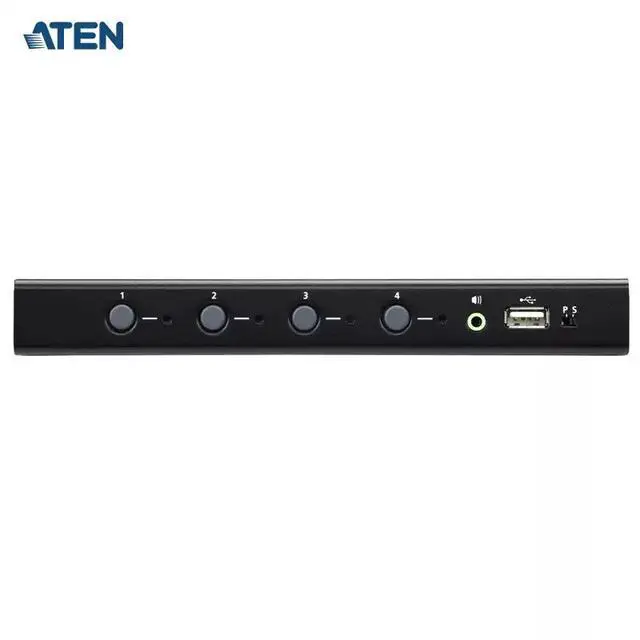

Screen Sliding, Quick Switch Configuration Tool An intuitve and graphical softiware thathelpsusers quicklyset the arrangementpositions ofmultiple screensThe computer to be operated can be selected by using the buttons on the front panel, keyboard hotkeys,mouse cursor (screen quick switching function), mouse scroll wheel, and RS-232 commands.The hotkeys can be used to independently switch the signals of the keyboard/mouse,USB peripheral devices, and audio devices to different computer ports.

Support RS-232 serial port commands

The controlled computer is equipped with the Windows operating system.The controlled end computer equipment does not require the installation of software.USB power supply design - No need for external power adapter

Reminder:Can only be installed on a third-party computer.The CS724KM is designed to supply power via USB. It enables the CS724KM to obtain electri
