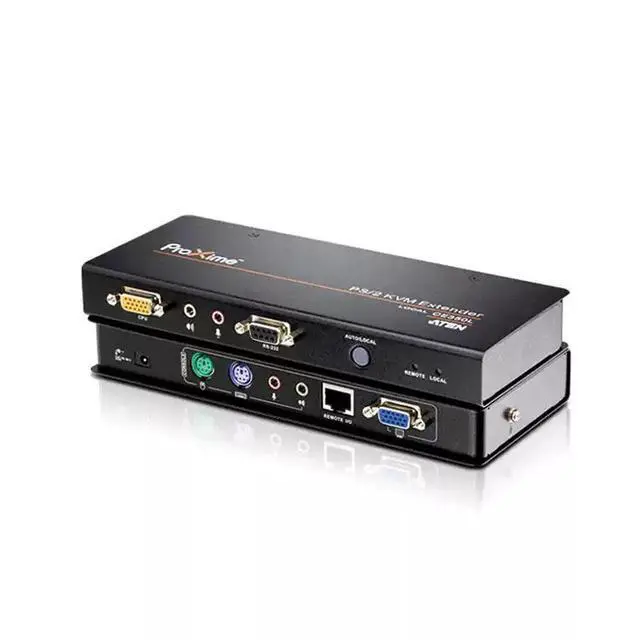

ATEN HongZheng CE350 PS/2 KVM Signal Extender + Audio Function

With Cat 5e cables, the distance betnn localded up to l50 meters.

Adjustable gain control function - Can automatically or manually enhancethe signal transmission strength depending on the distance.

Dual control terminal operation - It can be controlled by the systemcomposed of local and remote keyboards, monitors and mice.

Built-in ASIC chip,providing higher reliability and compatibility

Equipped with automatic signal compensation (ASC) and storage setting functions

RS-232 serial portconnection port - Can be connected to serial terminaldevices orserialequipment,such as touch screens and barcode scanners (rate l15200 bps)

Audio function - Supports stereo speakers and microphone

Button operation mode selection (for local devices only)- With a single button,you can select between local control mode and automatic control mode.

Built-in 8KV/15KVelectrostatic protection (contact voltage 8KV; airvoltage 15KV) and 2KV surge protection

High video resolution-1920x 1200@ 60Hz(30m)1600 x 1200@60Hz(150m)

High-quality audio- Even at a distance of 150

meters,it can maintain high audio quality and

support wide screens*

Supports VGA, SVGA,SXGA(1280x1024), UXGA(1600x1200), WUXGA(1920xl200) and multisync monitors; Local monitors support DDC,DDC2 and DDC2B

Support

hot-swappable

installation that can be

installed in the rack.

nstallation can be easily completed without amy software -alyou need is to connect the cable between the devices
