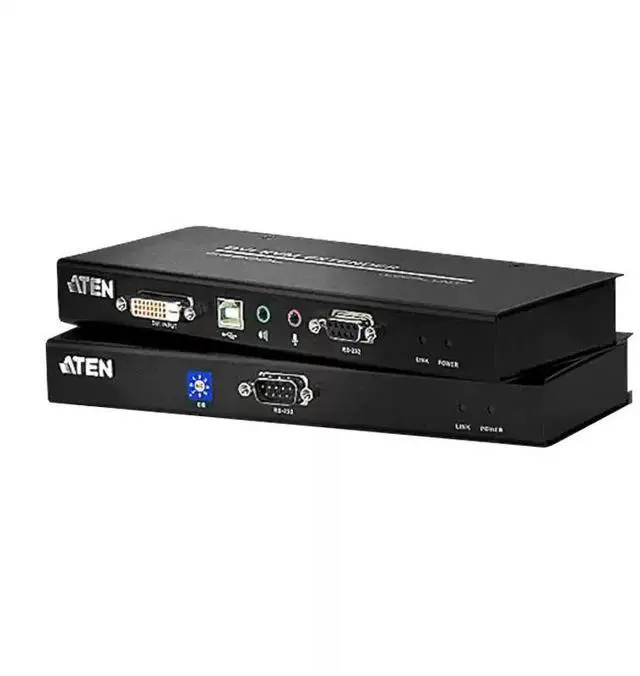

ATEN HongZheng CE602 DVI Dual Link KVM Signal Extender

USB DVICat 5 KVM signal extendermakes it easy to manage your computer

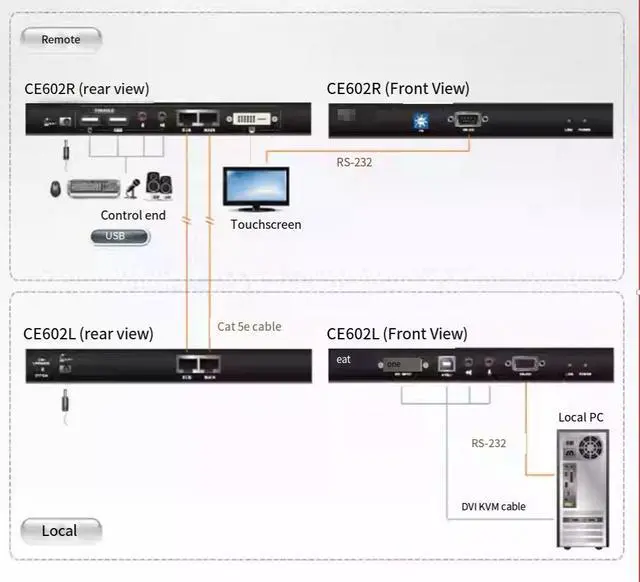

Connect local and remote devices via Cat 5e cables,with a maximum distance of 60 meters.It can be accessed from a group of remote control terminals (up to 60 meters away) to the computer or KVM deviceSupports DVl-D interface and transmits DVI Dual Link signalsEquipped with ATEN's advanced technology,audio and video signals can be transmitted through asingle Cat 5e cable.Transmit HDCP, RS-232, microphone and Dual Link signals via the second Cat 5e cable.

Manual compensation control can sequentiallyenhance the signal transmission intensity according to the distance.

RS-232 serial port connection port- Can be connected to serial terminaldevices or serial equipment, such as touch screens and barcode scanners(rate 115200 bps)

Audio function - Supports stereo speakers and microphones

Built-in 8KV/15KV electrostatic protection (contact discharge 8KV; air discharge 15KV)

.Support wide screen

High video resolution -up to 2560x1600@ 60Hz (DVI Dual Link)40meters;

1920x1200@60Hz30m; 1024x768@60Hz60m -- The signal has been transmitted over a long distance Still maintaining excellent screen performance

.Support hot swapping

Can be installed on a rack

Installation can be easilycompleted withoutany software-allyou need to do isconnectthe cable between the devices,

. Support firmware upgrade
