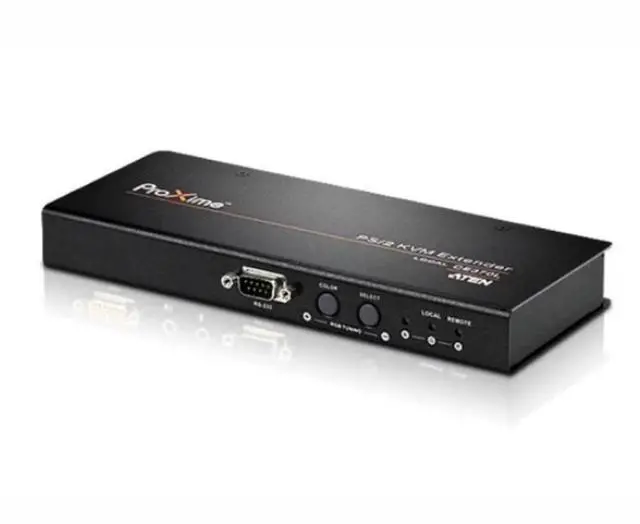

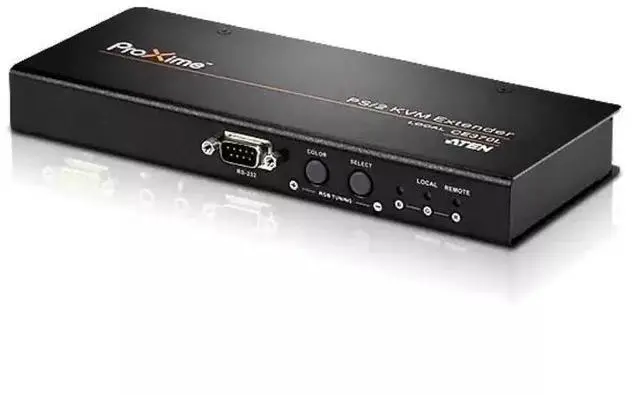

ATEN HongZheng CE370 PS/2 KVM Signal Extender + Audio Function
- With Cat 5e cables,the distance between local and remote devices can be extended up to300 meters.
- Anti-color skew(Deskew) function - Automatically synchronizes the delay time ofthe RGB signals to compensate for the errors caused by distance in the signals.
- Supports OSD screen menu function - Through an intuitive andeasy-to-operate OSD screen menu system,you can easily adjust video quality
- The R/G/B signal settings can be manually adjusted, stored and retrieved.
- Adjustable gain control function - It can automatically or manuallyenhance the signal transmission strength depending on the distance.
- Dual control terminal operation - It can be controlled by the system composed of local and remote keyboards, monitors and mice.
- Built-in ASIC chip, providing higher reliability and compatibility
- Equipped with automatic signal compensation (ASC) and storage setting functions
- RS-232 serial port connection port- Can be connected to serial terminal devices or serialequipment, such as touch screen displays and barcode scanners (rate 115200 bps)
- Audio function - Supports stereo speakers and microphones
- Button operation mode selection (for local devices only)- With a single button,you can select between local control mode and automatic control mode.
- Built-in 8KV/15Kvelectrostatic protection (contact voltage 8KV; air voltage15KV) and 2Kv surge protection
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Button operation mode selection (for local devices)- With a single button,youcan select between local control mode and automatic controlmode.
Built-in 8KV/15KV electrostatic protection (contact voltage 8KV; airvoltage 15KV) and 2KV surge protection
High video resolution - 1920 x 1200@60Hz (150m)1280x1024@60Hz(300m)
High-quality audio- maintains high audio quality even at a distance of 300 meters
Support widescreen*
SuPports VGA,SVGA,SXGA(1280x1024),UXGA(1600x1200), WUXGA(1920x1200)and multisync monitors; Localmonitors support DDC,DDC2and DDC2B
Support hot swapping
Can be installed on a rack
Installation can be easily completed without any software -all you needis to connect the cable between the devices.
The EDID data of the wide-screen display that the imaging source device needs to read istransmitted back through the image output port of the local control terminal. Therefore,pleaseconnect the wide-screen display to the output port of the local control terminal, or use an EDiDemulator.
