XH180C180V144BSF1M

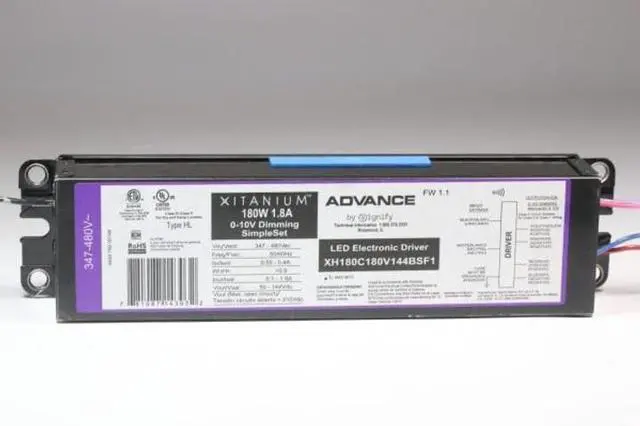

The XH180C180V144BSF1 is a robust 180-watt LED driver from Signify Advance, engineered for high-performance outdoor lighting applications. Designed with SimpleSet technology, this driver offers luminaire manufacturers ultimate flexibility, allowing for easy programming and adaptation to various luminaire sizes and lumen levels. Operating within a wide input voltage range of 347-480 VAC, this driver delivers an output current ranging from 100mA to 1800mA and supports an output voltage range of 50-144V. Its programmability through SimpleSet technology ensures rapid customization, making it ideal for OEMs seeking versatility in their product designs.
Key Features: Total
Output Power: 180 Watts
Output Current: 100-1800mA (programmable via SimpleSet)
Input Voltage: 347-480 VAC
Output Voltage Range: 50-144V
Surge Protection: 6kV combi-wave rating (ANSI C 82.77 -5 CAT C low compliance)
Dimming Method: 0-10V dimming with 150A (3%) source current
Weather Rating: UL Damp & Dry location rated, suitable for outdoor use
Benefits:
Longevity: 50, 000+ hour lifetime, ensuring long-lasting luminaire designs.
Programmability: SimpleSet technology enables quick and simple output current adjustments.
Versatility: Large operating window allows for diverse fixture designs with adjustable current options.
Surge Protection: Built-in protection eliminates the need for external surge protectors to pass CAT C low requirements.
