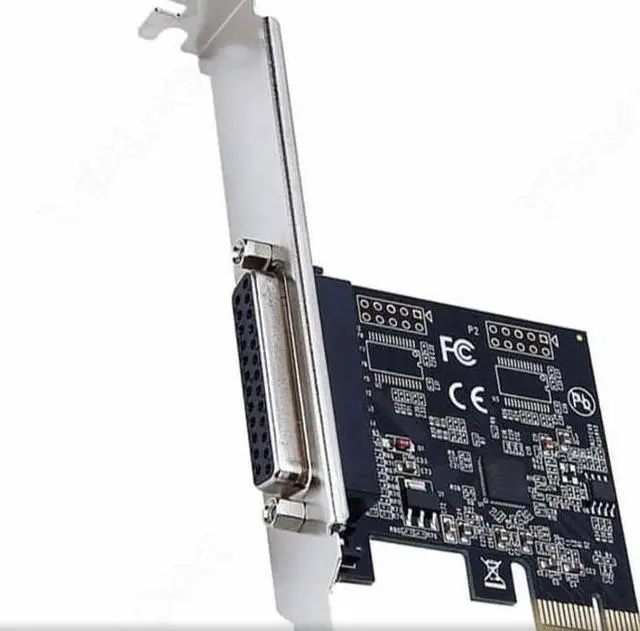

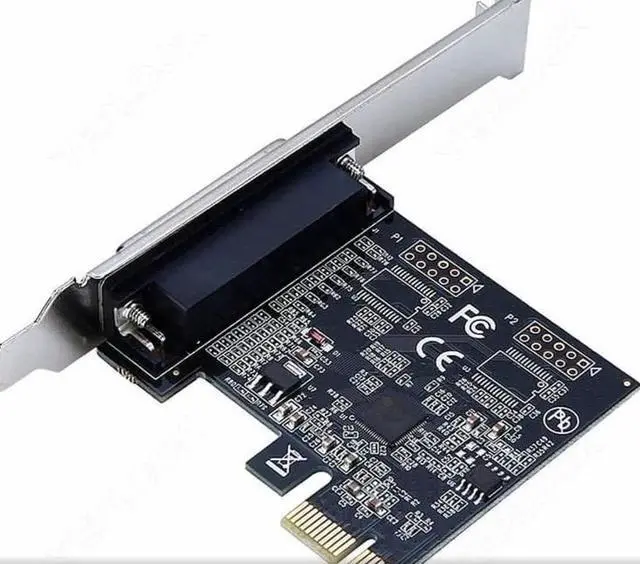

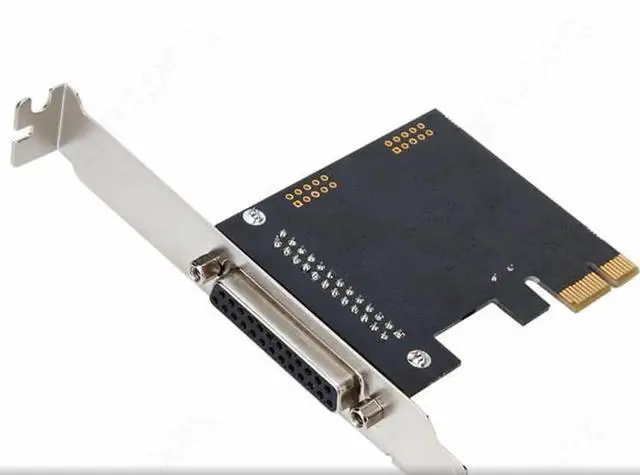

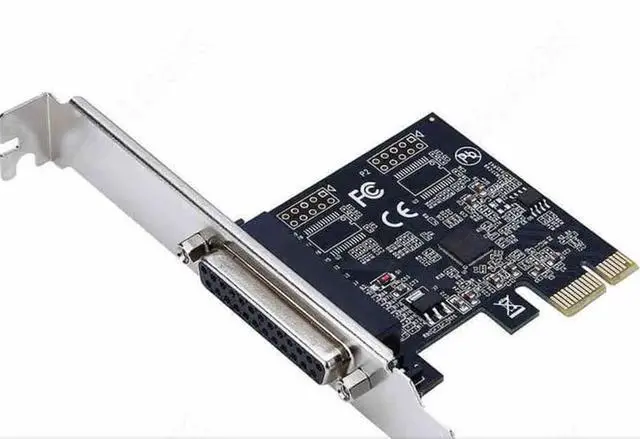

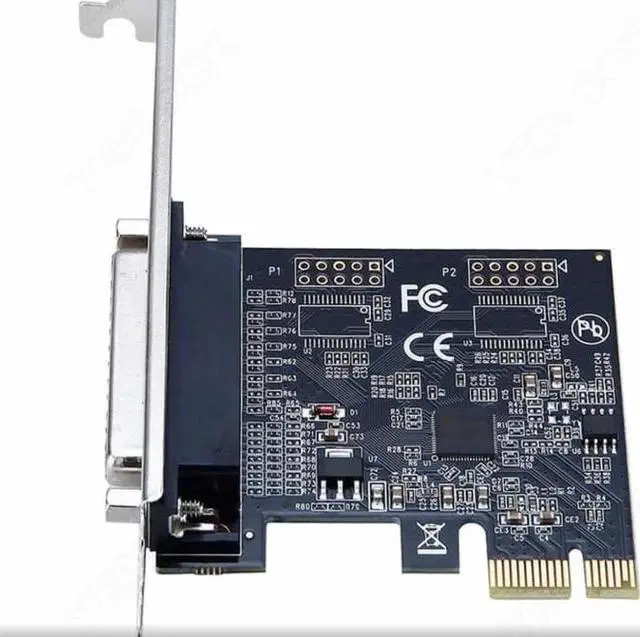

PCIe 1x DB25 Parallel Port LPT Printer PCI-E To Parallel Port Expansion Card Adapter Converter Chipset ASIX AX99100 for Desktop
Description:
Model number: TXB072
Chipset: ASIX/AX99100
Port number: 1* DB25 Parallel port
Interface: PCI Express 1x slot
Dimension: 65.2 *60*14mm
Support OS
Windows*10 (3264), 8/ 8.1 (3264), 7 (3264), Vista (3264), XP (3264), 2000
Windows Server 2012, 2008 R2, 2003 (3264)
Mac OS°10. x(Intel based, tested up to 10.9 )
Linux 2.4. x and later(Tested up to 3.5 )
Environment
Operating Temperature: 0-50
Relative Humidity: 10%-90%(non-condensing)
Storage Temperature: -0-80
Relative Humidity: 5%-90%(non-condensing)
Features
Accord with PCI-Express 1.0 a standard
PCI-Express rate 2.5 Gb/s and full duplex channel
One SPP, PS2, EPP, ECP Compatible IEEE 1284 printer ports
High speed data transfer rate as high as 1.5 MBMbyte/SEC
Built-in 256 bytes of FIFO
Extend one DB25 parallel in PC with PCl-Express slot
Parallel port transmision rate as high as 1.5 Mbyte/SEC
Compatable with IEEE 1284 printer ports
Supports plug and play
More Features:
PCI Express
o Single-lane (X1) PCI Express End-point Controller with PHY integrated
o Compliant with PCI Express 2.0 Gen 1
o Compliant with PCI Express card specifications
o Compliant with PCI Power Management 1.2
o Supports four PCI Express functions
o Supports both legacy and MSI Interrupt
o Supports ASPM Power Management
Parallel Port
o Compatible with IEEE 1284-SPP/Byte/ECP Mode
SPI Interface
o Programmable SPI clock frequency up to 42MHz
o Supports Mode 0, Mode 1, Mode 2 and Mode 3 timing modes
o Supports MSB/LSB first transfer fashion
o Programmable peripheral chip select, selecting up to 7 SPI devices
o Supports Non-Burst-Type transfer up to 8 bytes and/or Burst-Type transfer via DMA mode for high performance
o Supports to fragment large data block into severral smaller transfers on SPI bus to reduce software loading
