4K@60Hz HDMI to HDMI Video Converter Image Rotator 90/180/270 Degree,Support Up and Down Frequency Conversion,Frame Rate Changes,Audio Synthesis and Separation

Introduction :

This is a high-performance support for 4K@60Hz input and output of the audio and video converter products. Support up and down frequency conversion, frame rate change, support audio synthesis and separation; new graphics algorithm, high definition, high turn low, low turn high font are very clear, completely no fork. Can rotate the picture and other operations, simple and easy to use.

Feature

Compliance with HDMI 2.0b and HDCP 2.2 / 1.x specifications

Supports 18Gbps video bandwidth

Input and output video resolution up to 4K@60Hz

Support 3.5mm audio embedding and 3.5mm audio decoding output

HDMI input: 720*480~4096 * 2160/60Hz and unconventional resolution input

HDMI output: 4Kx2K 60hz/30hz/25hz,3840x1080 60hz,3440x1440 60hz,2560x1600 60hz/120hz/144hz, 1920x1200 60hz,1080P 60hz/50hz/30hz, 1600x1200 60hz, 720 60hz etc.

Compatible DVI

Without software settings,support for hot plug,Plug and play function

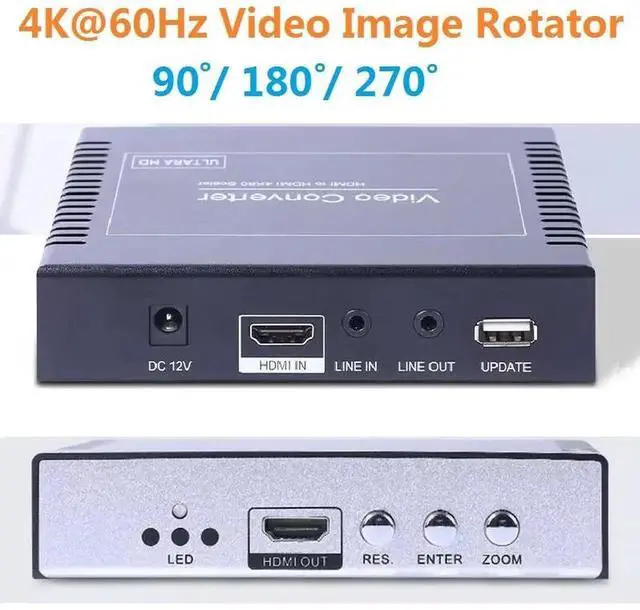

Image rotation 90°,180°,270°

Using DC12V / 1A external power adapter power supply,Install a simple

Can be customized according to the user needs

Parameters:

HDMI compatible: HDMI 2.0b

HDCP compatible: HDCP 2.2 / 1.x

Video bandwidth: 18 Gbps

Input resolution: up to 4K@60Hz

Output resolution: up to 4K@60Hz, Menu selection

Color space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0

Audio Format:

HDMI Audio: PCM2.0/5.1/7.1CH,Dolby Digital/Plus,DTS,DTS High Res

Analog audio: PCM 2.0

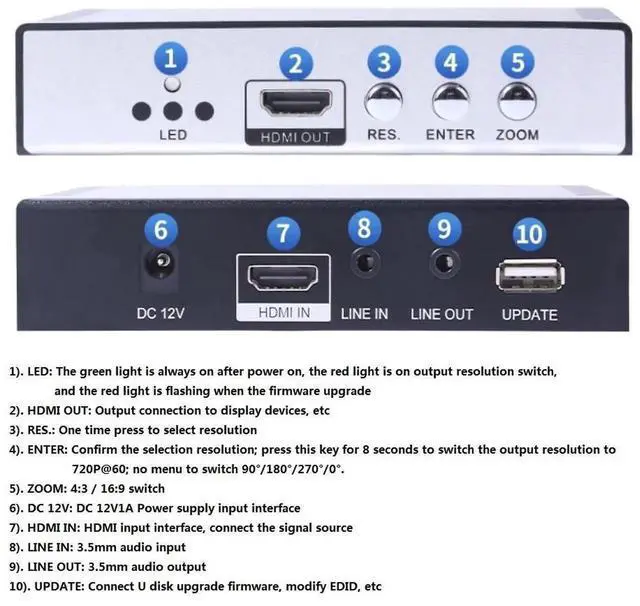

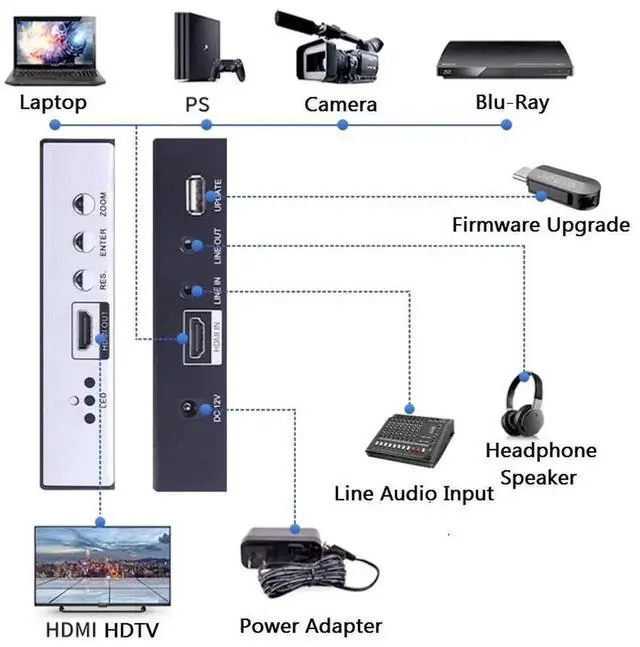

Input port: 1 x HDMI IN [Type A,19-pin port] 1 x L/R OUTPUT [RCA]

Output port: 1 x HDMI OUT [Type A,19-pin port] 1 x L/R OUTPUT [RCA]

Case: metal shell

Color: black and white

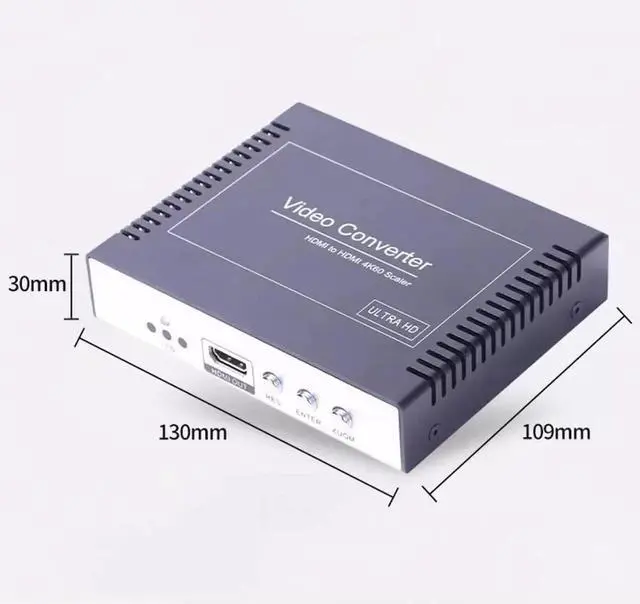

Size: 130mm(length) x 109mm(wide) x 30mm(high)

Weight: 420g

Power supply input: AC 100~240V 50/60Hz DC 12V/1A

Power consumption: 7W(maximum)

Perating temperature: -5°C ~ 50°C/32°F ~ 104°F

Relative humidity: 20 ~ 90% RH (no condensation)

Package Include:

1 x HDMI rotator

1 x power supply

1 x User manual
