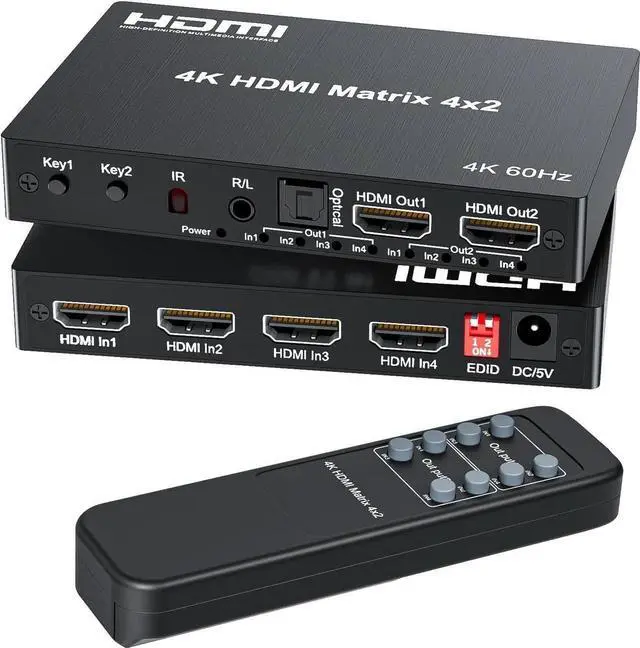

wusu 4x2 HDMI Matrix, HDR 4K@60Hz 4in2 Out HDMI Switch Splitter with IR Remote, HDMI Matrix Switch + Optical Toslink + 3.5mm L/R Audio Output, Support UHD HDMI2.0, HDCP2.2, 18Gbps, EDID, Audio Extract

4K HDMI Matrix 4X2 allowing you to connect 4 HD signal sources to 2 HD display monitors. Supports 3D and 8/10/12 bit deep color, and features with optical fiber or 3.5mm stereo audio output (be able to output at same time)

You can switch the signal source by using buttons on panel ( key1, key2); Also equipped with an infrared remote control, which makes switching videos more flexible and convenient

The Matrix Switch offers solution for office meeting and security connerns, data center control, speeches, conference room presentation, school and corperate trainning environments

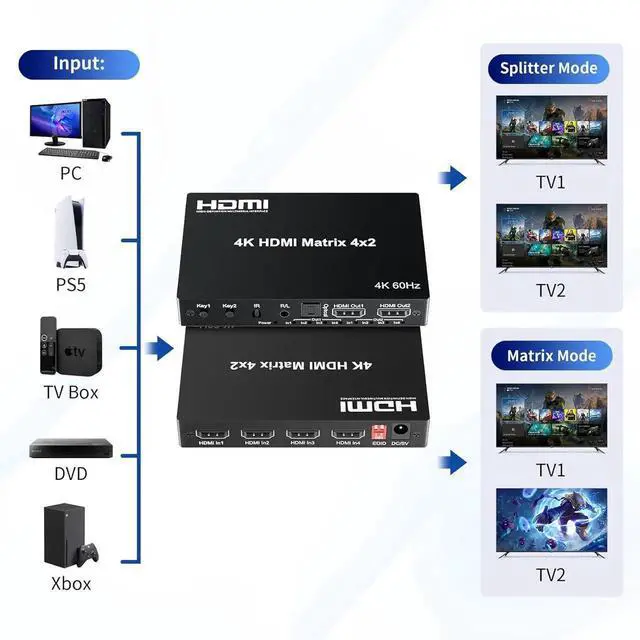

One Device - Two Mode

1. Work as HDMI Matrix Switcher

Replicate two different HDMI signal source

1. Work as HDMI Splitter

Duplicate same HDMI signal source

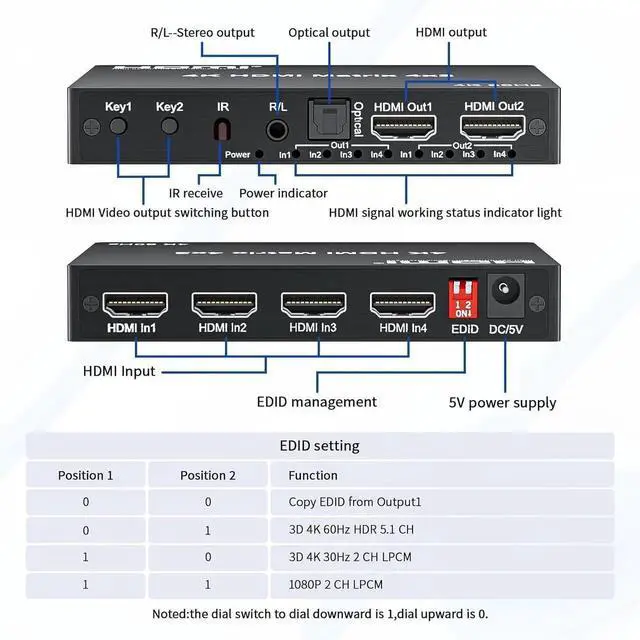

EDID function can set the video and audio format of the HDMI source

Flexible EDID switching provides 4 switching modes that can be met for different resolution needs

NOTE!!!

After you had set the EDID, please restart the HDMI Matrix Switch

4X2

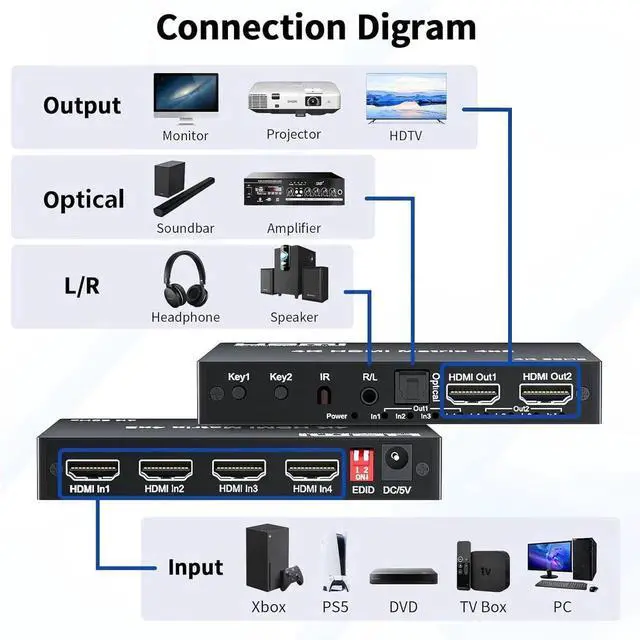

HDMI Matrix: Be able to connect up to 4 HD signal sources to 2 HDMI Display terminals via optical or digital stereo headphone output. Can be controlled by a IR remote control or button press

4K High Resolution: Supports resolution up to 4K (3840x2160) @60Hz, supports HDR, Ultra HD and 18Gbps video bandwidth. HDMI 2.0 and HDCP 2.2 complaint

Audio Extract: Supports LPCM/Dolby/DTS 5.1 channel and smart EDID management. Any input HD source can do audio extract separately or simultaneously by Optical SPDIF or 3.5 mm headphone audio output port

Compatibility: Support HDCP 2.2 and HDMI 2.0. Input signal compatible with computer, PS3, PS4, PS4 pro, Xbox, NS, HD player, Fire TV, Apple TV etc.

Output support: monitors, projector, HDTV etc

EDID Management: Allowing to set the EDID to adjust the resolution and audio format. You can switch the 2 input source by using remote control or pressing the manual button
