wusu Docking Station Dual Monitor 12 in 1 USB C Hub Multiport Adapter Triple Display 4 USB Ports 2 HDMI VGA Gigabit Ethernet 100W PD TF/SD Audio for MacBook/Dell/HP/Lenovo Lap with Thunderbolt 3/4

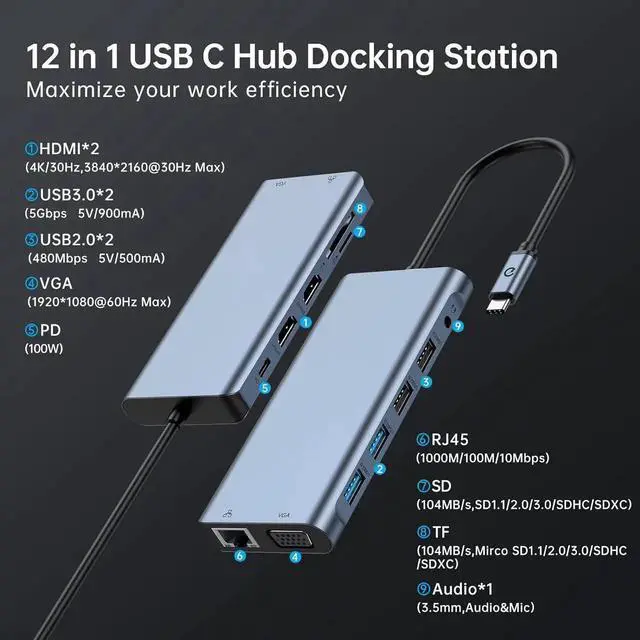

Technical Specifications:

1. 2* HDMI 4K Video Output Port
2. 1* VGA 1080P Video Output Port
3. 1* 100W USB C PD Charging Port
4. 1* 1000Mbps Gigabit Ethernet Port
5. 1* SD Card Slot & TF Card Slot
6. 2* USB 3.0 Port
7. 2* USB 2.0 Port
8. 1* 3.5mm Audio

Dual 4K HDMI Port and 1080P VGA Port: 12 in 1 USB C hub provides crystal clear video streaming with 4K@30Hz HDMI ports(Single video output) and 1080P@60Hz via VGA port

100W Power Delivery: Support 100W pass-through charging ,shared by hub and devices connected. The real output is based on adapter used(For Type-C laptop or Type-C smartphone charging)

Gigabit RJ45 Ethernet: Up to 1000Mbps. Gigabit Ethernet Lan port:No driver is needed. Just PLUG AND PLAY. 10/100/1000 Mbps Ethernet to ensure your work effective.

Speedy SD/TF Card Reader: Works with SD Card / SDHC / SDXC / Micro SD / Micro SDHC / Micro SDXC / RS-MMC / MMC Micro (Max storage capacity up to 2TB)

Up to 5Gbps Data Transfer: 2x USB 3.0 ports provide up to 5Gbps of rapid and reliable data transfers giving you the ability to move files in seconds. Easily manage your flash drive, hard drive and more. 2x USB 2.0 ports help you get a more stable connection when using mouse, keyboard and wireless devices.

3.5mm Audio Port: The 3.5mm Audio Port with mic and audio-out function for your usb c laptops.

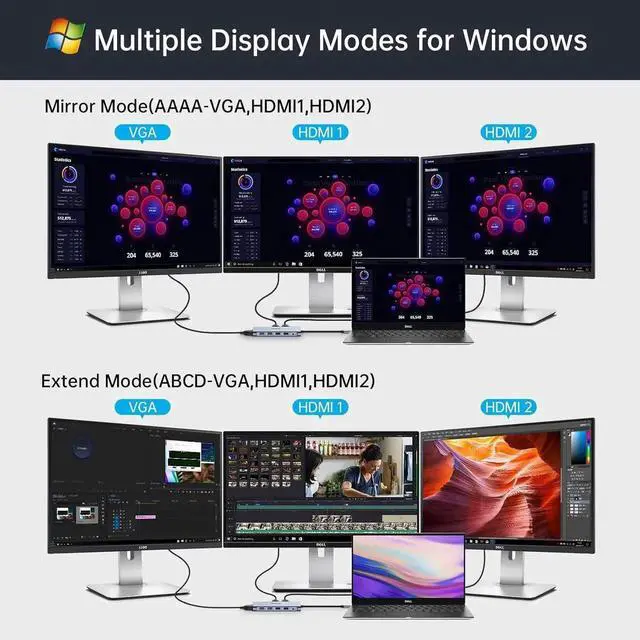

Docking Station for Windows Laptops (Support Triple Display)

Windows supports triple display. But Please Note: When three monitors are connected, the four screens including the host will only display three screens, and the remaining one will be black screen

Note: For Window laptop, support HDMI display up to 3840*2160@30Hz. Once using the VGA port, the resolution will be limited to Max 1920x1080 displays @60Hz

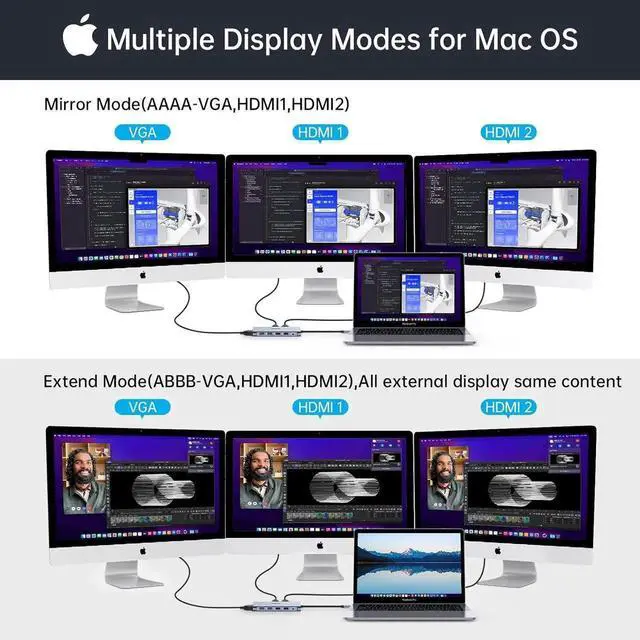

Docking Station for MacBook (Does NOT support triple display)

MAC OS system does not support triple display. It only supports mirror mode and extend mode ( extend mode means all the external monitors show the same, but different from the host). It is the OS system restriction

Multiple Display USB C Docking Station Video Resolution Configurations:

Single Monitor: 1*4K@30Hz(3840x2160) (HDMI)

Single Monitor: 1*1080P@60Hz(1920x1080) (VGA)

Dual Monitors: 2*4K@30Hz (HDMI + HDMI),2*1080P@60Hz (HDMI + VGA)

Triple Monitors: 3*1080P@60Hz (HDMI + HDMI + VGA)

(To achieve optimal 3840 x 2160 resolution, please use it with a 4K screen display monitor)

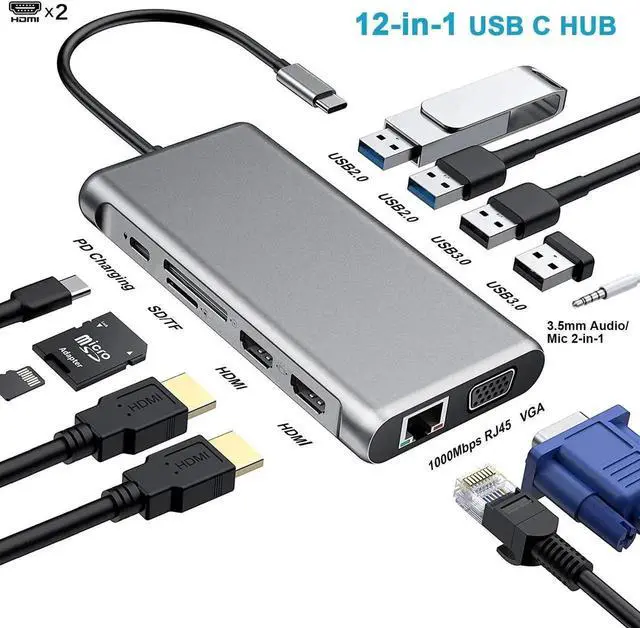

Massive USB C Hub: 12-in-1 USB C Hub Pro includes Ethernet/RJ-45 Port, Type C PD 3.0 charging port, 2 USB 3.0 Ports, 2 USB 2.0 Ports, 2 HDMI-compatible video output with 4K resolution, VGA, and SD & TF card reader. Mic/Audio port in extremely compact and sleek design.

Ultra HD 4K output& Triple display: mirror or extend your screen with the USB C adapter HDMI-compatible port and directly stream 4K UHD or full HD 1080P video to HDTV, monitors, or projectors for a cinema-like visual feast. Windows system supports Triple display. Connecting single HDMI-compatible supports up to 4K@30Hz and dual external monitor supports up to 1920x1080@60Hz on Windows.

Mirror/Non-Mirror Mode on Mac Os system: MAC OS system does not support MST. You can enjoy one private display content on your laptop and share all external monitors with another display content. Dual HDMI-compatible supports up to 4K(3840x2160@30Hz)on MAC OS system. The resolution is 1920x1080@60Hz when using VGA.
