wusu 60M HDMI KVM Extender over Ethernet Cat5e/6 1080P HDMI USB Extender Video Audio Extension Transmitter Support USB Keyboard Mouse
Limited time offer, ends 05/13 By DataHaven Technology

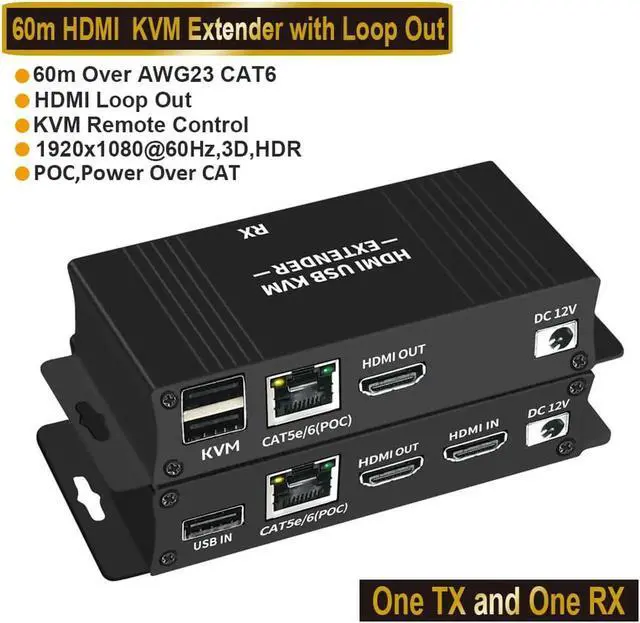

- HDMI extender provides extension of HDMI signals long distances over a single CAT5e/6 cable, it supports high resolution up to 1920x1080@60Hz, POC,HDMI loop out and KVM Remote control. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
- Long range transmission:up to 60m/196ft over a single AWG23 CAT6 cable;
- Video resolution:Up to 576P,720P,1920x1080P@60Hz,3D,HDR;
- Audio format:LPCM2/5.1/7.1,Dolby Digital,DTS 5.1,Dolby Digital+ ;

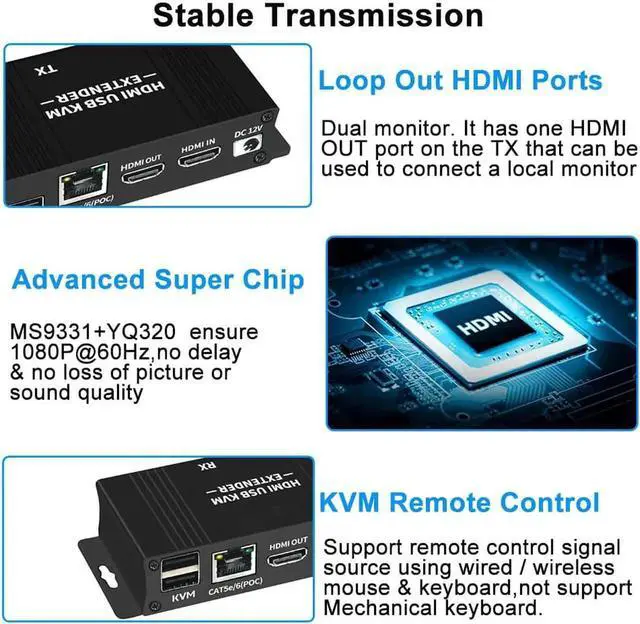

- HDMI loop out function:The transmitter with one HDMI local loop out;
- KVM Rmote Control:keyboard and mouse remote control transmitter from long distance;

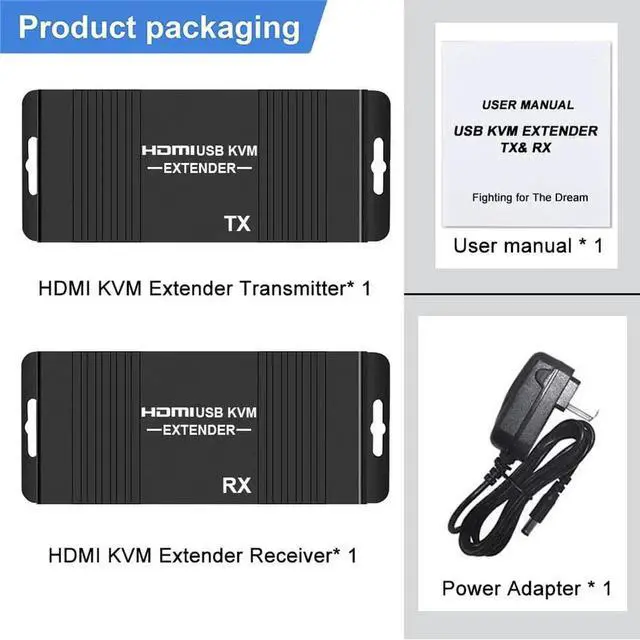

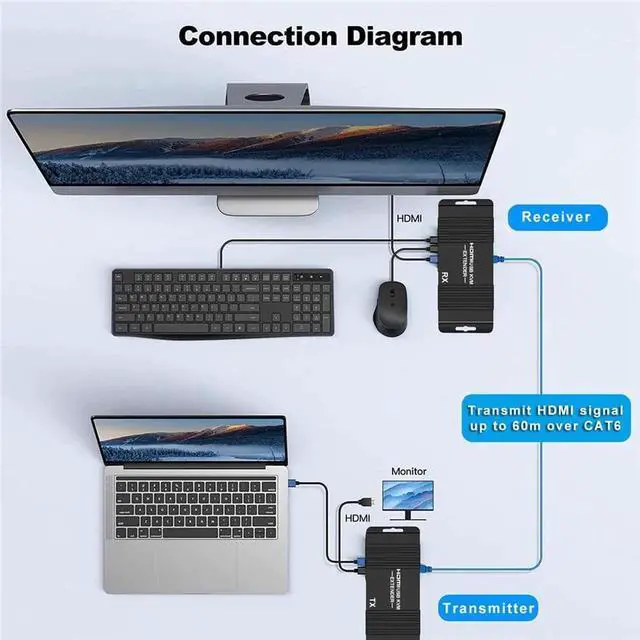

- Male to male:one TX to one RX applicataion;
- Video standard:compliance with HDMI 1.4b and HDCP 1.4 ,and compliant DVI standard;
- Built-in ESD protection system:make transmission much safer. Perfect hdmi extension adapter for large homes, factories, construction sites, data control centers etc;
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
NEW 60M HDMI KVM Over Network Extender 1080P HDMI Transmitter by RJ45 CAT5e CAT6 Extensor Support KVM remote control
HDMI KVM Extender with POE & Loop Out 1080P HDMI USB Extender 60m No Loss RJ45 to HDMI Extender Transmitter Receiver over Cat5e/Cat6
Description:
AUBEAMTO HDMI extender provides extension of HDMI signals long distances over a single CAT5e/6 cable, it supports high resolution up to 1920x1080@60Hz, POC,HDMI loop out and KVM Remote control. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Specifications:
Video
Standards: HDMI 1.4b; HDCP 1.4 and DVI compliant
Maximum pixel clock: 300MHz
Maximum data rate: 10.2Gbps
Resolution: 1920X1080P@60Hz
Connector: HDMI-A
Impedanc: 100ohm
USB

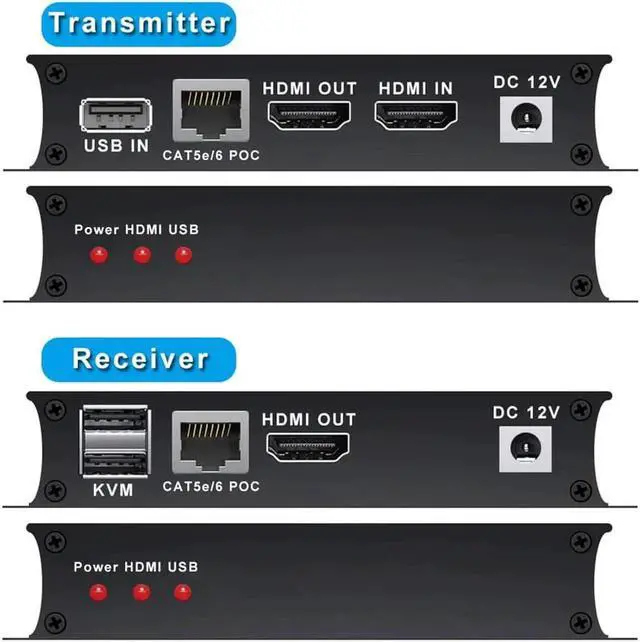

Interface: PC: Type B USB interface; connect to pc;
K/M: connect wired or wireless USB keyboard and mouse
USB signal: HID Signal
CAT
Interface: RJ45/IEEE-568B

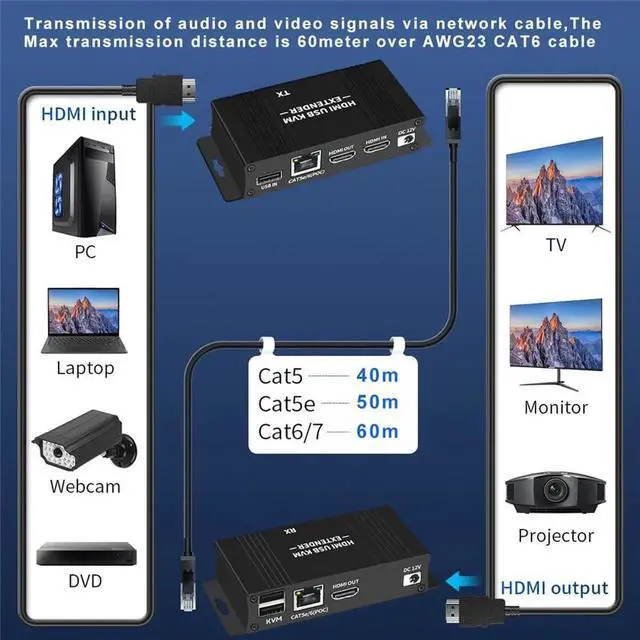

Transmission distance: CAT5:40m/131ft,CAT5e:50m/164ft,CAT6:60m/196ft
Features:
- Long range transmission:up to 60m/196ft over a single AWG23 CAT6 cable;
- Video resolution:Up to 576P,720P,1920x1080P@60Hz,3D,HDR;
- Audio format:LPCM2/5.1/7.1,Dolby Digital,DTS 5.1,Dolby Digital+ ;

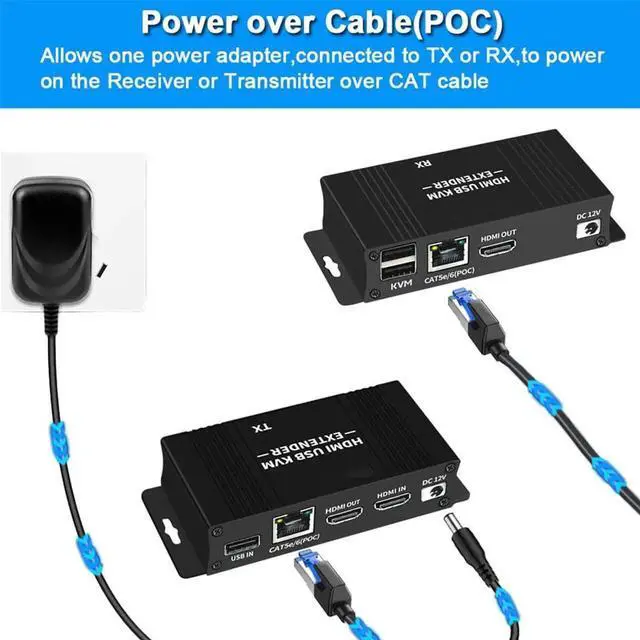

- POC function:Power over CAT cable,only need one power adapter;
- HDMI loop out function:The transmitter with one HDMI local loop out;
- Uncompressed mode:ZERO Delay,No loss;
- KVM Rmote Control:keyboard and mouse remote control transmitter from long distance;
- Male to male:one TX to one RX applicataion;
- Video standard:compliance with HDMI 1.4b and HDCP 1.4 ,and compliant DVI standard;
- Built-in automatic adjustment system:make the image smooth, clear and stable;
Note:
- the K/M USB port only support wired or wireless keyboard and mouse,not support Mechanical keyboard,USB camera,Scanner,USB flash driver ,printer etc.
- For CAT cable,please you use AWG23 CAT5e/6 cable with IEEE-568B connection.
