wusu 2 Port 8K HDMI KVM Switch 2 in 1 Out 8K@60Hz 4K@120Hz 2 PC to 1 Monitor with 4 USB 3.0 Ports for Sharing Keyboard, Mouse, U Disk

A more functional and 8K-capable HDMI switch - 8K HDMI KVM Switch

With more and more devices in the home or office, there is less and less space. In this case, we have to find ways to streamline the number of devices to make more space available.

For the time being, the presence of a switcher is a great space saver. Using a switcher can sometimes save the space of monitors or hosts, and it is usually possible to switch between images quickly with the press of a single button.

What is KVM? KVM refers to Keyboard, Video and Mouse. This HDMI KVM switches allow you to share a keyboard, mouse and other hardware with USB plugs between your two hosts while sharing a monitor.

1.Working with two PCs at one desk is inconvenient to use two sets of keyboards and mice. The two monitors also occupy a lot of space on the table. But an HDMI KVM switch can help you save space and cut down on redundant gear. Two PCs can share a keyboard and mouse and a monitor through this switch.

2.This KVM switch is equivalent to a combination of an HDMI switch and a docking station. It comes with 4 USB 3.0 ports that can be used to connect external devices such as mouse, keyboard, printer, etc. Moreover, by connecting two PCs to one monitor through HDMI cables and the switcher, it is possible to quickly switch the picture of the two PCs by simply pressing "SELECT".

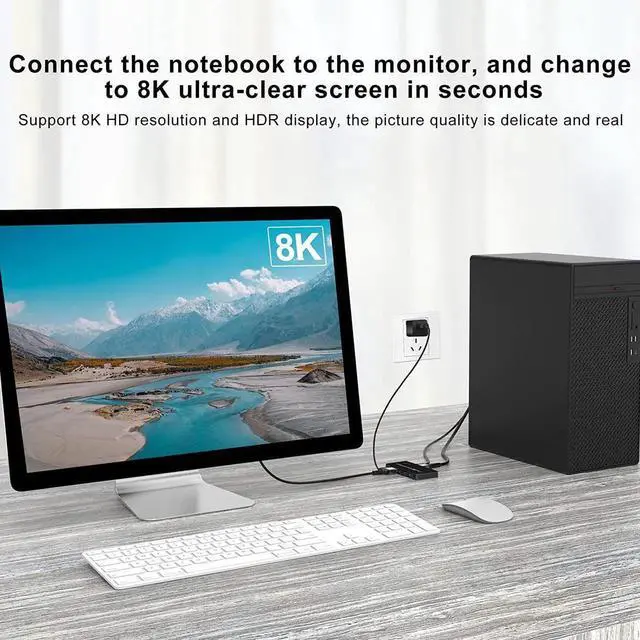

3.Perhaps you will need to output the images from your laptops to your TV or a bigger monitor for watching a movie or having a meeting. The HDMI 2.1 port can support up to 8K@60Hz and 4K@120Hz. If your laptop can support 8K or 4K resolution, the switch can transfer 8K or 4K picture from the laptop to your TV or another monitor with no pressure.

4.The package has included two USB 3.0 cables (Type A to Type C) and one USB 2.0 cable (Type A to Type C). You only need to prepare three HDMI cables, and it is recommended that using standard 8K HDMI cables (most 4K HDMI cables can only support refresh rates up to 4K@60Hz, but 8K HDMI cables can support up to 4K@120Hz/60Hz and 8K@60Hz refresh rates).

5.Since this is a HDMI switcher, just using the HDMI cables and the switcher to connect two PCs and a HDMI monitor can achieve the picture switching function. If you want to use 4 USB ports to expand the KVM function, you only need to plug the HDMI cables and the USB C cables to the corresponding ports (Please note that both the Type C port and the HDMI port of "PC 1 INPUT" need to be connected to the same computer, and the same requirements for "PC 2 INPUT").

Extended functionality

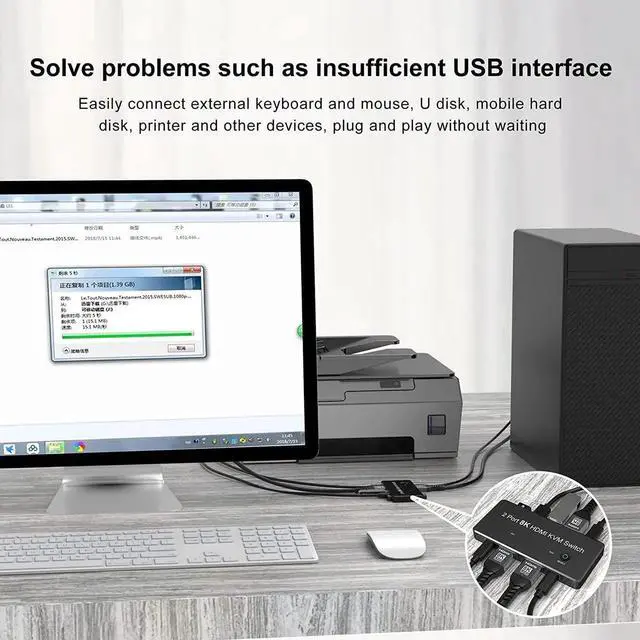

In addition to the picture-switching functionality, the switch has four USB ports for connecting a variety of hardware, such as a mouse, keyboard, USB memory stick and printer.

One key switch

As with most switchers, there is no need for complicated operation, as long as the switcher is properly connected to each device via the cables, you can quickly switch the picture on one monitor between multiple hosts with pressing a button.

Type C charging port

The increasingly popular Type C charging port has been adopted to replace the previous micro usb charging hole, more in line with the needs of today's users.

8K support

Although product for 8K resolution is still not common, it is not expected to take long for 8K products to become widespread. This switcher supports 4K too, and even if you don't have 8K yet, it will help you with your switching needs.

Please pay attention to following tips before you buy this product:

1.If you do not need to use those 4 USB 3.0 ports to expand the function, you can directly use the HDMI cables to connect two PCs and one monitor to the KVM switch to achieve the switching function.

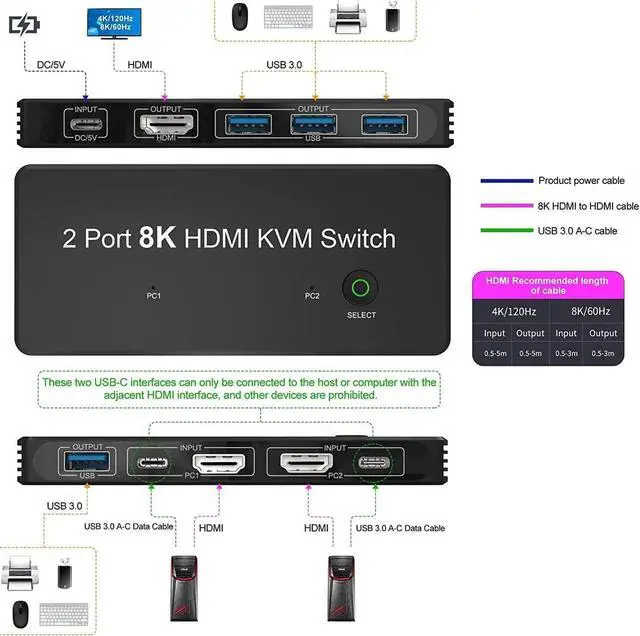

2.If you want to connect a keyboard, mouse, printer or other devices through the four USB 3.0 ports and share them on two PCs, you need to connect the switch to the PC 1 and PC 2 through the HDMI cables and USB 3.0 cables (Type A to Type C) at the same time. But please notice that, the Type C port and the HDMI port in the PC 1 INPUT area only can use for PC 1 at the same time, PC 2 INPUT area's ports are the same too.

3.You can use the attached USB 2.0 Type A to Type C cable for feeding power to the switch through the [DC/5V] port, but this port can not be used to transfer data.

4.When using this switch, it is recommended to use 8K HDMI cables and USB cables at both ends no longer than 2m.

5.If you want to achieve 4K@120hz or 8K@60hz with this switch, you need to make sure that all HDMI cables are standard 8K cables, and that both the source device and the monitor support these resolutions and refresh rates. The switch itself doesn't have the function of improving the picture, it is only used for switching and function expanding.

6.HDMI cable requires additional preparation, this product does not come with an HDMI cable.

A small machine that can achieve picture switching and many external device sharings

This switcher can be used for both screen switching and the sharing of several external devices, but it is not very large! Compared to many of today's mobile phones, this switcher is even smaller! This means that you can trade such a small device for more space for other things, especially if you need to use two computers.

------------------------------------------------------------------

Package:

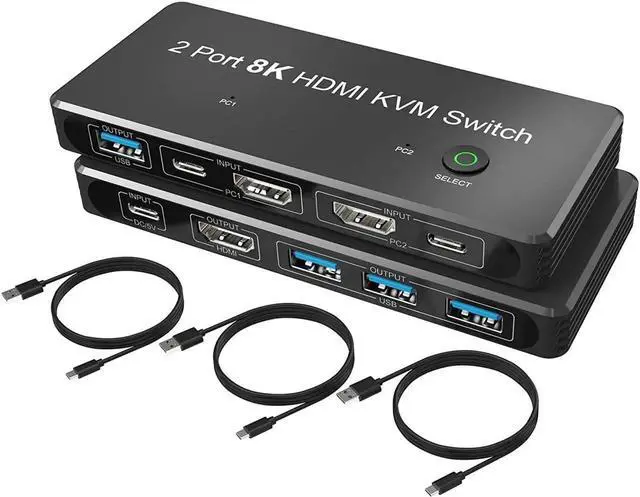

1. 1 x HDMI KVM Switch; 1 x USB 2.0 Cable (Type A to Type C); 2 x USB 3.0 Cable (Type A to Type C); 1 x Quick Start Guide

-------------------------------------------------------------------

System requirements:

Console:

1. HDMI monitor; Standard wired USB keyboard; Standard 3-button wired USB mouse; U disk, hard disk, etc.

Computer:

1. 1 x HDMI cable; USB Type-A port

Operating systems:

1. Windows 7, 8, 10, 11; Mac OS X 9.0+

Specification:

1. Resolutions: Up to 8K (7680*4320)
2. Bandwidth: HDMI 2.1: 48Gpbs, USB 3.0: 5Gpbs
3. Refresh rate: 8K@30Hz/60Hz; 4K@60Hz/120Hz; 1080P@24Hz/50Hz/60Hz/120Hz
4. Operating temperature: -15°C-55°C/5°F-131°F
5. Color depth: 8bit /10bit /12bit
6. Support chroma: 4:2:0 / 4:2:2 / 4:4:4
7. Input port: 2xHDMI TypeA Female Port, 2xUSB TypeC Female Port(Date), 1xUSB TypeC Female Port(Power)
8. Output port: 1 x HDMI Type A Female Port, 4 x USB 3.0 A Female Port

A more functional and 8K-capable HDMI switch8K HDMI KVM Switch

What is KVM? KVM refers to Keyboard, Video and Mouse. This HDMI KVM switches allow you to share a keyboard, mouse and other hardware with USB plugs between your two hosts while sharing a monitor.

For the time being, the presence of a switcher is a great space saver. Using a switcher can sometimes save the space of monitors or hosts, and it is usually possible to switch between images quickly with the press of a single button.

Specification:

Resolutions: Up to 8K (7680*4320)

Bandwidth: HDMI 2.1: 48Gpbs, USB 3.0: 5Gpbs

Refresh rate: 8K@30Hz/60Hz4K@60Hz/120Hz1080P@24Hz/50Hz/60Hz/120Hz

Operating temperature: -15-55/5°F-131°F

Color depth: 8bit /10bit /12bit

Support chroma:

4:2: 0 / 4:2: 2 / 4:4: 4

Input port: 2xHDMI TypeA Female Port, 2xUSB TypeC Female Port (Date), 1xUSB TypeC Female Port (Power)

Output port: 1 x HDMI Type A Female Port, 4 x USB 3.0 A Female Port
