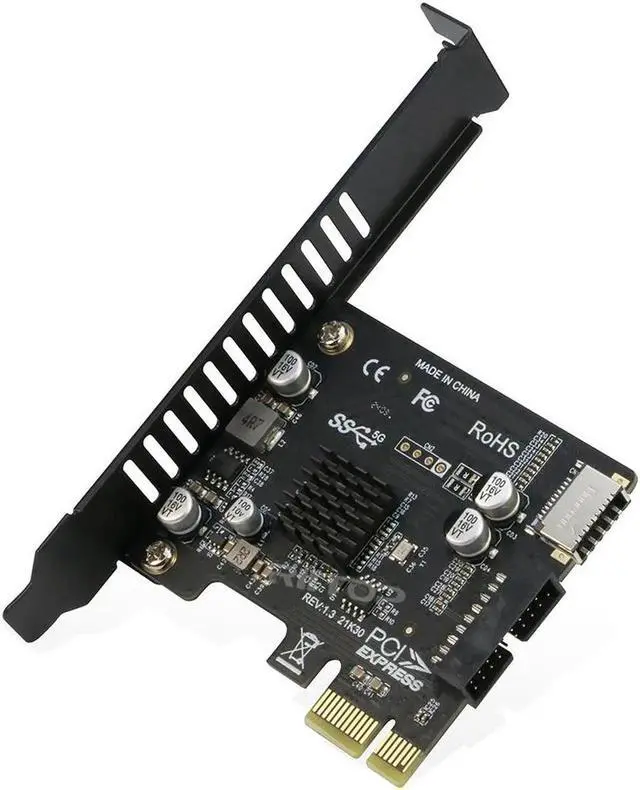

PCI-E 1X to USB 3.2 GEN1 5Gbps 20pin Front Panel Header (to Type-c Front Panel Header) + USB 3.0 19Pin Socket Expansion Card,Type-E Internal 20-pin Front Panel Connector Riser Card

PCIe to 20Pin + Type-E Internal Expansion Card Adapter

Features:

RIITOP USB Type-E Card can convert the PCIe x1 into built-in 1x TYPE-C 3.2 gen1 front-end (Type-E 5Gbps) and 1x USB 3.0 20Pin Scoket, you may connect your available front Panel with Type-E or 20Pin even there is no such port on mainboard.

Chip: VIA VL805.

Transfer rate:5 Gbit/s.

Support System:XP/ WIN7/ WIN8/ VISTA/ WIN10/ WIN11 32BIT/64BIT/ LINUX OS System.

Package Includes:

1x PCI-E 1X to USB 3.2 GEN1 5Gbps 20pin Front Panel Header + USB 3.0 19Pin Socket Expansion Card.

Hardware Requirement:

RIITOP USB Expansion Card adopts PCIe x1 design, it can work on PCIe 3.0/4.0 x1, X4, X8, X16 slot, but do not work on any PCI slot. And coming with full-size bracket will works on Standard Size PCs. Can not supports Mini PCs.

20Pin + Type-E Internal Ports

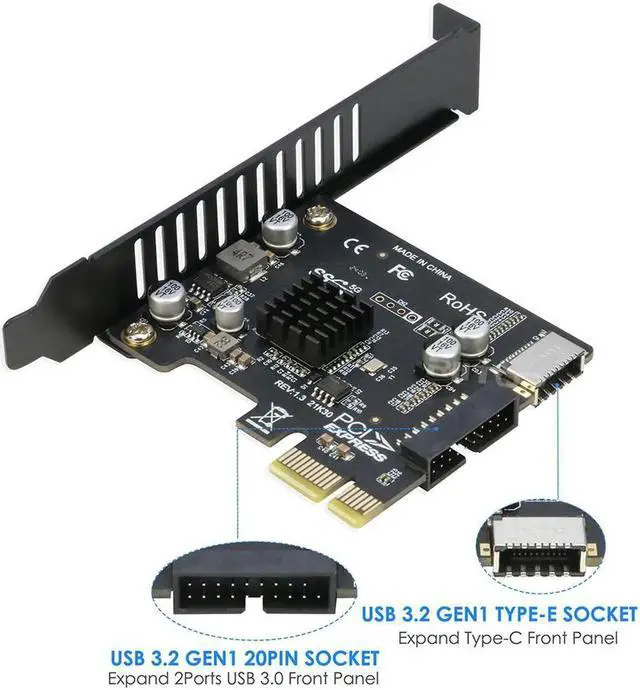

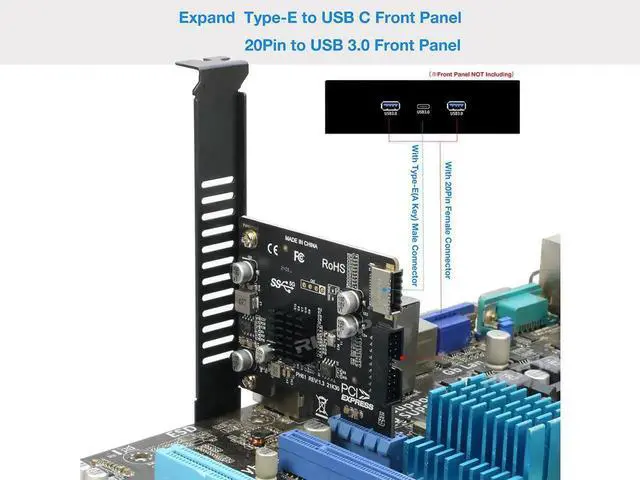

1x 20Pin (19+1xempty) USB 3.0 header will extend to 2x USB-A ports on front panel of Desktop PCs . 1x Type-E (A Key) USB C Header will expand 1x USB-C Port.

They sharing 5Gbps bandwidth.

Built-in 5Gbps Chipset With Heatsink

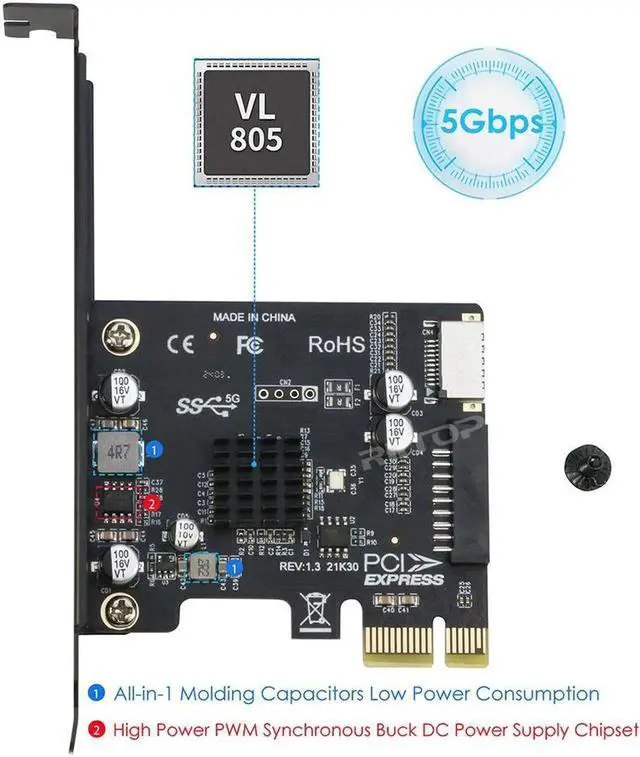

RIITOP USB 3.0 PCIe Adapter adopts VIA VL805, total 5Gbps bandwidth. The advanced Heatsink will help the chipset working in lower temperature, avoid having any issues with reliability due to overheating.

Easy to install:

RIITOP PCIe to 20Pin + Type-E Host Internal card can be inserted to PCIe slot on Mainboard, no additional power supply to connect.

Please Note: The card can not be connected with any External USB Device directly, You may have 20pin or Type-E Front Panels to work with it together.

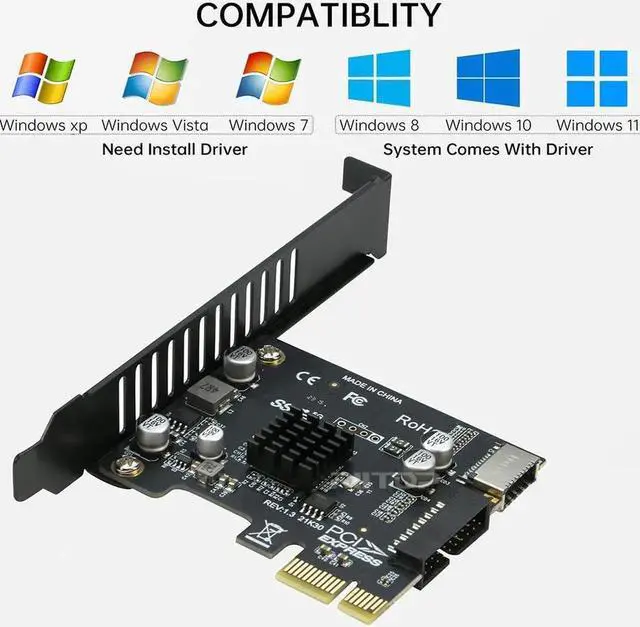

Compatible OS:

Plug and Play on Windows 11, 10, 8.x (32/64bit) and Windows Server 2012, 2012R2, 2016, 2019, 2022 systems. But Need to Install Driver on Windows XP, Vista, 7 (32/64bit) and Windows Server 2003, 2003R2, 2008, 2008R2 (32/64bit) systems.

Features:

PCI-E to USB3.2 GEN1: This adapter is a converter that converts the motherboard's available PCI-E 1x to USB 3.2 GEN1 connector + 20-PIN socket.

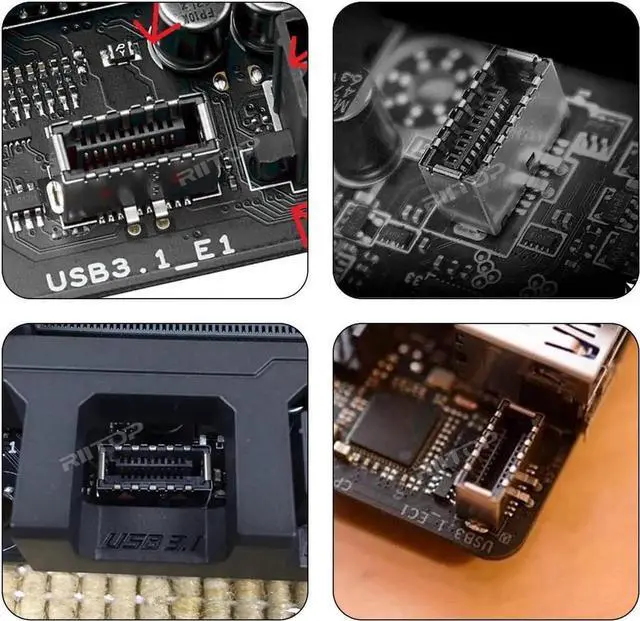

Connector 1: USB 3.2 Gen1 TYPE-E Front Panel Header. Connector 2: USB 3.0 19PIN interface. The adapter is the perfect solution to use the USB 3.2 connectors with Type-C or Type-A.

SuperSpeed USB 3.0--- Supports transfer rates up to 5Gbps. Enjoy blazing-fast copying of video, music, photo and data files between USB devices and your computer.

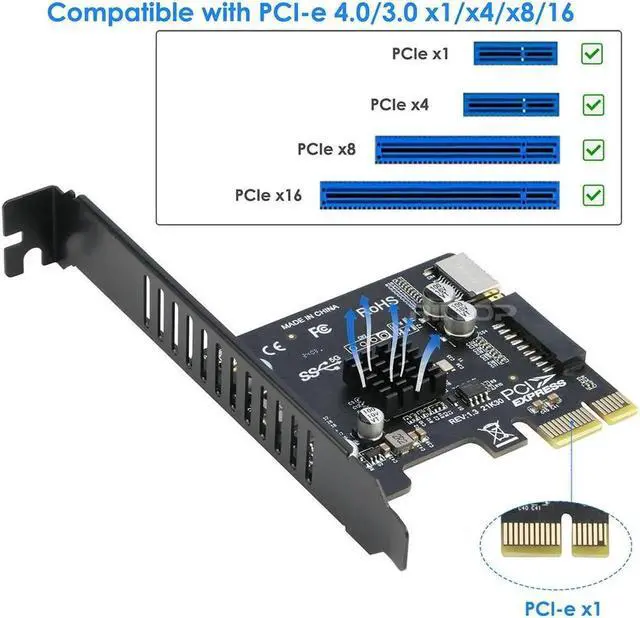

Good compatibility---Compatible slot---PCIe x1, PCIe x4, PCIe x8, PCIe x16, compatible with Windows XP, WIN7, WIN8, VISTA, WIN10, WIN11 32BIT/64BIT, LINUX OS System.

Note: This riser card is USB3.2 GEN1 5Gbps. Chipset: VIA VL805.

Package Contents:

1x PCI-E 1X to USB 3.2 GEN1 5Gbps 20pin Front Panel Header + USB 3.0 19Pin Socket Expansion Card.
