M.2 to USB Adapter, RIITOP M.2 NVME SATA SSD to USB3.1 Gen2 10Gbps, USB to NVME PCIe SSD Reader M Key & B+M Key Max 4TB Support UASP for 2280 2260 2242 2230 SSD Enclosure

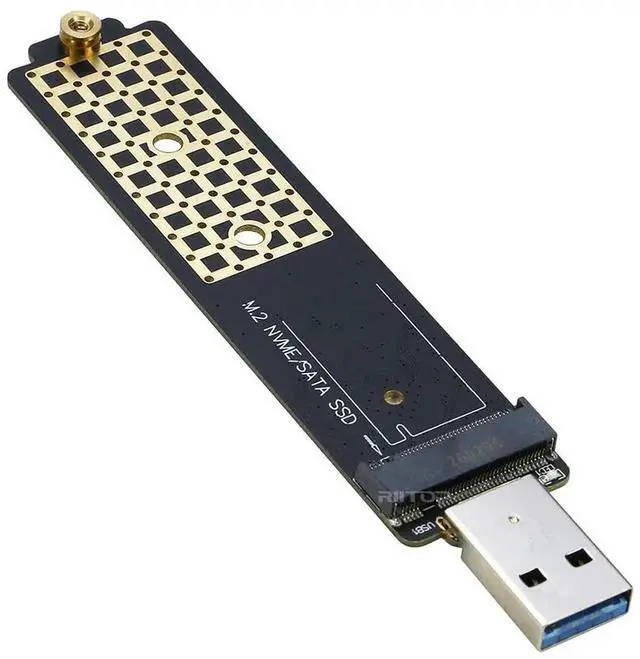

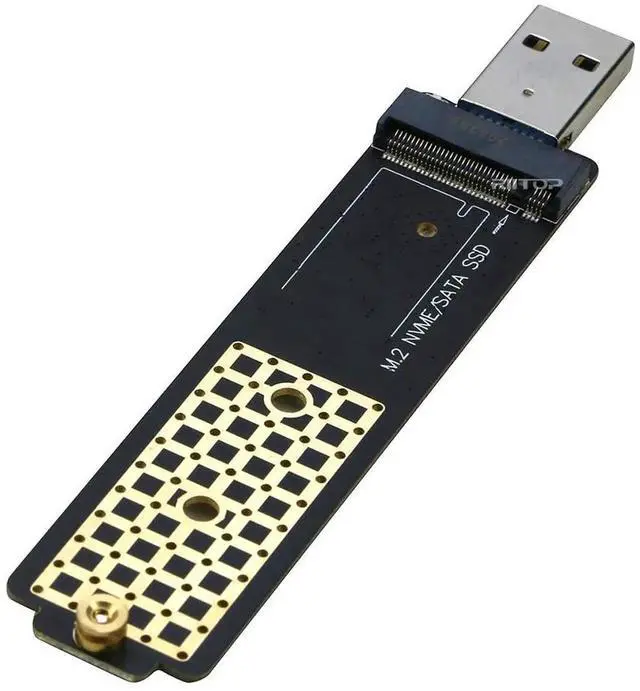

M.2 NGFF NVMe to USB Adapter Converter Board

Note:

1. Support Both B-Key and M-Key M.2 SSD (PCIe NVMe, NGFF SATA Based ).

2. Date Transfer Rate up to 10Gbps for USB 3.1 Type A, 5Gbps for USB 3.0 Type A.

Specifications:

Item: M. 2 SSD to USB 3.1 Type A Adapter Board.

Material: PCB Board.

Protocol: B-Key and M-Key.

Input: M.2 SSD Slot, both B-Key and M-Key M.2 SSD (NVMe, SATA Based).

Output: USB 3.1 Type A.

Dimension: 115*25*6 mm.

Transfer Speed: 10Gbps/ 5Gbps (NOTE: If connect with usb 3.0 type a port, speed will be 5Gbps).

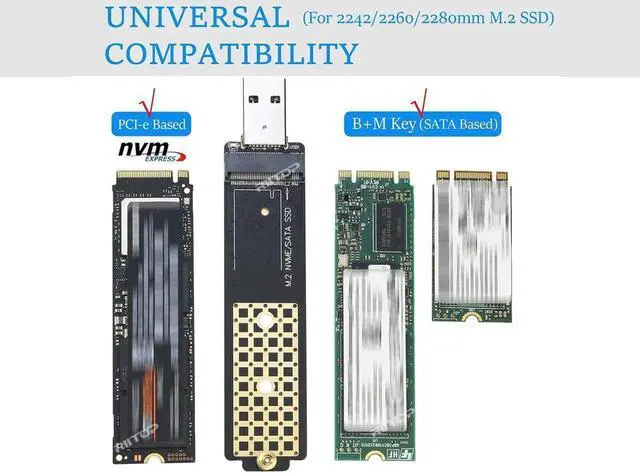

Compatible with:

Apply to 80x22mm, 60x22mm and 42x22mm SSD.

Such as Samsung PM961, 960EVO, 970 EVO /950Pro/ 960Evo/ XP941/ PM951/ PM961/ SM951/ SM962, WD Black NVMe SSD; and Samsung 860 EVO, WD SATA M.2 SSD.

Package Including:

1x RIITOP M.2 (B-Key and M-Key) SSD to USB Type A Adapter.

Features:

Chinest: Realtek 9210B chipset.

RIITOP M.2 NGFF NVMe to USB 3.1 Type A Adapter.

Both B-Key and M-Key M.2 SSD (NVMe and SATA Protocol) Support.

Date Transfer Rate up to 10Gbps for USB 3.1, 5Gbps for USB 3.0 Type A.

Plug & Play and Hot-Swapping.

Supports Windows XP/Visata/7/8/10.

Compatible with 2242, 2260, 2280 mm Four Different Specifications M. 2 SSDs.

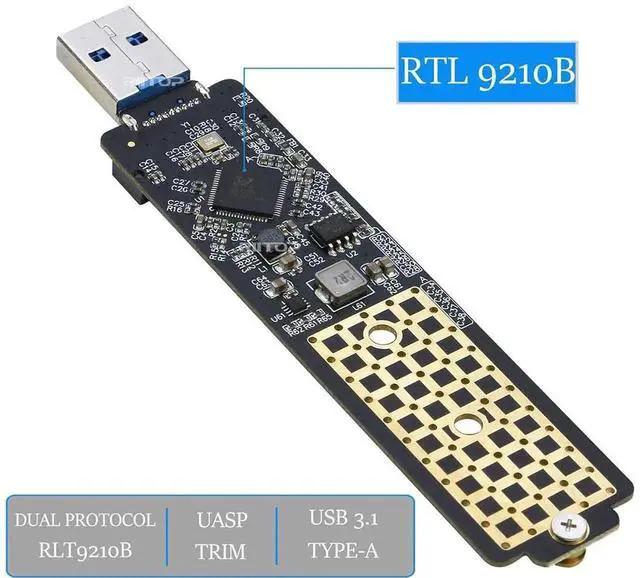

Adopt Realtek 9210B master chipset, USB3.1 GEN2 10Gbps transmission speed.

Compatible:

Both B-Key and M-Key M.2 SSD (NVMe and SATA Protocol) Support.

Apply to 80x22mm, 60x22mm and 42x22mm SSD.

Such as Samsung PM961, 960EVO, 970 EVO /950Pro/ 960Evo/ XP941/ PM951/ PM961/ SM951/ SM962, WD Black NVMe SSD; and Samsung 860 EVO, WD SATA M.2 SSD.

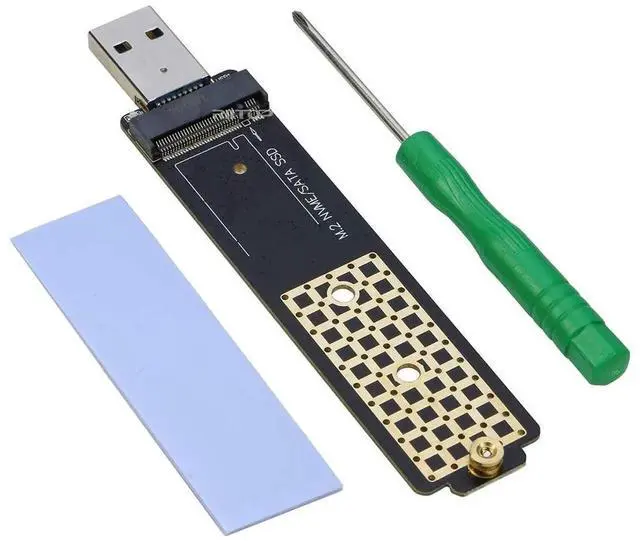

Package Content:

1x RIITOP M.2 NVMe NGFF SSD to USB Type A Adapter.

1x Screwdriver.

1x Silicone heat sink.

Note:

1. Compatible with M.2 NVMe/SATA PCIe M key, PCIe B&M key SSD.

2. NVMe and SATA SSD are NOT included.

3. NOT Compatible with M.2 PCIe AHCI SSDs.

Specifications:

Item: M. 2 to USB Type A Adapter Card.

Material: PCB Board.

Protocol: Both M Key and B+M Key.

Input: M.2 SSD Slot, support both M-Key and B+M Key M.2 SSD (NVMe, SATA Based).

Output: USB 3.1 Type A.

Dimension: 115*25*6 mm.

Transfer Speed: 10Gbps/ 5Gbps (NOTE: If connect with usb 3.0 type a port, speed will be 5Gbps).

Compatible with:

Apply to 80x22mm, 60x22mm and 42x22mm SSD.

For Samsung:970 EVO Plus/970 EVO/970 Pro/960 EVO/950 PRO/860 EVO/850 EVO

For Crucial: P1/P2/P5.

For Western Digital: WD Blue SN550/ WD_Black SN750/ WD_Black SN850/WD Blue 3D NAND SATA SSD M.2 2280.

WD Red SA500 NAS SATA SSD M.2/480GB WD Green SATA SSD M.2 2280.

For Intel: 600P/660P/665P/760P/545S/Optane 800P/Optane H10.

For Kingston: A2000/KC2000/KC2500/SA400M8.

For ADATA: SX8200Pro/XPG SX6000 Lite/S11 Lite/S11 Pro/SP580M.

For Seagate:BarraCuda 510/FireCuda 510/FireCuda 520.

For Toshiba: RC500/RD500/RC100/RC10.

For Pioneer: APS-SE20/SE20QN/APS-SE20P/APS-SE10N.

Package Including:

1x RIITOP M.2 (NGFF&NVMe) USB Adapter Card.
