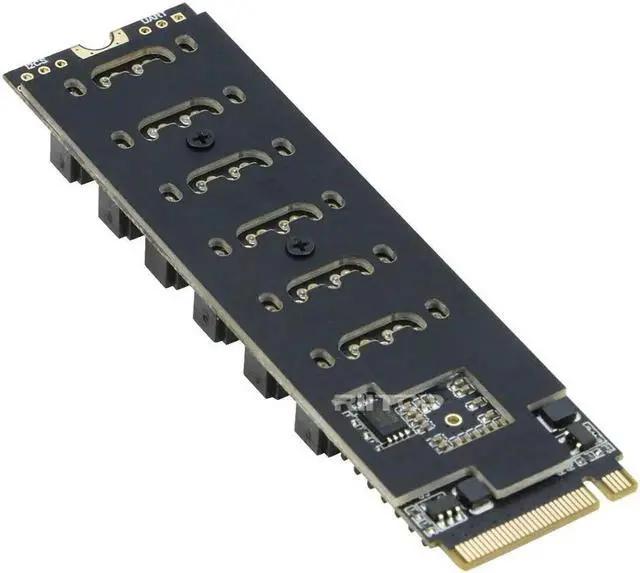

M.2 NVMe to SATA 3.0 Adapter Card, M.2 M EKY PCIE3.0 to SATA 6 Port Adapter Card, ASM1166 6Gbps , Come with 6x SATA3.0 Cable

M.2 to SATA 3.0 Adapter [6-Port]

RIITOP M.2 NVMe to 6 Ports SATA III Expansion Card Adapter 6Gbps with Chipset ASM1166

Input: PCIe 3.0 x2 NVMe M Key

Output: SATA Protocol 3.0 6Gbps

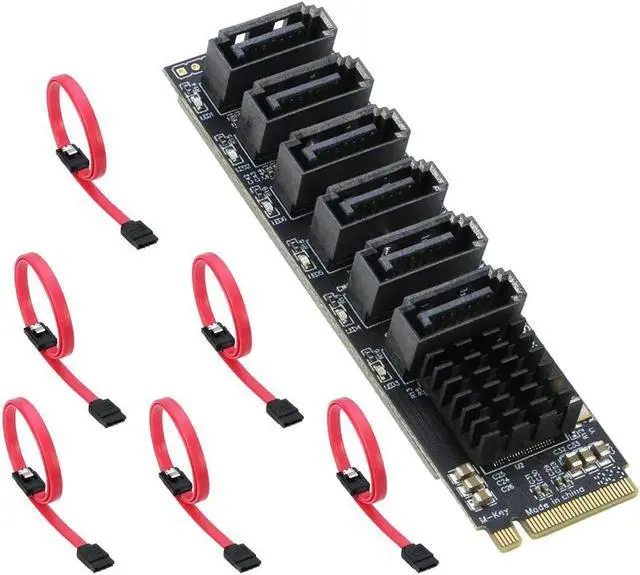

Package Including:

1x M.2 NVMe to SATA Card

6x SATA 3.0 6Gbps Cable

1x Screw

1x Screwdriver

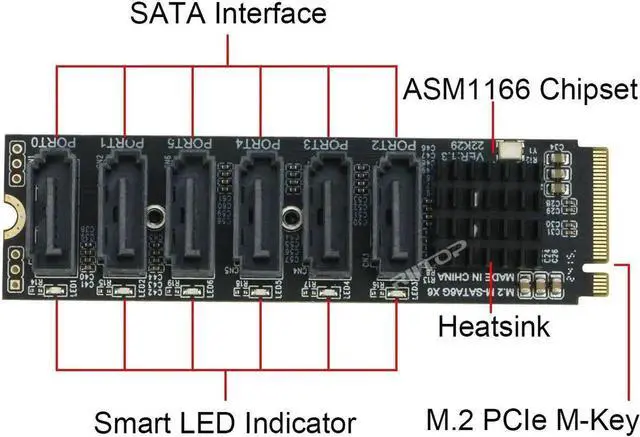

LED Indicators for each port

M.2 to SATA Adapter can expand 6 Ports SATA 3.0 Port via only 1 M.2 NVMe Slot. Each port with LED Indicator, real-time monitoring of working status

ASMedia ASM1166 Controller

RIITOP M.2 to SATA Adapter adopts ASMedia ASM1166 chip to make transmission more stable, speed up data processing, and ensure stable and efficient data transmission

Excellent Heat Dissipation

With heat sink on Smartchipset, which can reduce the temperature quickly and maintain the stability of data transmission

Package Includes:

1x RIITOP M.2 M Key NVME to SATA3.0 6 Port Adapter Card.

6x SATA III Cables.

Screwdriver.

Screws.

Features:

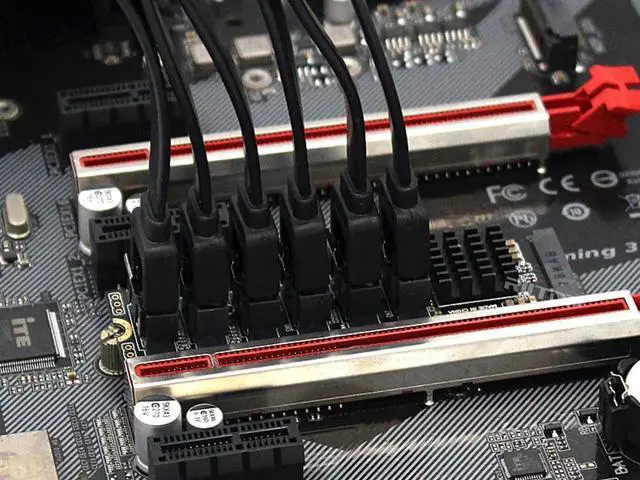

It connects 6* SATA3.0 SSD or HDD to your desktop computer with 6* SATA cables(NOT included!) to improve your system performance and expand overall internal storage. (NO-Support Raid)

Support PM (port Multiplier) that is not in a RAID configuration.

Compatible with SATA hard drives & Solid state drives and computer systems with SATA controllers.

Base on ASMedia ASM1166 chip, more stable and wider compatible.

NOT support hot swaping. Plug and Play, no additional software installation or setting required.

Supports Windows 7/8/10, Windows Server 2008 R2/2012 R2/2016/2019, RHEL/CentOS 6/7/8, Debian 9/10/11, Ubuntu 16/18/20/21, SUES 11/12/15, FreeBSD 11/12/13, VMware ESXi 5/6/7.

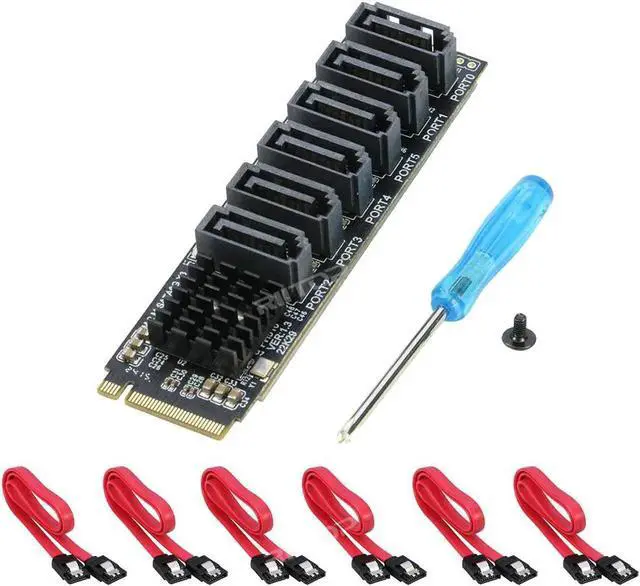

Package Includes:

1x M.2 M Key NVME to SATA3.0 6 Port Adapter Card.

6x SATA III Cables.

Screwdriver.

Screws.
