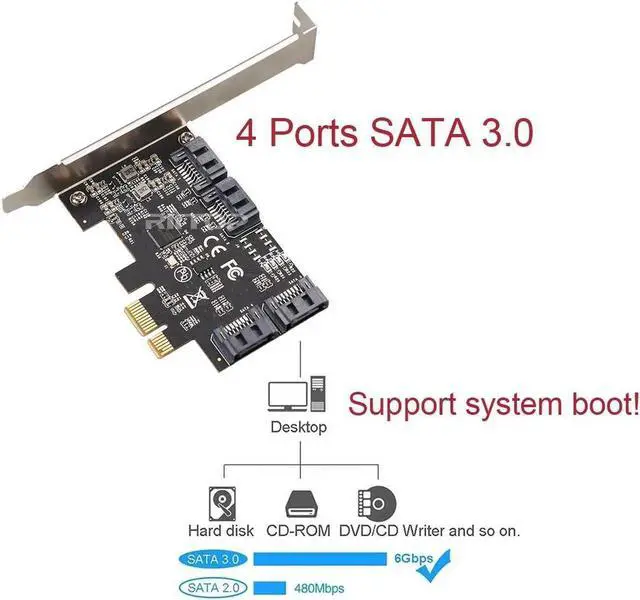

PCIe SATA Card 4 Port with 4 SATA 6G Cables and Low Profile Bracket, 6Gbps SATA3.0 Controller PCI-e Express Expansion Card, PCIe x1 or above, Support 4 SATA 3.0 Devices
- SATA Card 4 ports, supports sata 3.0 6Gbps, compatible with SATA I/II (1.5/3.0Gbps) for connecting 4 sata devices at the same time. Can be used as storage, and boot operating system/system hard drive.

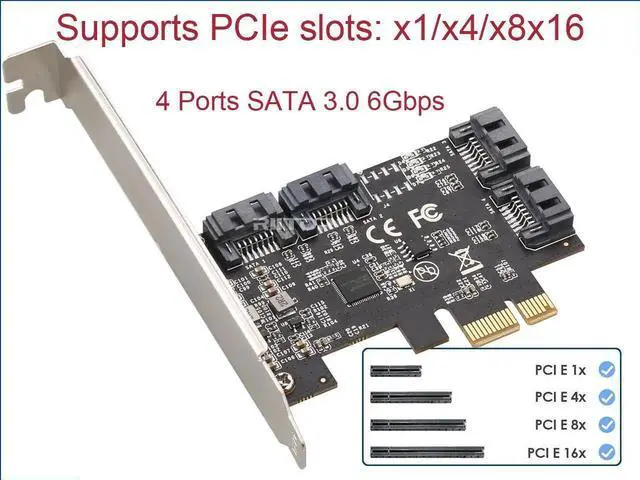

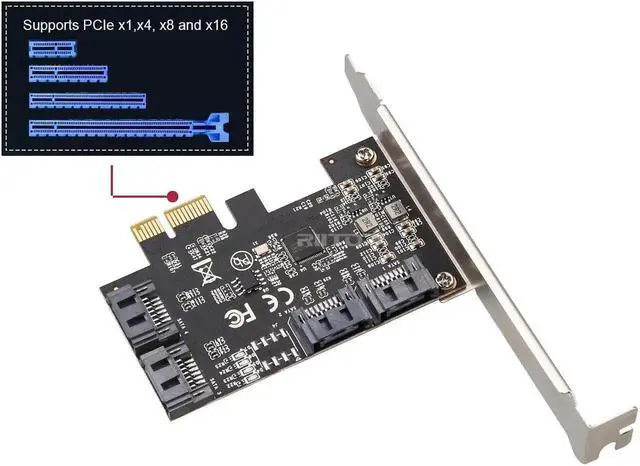

- Compatible for PCIe slot X1,X4,X8,X16, default with standard bracket, also include low profilce bracket, support multiple installation such as PC, server, workstation, NAS, etc.
- ASMedia ASM1064 chipset. Experience reduced error rates, ensuring reliable operation.
- Supports Windows 7/8/10, Windows Server 2008 R2/2012 R2/2016/2019, RHEL/CentOS 6/7/8, Debian 9/10/11, Ubuntu 16/18/20/21, SUES 11/12/15, FreeBSD 11/12/13, VMware ESXi 5/6/7.
- You can set up a storage pool, or configure Software RAID in Windows/Mac OS/Linux. (Noted: Can not support Hardware RAID).
- Each SATA 3.0 port will get 6Gbps max speed for AHCI boot and storage. (NOT support hot swaping!).

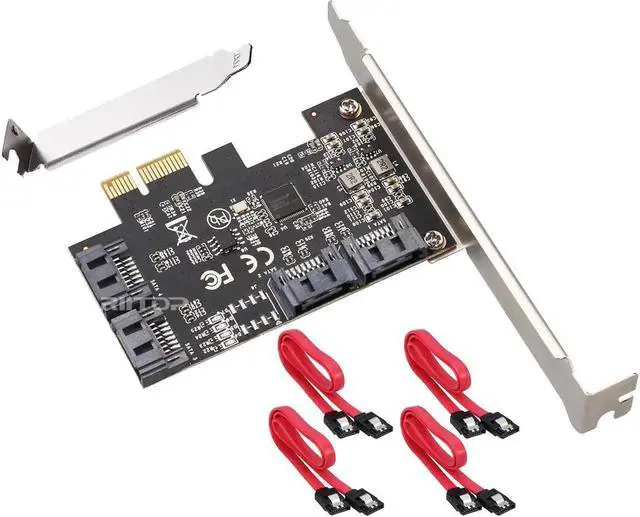

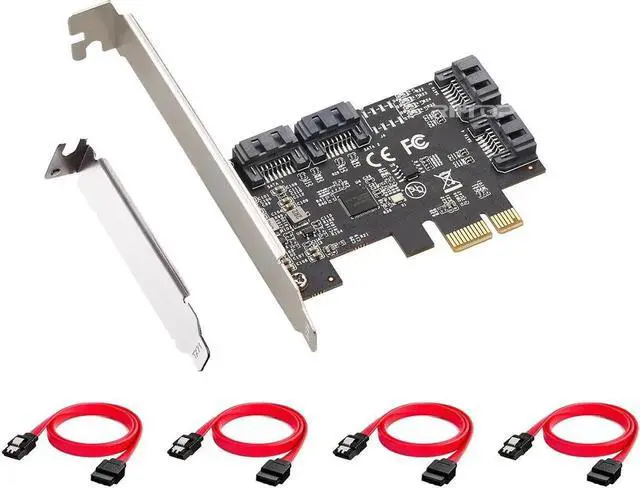

- Package includes: 1 x PCI-E to 4-port sata Adapter, 4 x SATA3 Cables(50cm), 1 x Low-Profile Bracket.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features:
AHCI SATA III (6 Gbps) ports through PCI Express x1.
Fully compliant with SATA 3.0 specifications and backward compatible with SATA I/II (1.5/3.0Gbps).
Compliant with PCI Express 3.0 standards.
Port Multiplier Command-based switching supported.
Natively supported single chipset design.
Support Native Command Queuing (NCQ).
Support SSC for both PCIe and SATA.
LED Indicators: HDD Activity.
Support Low Profile/Half-Height bracket installationt.
Specification:
Chipset: ASMedia ASM1064.
Bus Type: PCI Express x1.
Card Type: Standard / Low Profile.
Interface: SATA.
Ports:4.
Bootable: Yes.
Hot Swap Capability: Yes.
Port Multiplier: Yes.
Type and Rate: SATA III (6 Gbps).
Connector Type(s): PCI Express x1 Male.
Internal Ports: SATA (7 pin, Data) Plug.
System and Cable Requirements:
PCI Express enabled computer with an available PCI Express x1, x4, x8 or x16 slot.
Supports Windows 7/8/10, Windows Server 2008 R2/2012 R2/2016/2019, RHEL/CentOS 6/7/8, Debian 9/10/11, Ubuntu 16/18/20/21, SUES 11/12/15, FreeBSD 11/12/13, VMware ESXi 5/6/7.
Package Includes:
1x PCI-E to 4-port Adapter,
4x SATA 6G Cables(50cm),
1x Low-Profile Bracket.
