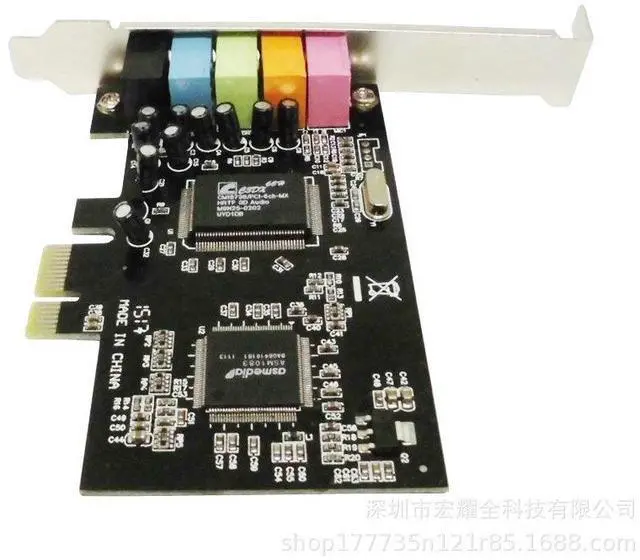

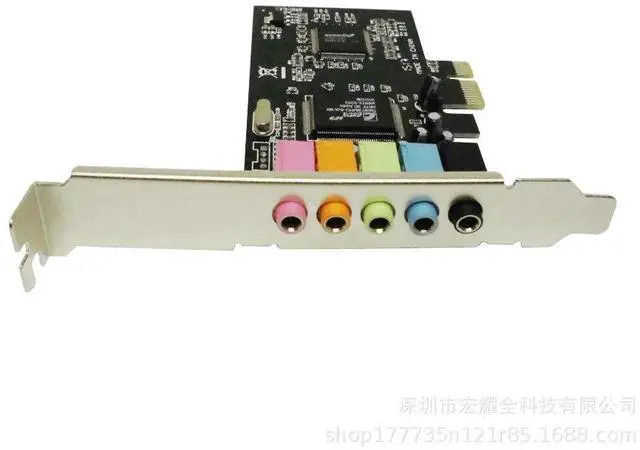

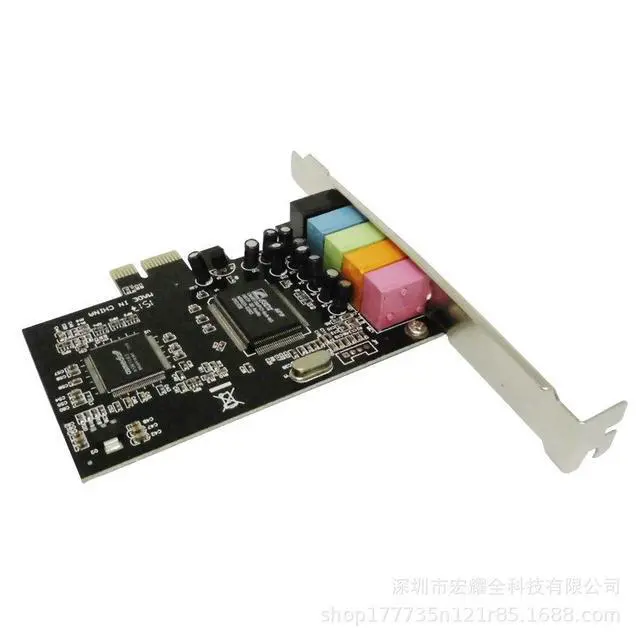

The CMI8738 5.1 multi-channel audio chip is used in the PCI-e sound card. It features a PCI-Express bus slot, supports 6-channel surround sound output, supports DLS sound library technology, supports A3D 1.0 and DS3D, and is compatible with DirectSound 3D and EAX audio effects. It supports 24-bit SPDIF OUT and SPDIF IN (optional), providing a surround sound field and clear sound quality, suitable for home theaters, large 3D games, music appreciation, karaoke and other entertainment.
Product Specifications:
1. Full-duplex 5.1-channel PCI-Express sound card
2. Uses VIA VT1723 Envy24D multi-channel audio chip
3. Complies with PCI-Express x1 specification revision 1.1
4. Complies with AC'97 specification revision 2.3
5. Sound sampling rate: 24-bit, 48 KHz, supports playback and recording

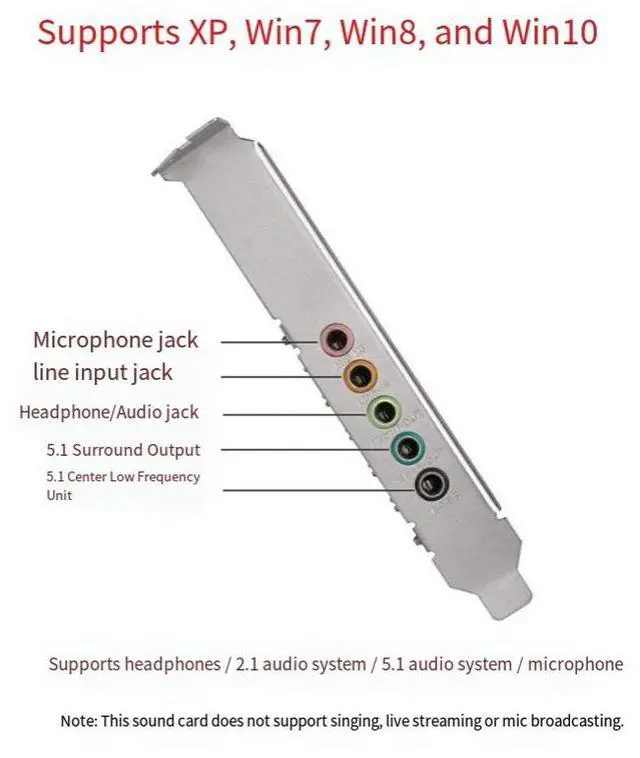

6. Supports front L/R, surround L/R, Centre/Subwoofer, S/PDIF-Out
7. Optional sub-card supports rear surround L/R, linear input L/R, mono Mic-In, S/PDIF-In
8. Noise balance elimination function is enabled when the PC power is off or on
System Requirements:
The operating system supports MSWin10/Windows 7/Vista/XP/Server 2003-2008 (32/64-bit), 2000, ME, 98SE. PCs with PCI-Express slots are included.
