Computer Power Supply Tester, ATX Power Supply Diagnostic Tester, PC Power Supply Tester for Desktop Computer
Limited time offer, ends 04/26 By ElectroWorks JV
- Product Introduction

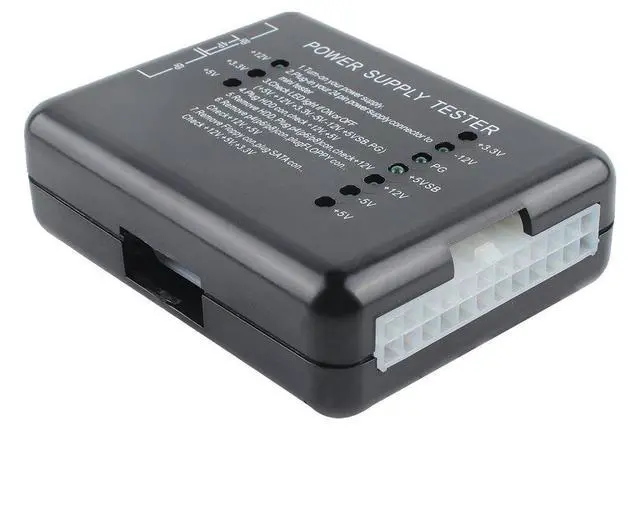

- The chassis power tester is a powerful power detection device that can test ATX, BTX and ITX computer power supplies, and can display the voltages of each group as well as the PG value. It is a tool for quickly detecting computer power supplies.
- Operation method
- Supply power to the device under test.
- 2. Insert the 24P (20P) plug of the device to be tested into the corresponding 24P (20P) socket of the power tester.

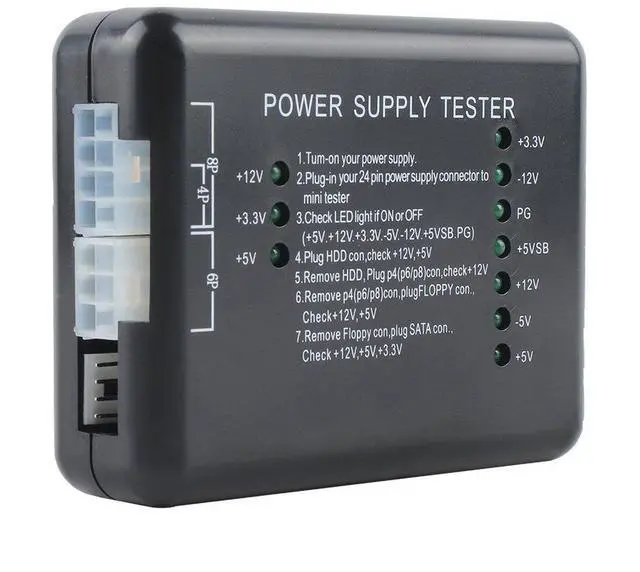

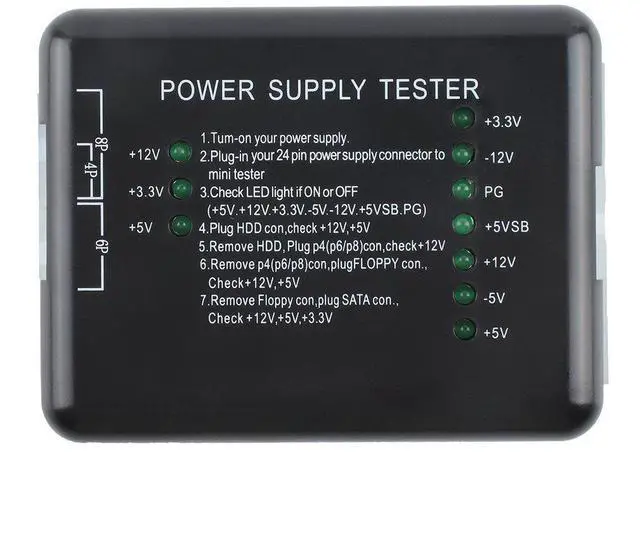

- 3. Check if the seven lights on the right ( +3.3V, -12V, PG, +5VSB, +12V, -5V, +5V ) are all on. A full-on state is preferable.
- 4. Insert the HDD plug of the device to be tested into the HDD socket of the power tester. Check if the two lights on the left (+12V and +5V) are on. They should all be on for a successful test.
- 5. Remove the HDD plug from the power tester, then insert the P4 (P6/P8) plug into the corresponding P4 (P6/P8) socket. Check if the light on the left (+12V) is on. If it is on, it indicates a successful connection.
- 6. Remove the P4 (P6/P8) plug from the power tester, then insert the FLOPPY plug into the corresponding FLOPPY socket. Check if the two left lights (+12V, +5V) are on. They should be fully illuminated for a successful operation.
- 7. Remove the FLOPPY plug from the power tester and insert the SATA plug into the corresponding SATA socket. Check if the three lights on the left (+12V, +3.3V, +5V) are on. All on is ideal.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Input port: 20/24-pin (ATX connector)
Voltage detection: +12V, -12V, +5V, -5V, +3.3V, 5V. Standby (SB) 12V, power Good (PG)
Connection ports: Floppy, HDD, CDROM, SATA, 4 pin (P4), 8 pin (Dual-CPU), 6 pin (PCI-Express)
