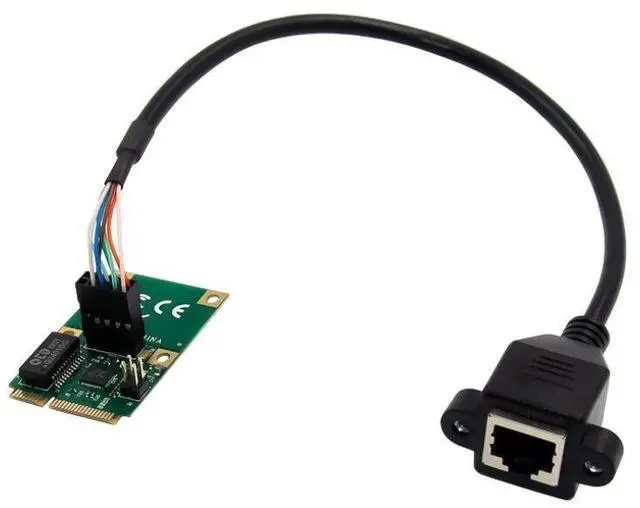

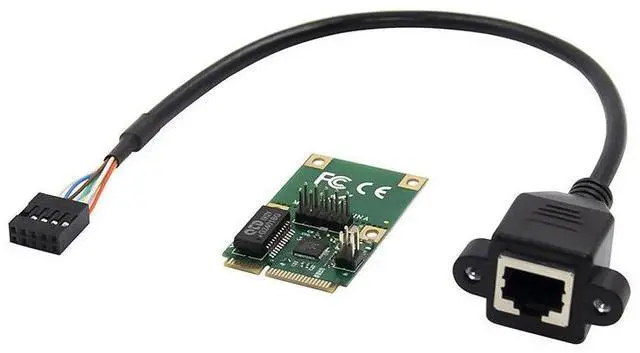

mPCIe Mini PCIe Gigabit Ethernet Card for Desktop PC, Mini Full Height / Half Height, 1000M Wired RJ45 LAN Adapter
- Technical Specifications
- Applicable network: Gigabit Ethernet server
- Main chipset: Realtek RTL8111F
- Bus type: Mini PCIe
- Media interface: 1 x RJ45, copper cable
- Transmission rate: 10/100/1000 Mbps (Data rate auto-negotiation operation)
- High-performance 1000BASE-T Ethernet controller card, backward compatible with 10/100BASE-T networks
- Network topology: Fully compliant with IEEE 802.3, 802.3u, 802.3ab
- Supports full-duplex flow control (IEEE 802.3x)
- Supports 2nd layer priority encoding of IEEE 802.1P
- Supports VLAN tagging of IEEE 802.1Q
- Management function: Support for IPv4 and IPv6 checksum offloading
- The receiving side scaling (RSS) with two hardware receive queues
- Supports 9k-byte large frames
- Cross-checking and automatic correction operations
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

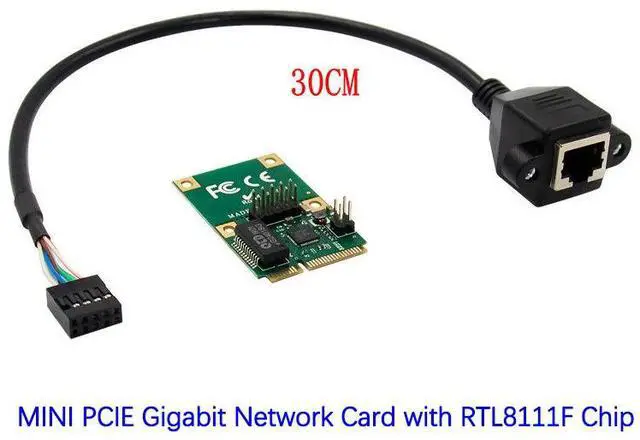

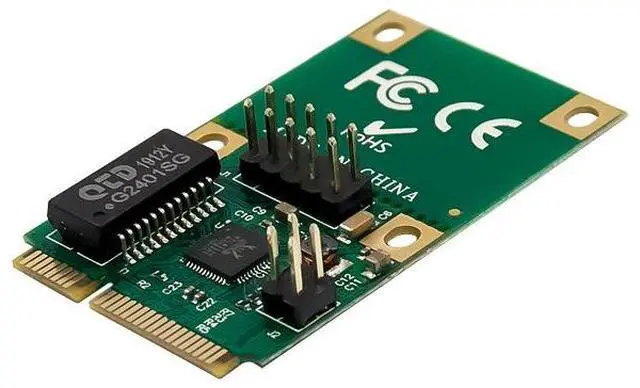

The Mini PCIe RTL8111F Gigabit network card is a high-performance 10/100/1000M BASE-T Ethernet LAN controller.
It supports the IEEE 802.3u standard for 10/100Mbps Ethernet and the IEEE 802.3ab standard for 1000Mbps Ethernet.
Supports the automatic detection function of auxiliary power supply, and will automatically configure the relevant bits of the PCI power management register in the PCI configuration space.
mini PCIe
Single-channel (x1) PCIe, with a throughput of up to 2.5 Gbps
- Compatible with the revised version 1.2 of the mini PCIe card mechanical specification
- Compatible with the size of half/full-sized mini PCIe card types
- Compliant with the revised version 1.1 of the PCIe basic specification
- Plug-and-play
Operating Systems:
- Windows ME / 98SE / 2000 / XP / Vista / Windows 7 / Windows 8 / Windows 10 (32-bit & 64-bit)
- Windows Server 2003 / Server 2008 / Server 2012 (32-bit & 64-bit)
- Linux
- DOS
- Mac OS X 10.4.X or later
Hardware Requirement:
- One available Mini PCIe slot
