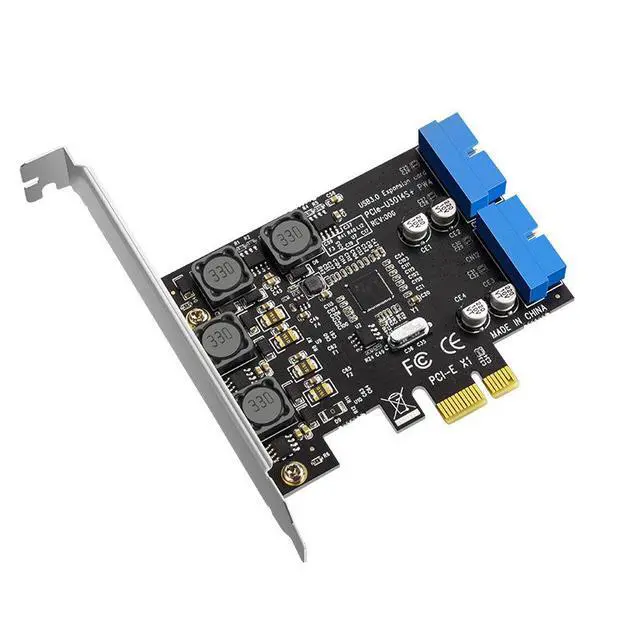

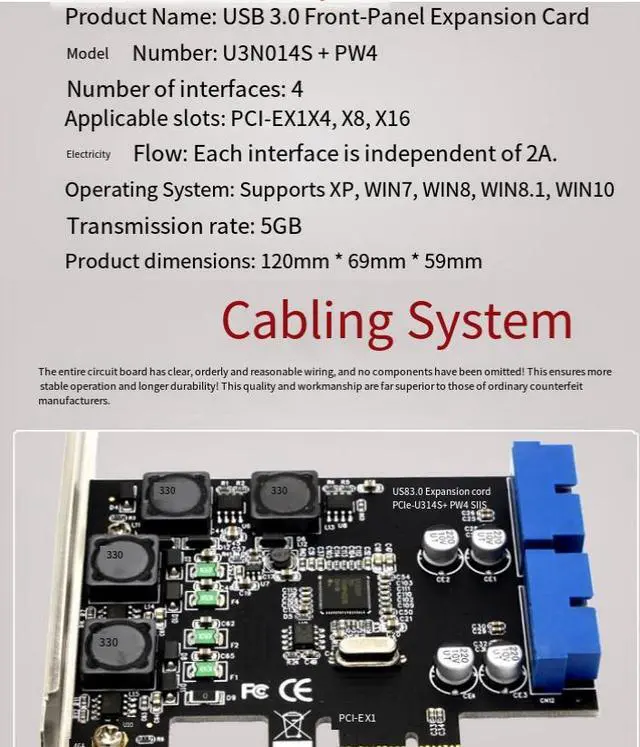

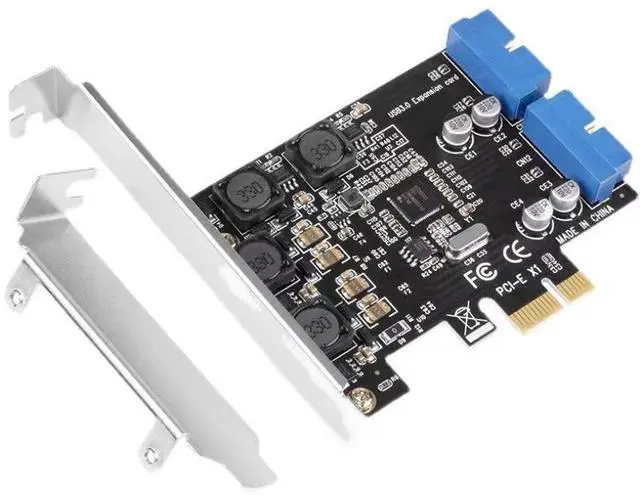

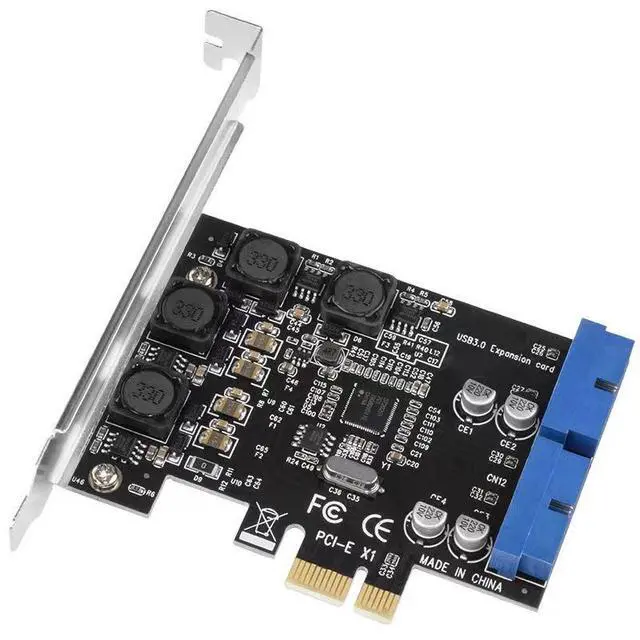

Desktop USB 3.0 Expansion Card PCIe to Front Panel USB 3.0 Adapter, 19/20-Pin Internal Header VIA Chip
- Upgrade Older Motherboards: Add front panel USB 3.0 header to motherboards without one.
- Dual Chipset Options: NEC (¥60) or VIA (¥55) choose based on your performance & budget needs.
- Standard 19/20-Pin Header: Compatible with most PC case front panel USB 3.0 cables.

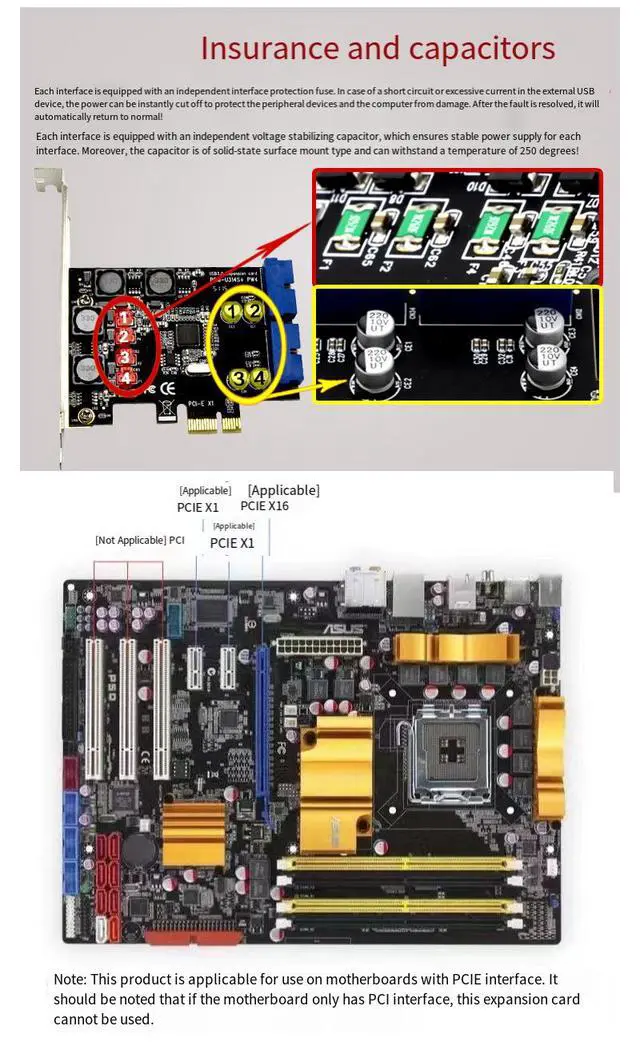

- PCIe Interface: PCI Express x1 (compatible with x4/x8/x16) easy installation.
- 5Gbps High Speed: USB 3.0 SuperSpeed 10x faster than USB 2.0.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

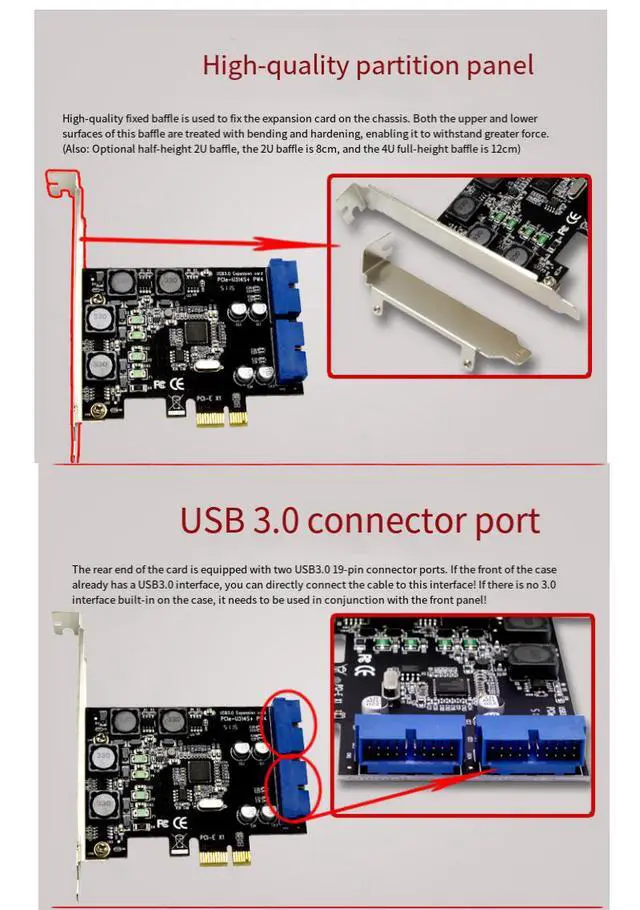

3. Standard 19/20Pin Interface
Built-in standard USB 3.0 19/20Pin slot
Compatible with most computer cases, this front USB 3.0 data cable.
The plug is equipped with a foolproof design. There is only one installation direction and it will not be inserted in the wrong way.

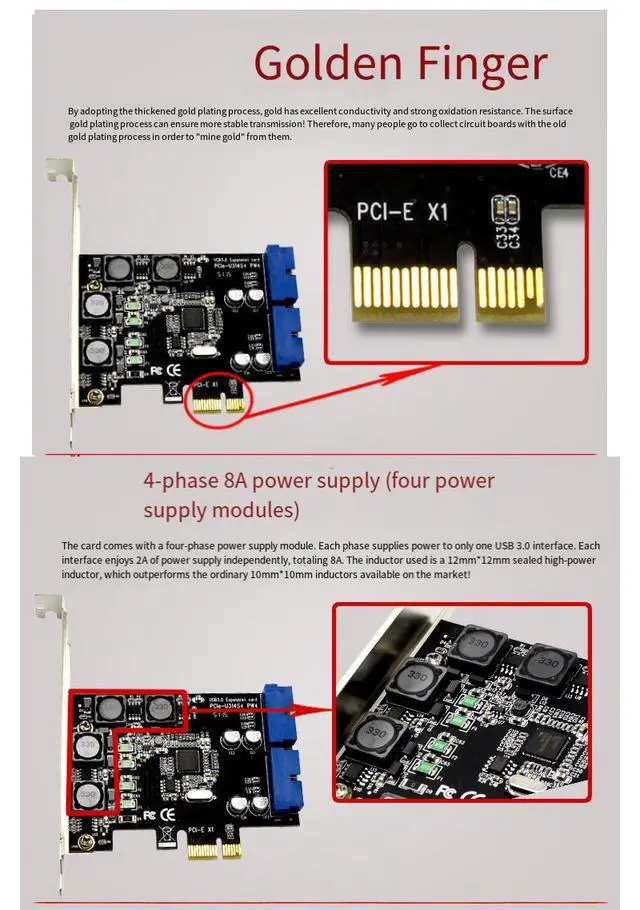

4. PCIe interface, plug-and-play
Parameters Explanation
Interface type PCI Express x1
Slot compatibility x1 / x4 / x8 / x16 can all be inserted
Driver method Windows 10/11 auto-identification without driver installation
Power supply method Power is taken from the PCIe slot, no external connection required
5. High-speed transmission, experience upgrade
USB 3.0 theoretical transmission rate 5Gbps
The actual reading and writing speed can reach 300-400MB/s (depending on the device)
It is over 10 times faster than USB 2.0.
Suitable for high-speed USB drives, mobile hard drives, and fast file transfer from mobile phones, etc.
