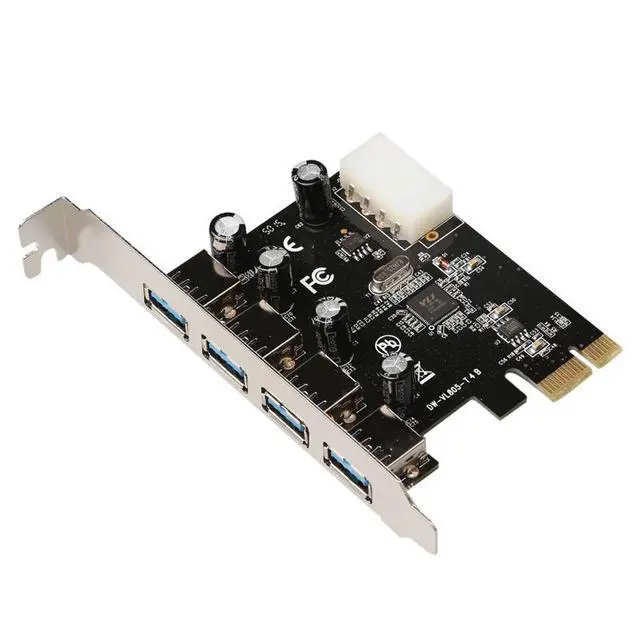

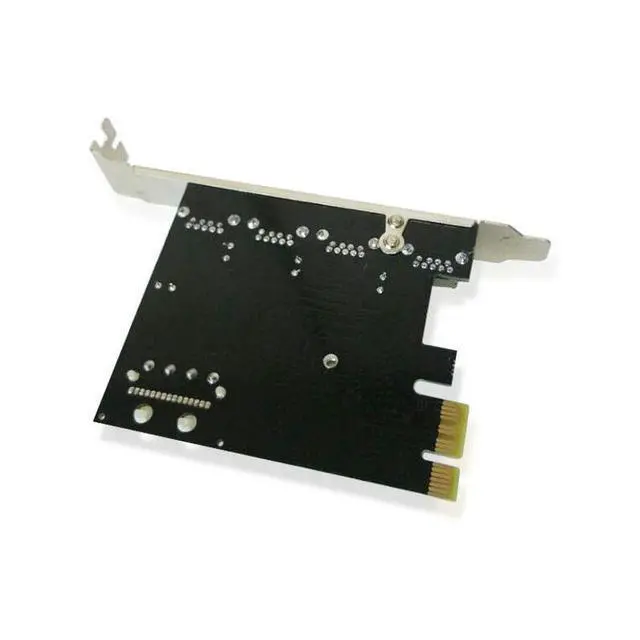

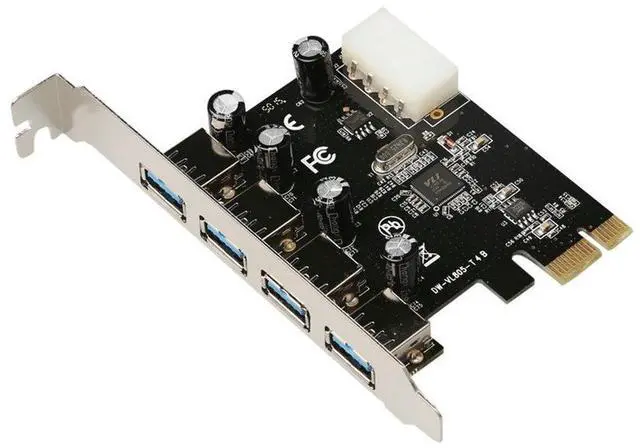

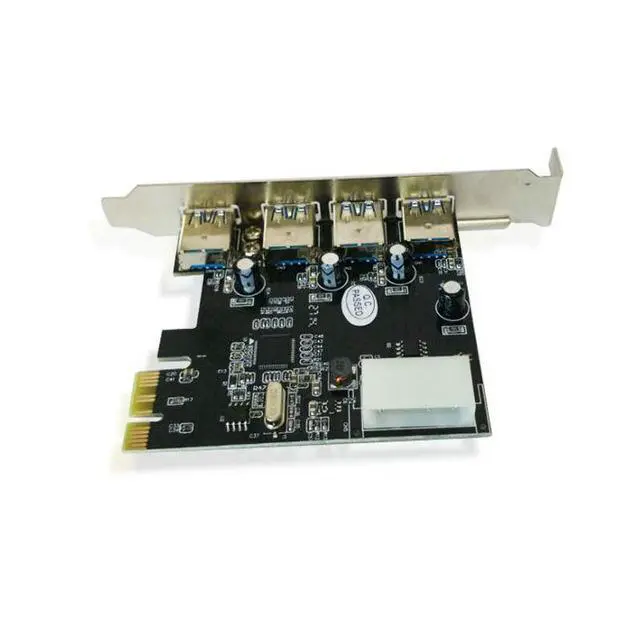

PCIe to 4-Port USB 3.0 Expansion Card Internal USB Hub Adapter for Desktop PC
- Product Introduction
- The ultra-high-speed USB3.0 interface is an I/O interconnection standard that will bring about the nextrevolution in bandwidth and functionality required by computers, consumer electronics and communicationdevices. With a throughput 10 times faster than the USB2.0 standard and backward compatibility with thefunctions of existing USB devices, the USB3.0 interface will be the new trend in IT technology.
- This board supports high-speed USB3.0 devices and is backward compatible with current USB2.0high-speed and USB1.1 full-speed devices. It is an ideal choice for external storage devices, MP3players, external DVD burners, card readers, digital cameras, cameras, network video equipment,and all other USB devices.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product features
Fully compliant with the PCI Express Basic Specification Version 2.0 RevisionThe throughput rate of the single-channel (X1) PCI Express is 5 Gbps.Compliant with the Universal Serial Bus 3.0 specification, version 1.0, revision 1Supports the simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devicesSupport the following data transmission rates: low speed (1.5Mbps), full speed(12Mbps), high-speed transmission (480Mbps), and ultra-high speed (5Gbps).
Compliant with Intel's scalable host controller interface (xHCI)specification 0.96, it supports four downstream ports of all speeds.
Itis equipped with a4-pin powerconnector, which enables you toconnect/disconnect the device through the hot-swappable function ofthe additionalpowersystem. This allows you to connect/disconnect thedevice without shuttingdown the system, and it supports WindowsXP/Nista/7 systems (32/64-bit).
System Requirements: Windows XP/Vista/7 operating system (32-bit/64-bit)An available PCI Express slot (recommended PCI Express 2.0)
Basic Parameters>
* Chip: NEC 720101F1 (BGA)
* Supports PCI 32-bit bus with a bus speed of 33 MHz, PCI standard version 2.2 * Supports PCI bus main channel Compatible with plug-and-play functionality
USB 2.0 interface: Compliant with the revised version of the Universal Serial Bus (USB) specification 2.0, the revised version of the Enhanced Host Controller Interface (EHCI) specification 1.0, compatible with the revised version of the Universal Host Controller Interface (UHCI) specification 1.1, and backward compatible with the USB 1.1 specification.
*Data transmission rate: High-speed 480 Mbps. (Theoretical value) Full-speed 12 Mbps, Low-speed 1.5 Mbps;* It can support up to 127 USB devices for connection, and each USB interface can handle it independently;* External ports: USBx4, Internal ports: USB-A/Pinx1; *System Requirements:
There is at least one available 32-bit PCI slot on the personal computer. Supported operating systems: Windows 98SE/Me/2000/XP/NT 4.0/XP 64-bit/Vista, Linux, Mac
